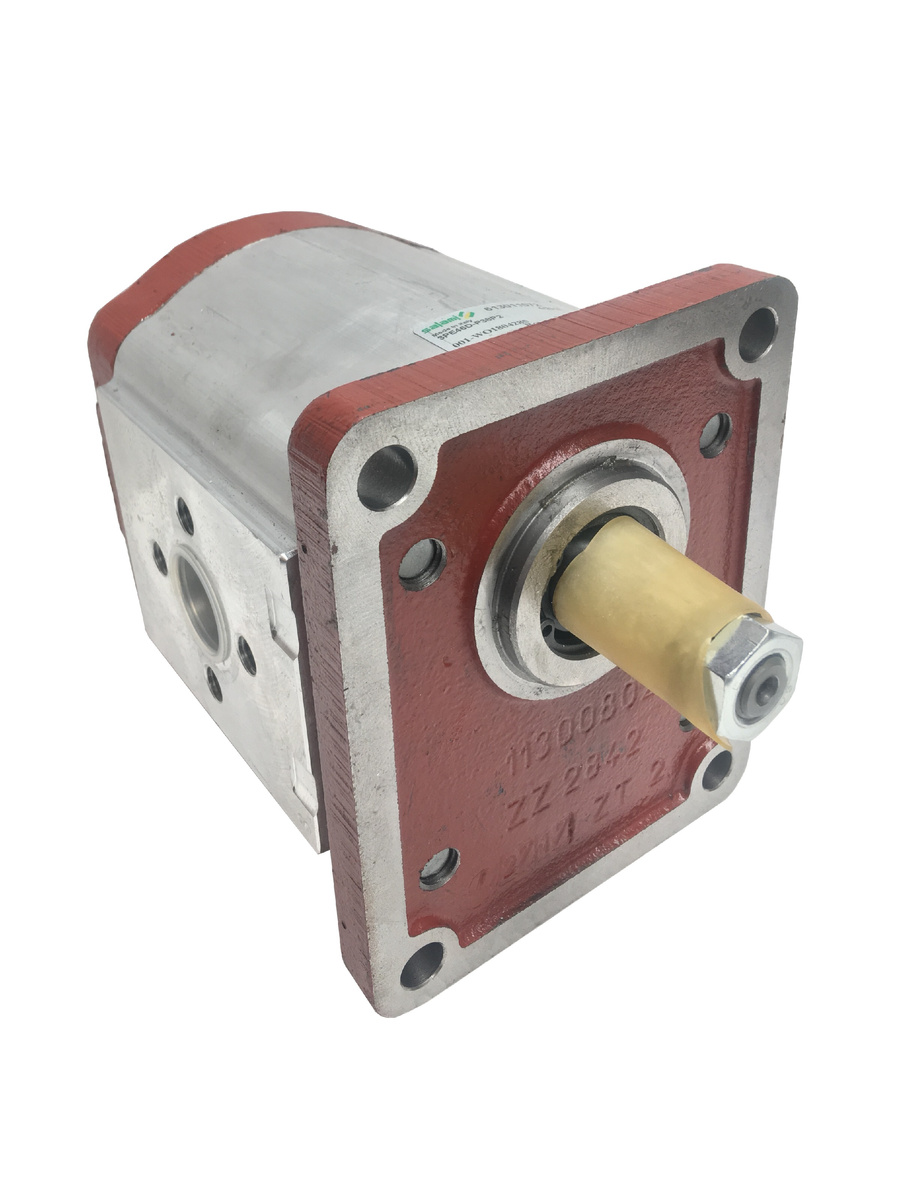

Aluminum gear pump, group 1, 1.5PE2.1D(S)18P0 European type
e-mailagro@hewea.com
Aluminum gear pump, group 1, 1.5PE2.1D(S)18P0 European type
- Aluminum gear pump for industrial and agricultural applications from Italian company Salami.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Salami aluminum gear pump group 1 with working volume 2.1 - direction of rotation clockwise or counterclockwise (selectable) with European and cone wheel (1:8) shaft: 1.5PE2,1D(S)18P0
BASIC DATA
| Geometric working volume | 2.1 cm3/rev. |
| Maximum working pressure |
250 bar |
| Instantaneous working pressure |
270 bar |
| Direction of rotation¹ | clockwise or counter-clockwise |
| Maximum speed (continuous) | 4500 rpm |
| Minimum speed |
700 rpm |

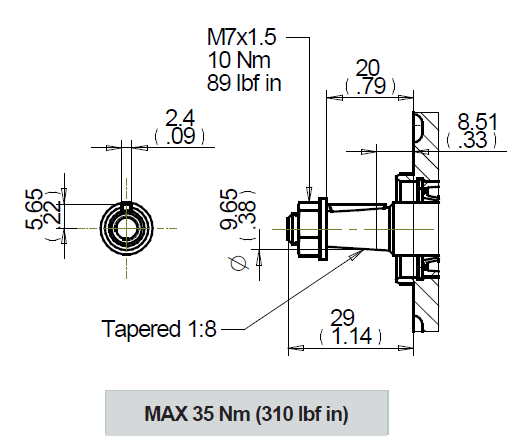

| Shaft drive | 1:8 taper, M14 x 1.5 |
| Mounting flange | industry, European |
| Typical application | agriculture |
| Country of origin | Italy |
| Manufacturer's website | www.salami.it |
SUPPLEMENTARY INFORMATION
| Own weight | |
| Temperafront loader oil operation (permissible range) | -15÷85° C |
| Recommended oil viscosity² | 17÷65 cSt |
| Axial length after installation | 82.90 mm |

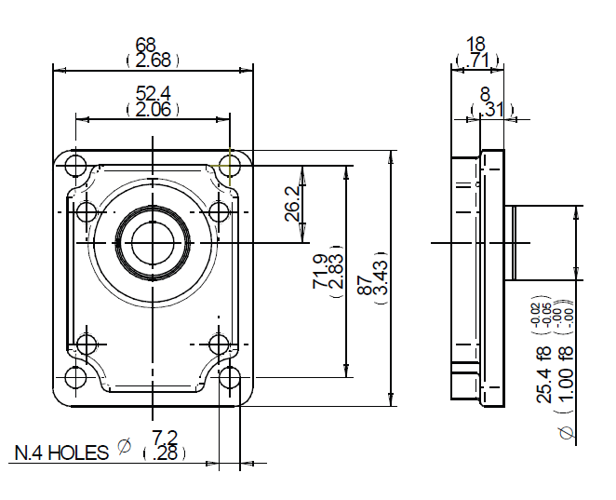

| Cross section | 87 x 68 mm |
| Connections | (see diagram) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
Note: The technical and operational parameters of the product given above are for information purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
