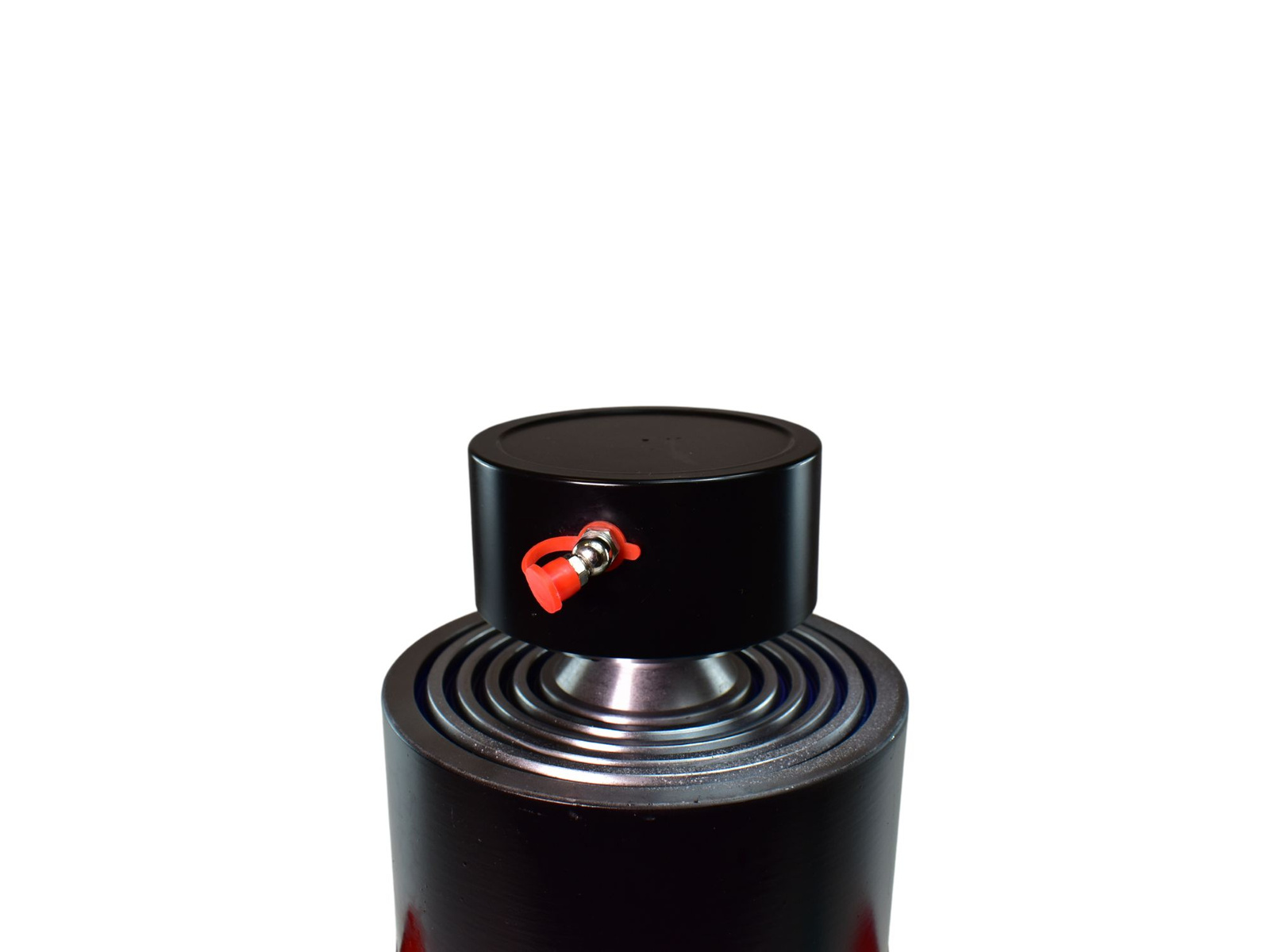

Underbody Cylinder PRESKO with an extension of 1435mm, 5-stages, lifting capacity of 12 tons, chrome-plated sections.

Underbody Cylinder PRESKO with an extension of 1435mm, 5-stages, lifting capacity of 12 tons, chrome-plated sections.

Underbody Cylinder PRESKO with an extension of 1435mm, 5-stages, lifting capacity of 12 tons, chrome-plated sections.

Underbody Cylinder PRESKO with an extension of 1435mm, 5-stages, lifting capacity of 12 tons, chrome-plated sections.

HIGH QUALITY Cylinder PRESKO.

Cylinder telescopic, 5 sections. Each section covered with a layer of chrome. Cylinder ideally suited for installation of larger dump trucks of 12-15 DMC, and agricultural trailers.

BASIC DATA

Tipping capacity: 8-15 T
Maximum working pressure: 160 bar
Stroke: 1435mm
Number of members: 5
Temperafront loader oil operation (permissible range): -40÷100° C
Outside diameter: 142mm
Height after folding: 467mm
Mounting pin spacing: 165mm
Typical application: dump truck
Telescope finish: Chrome

Mounting suitable for cylinder:

A70045001

A60045001

Cradle matching cylinder:

A5L080001

To download

Zasoby dotyczące bezpieczeństwa i produktów

Brand

PRESKO

Entity responsible for this product in the EU

HeweaSp. z o.o.More

ProducerHeweaSp. z o.o.Address: Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com

Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress: Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska

Symbol

12051435

Producer code

12051435

Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.

Ask a question

Write your opinion

Underbody Cylinder PRESKO with an extension of 1435mm, 5-stages, lifting capacity of 12 tons, chrome-plated sections.

Product sold out

Underbody Cylinder PRESKO with an extension of 1435mm, 5-stages, lifting capacity of 12 tons, chrome-plated sections.

HIGH QUALITY Cylinder PRESKO.

Cylinder telescopic, 5 sections. Each section covered with a layer of chrome. Cylinder ideally suited for installation of larger dump trucks of 12-15 DMC, and agricultural trailers.
