Underbody Cylinder PRESKO with an extension of 1549 mm, 6-stages, lifting capacity of 15 tons, replacement cylinder HYVA UMB 149-6-1540

HIGH QUALITY Cylinder PRESKO.

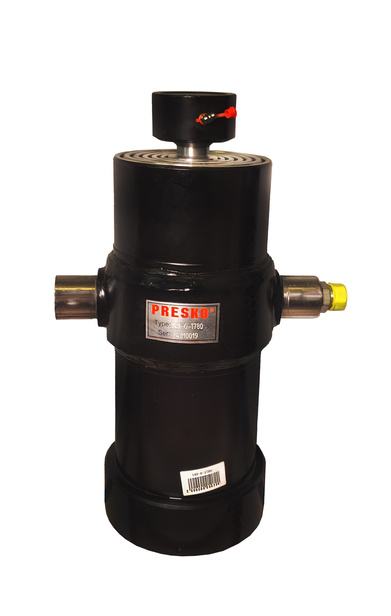

Cylinder telescopic, 6-section. Each section covered with a layer of chrome. Cylinder ideally suited for installation in larger dump trucks and farm trailers.

Advantages of PRESKO Cylinders:

chrome-plated sections resistant to weather conditions;
best price/quality ratio;
proven in harsh working conditions

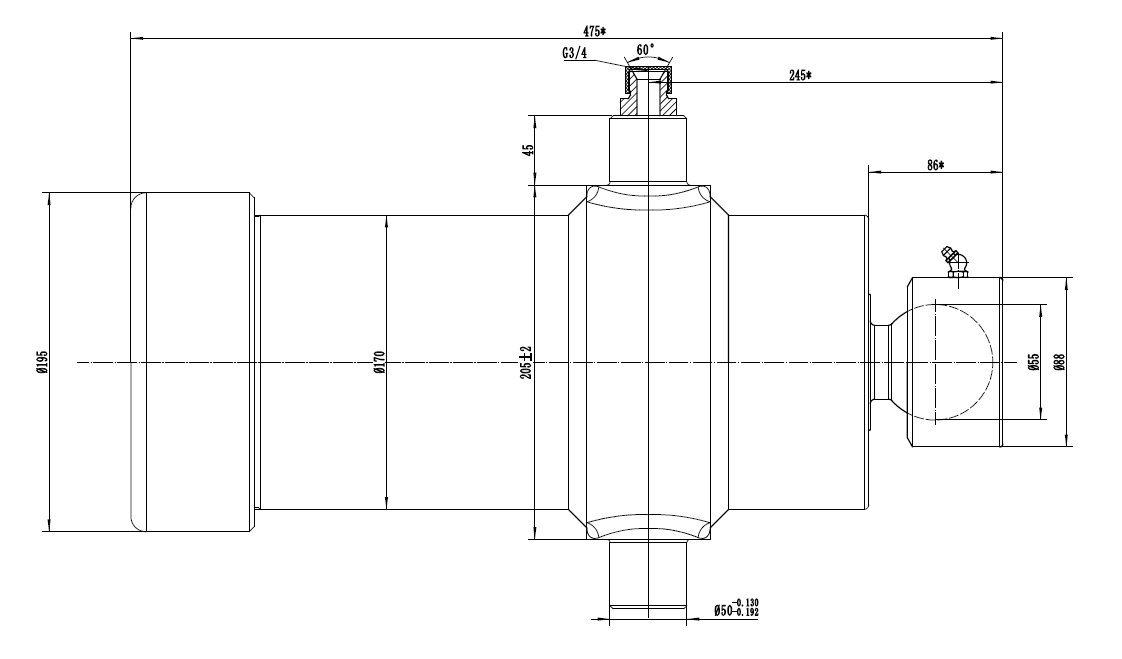

BASIC DATA
- Tipping capacity: 15 T
- Maximum operating pressure: 190 bar
- Stroke: 1540 mm
- Number of members:
- Temperafront loader oil operating temperature (permissible range): -40÷100° C
- Outside diameter: 170 mm
- Height after folding: 475 mm
- Arbor spacing: 205 mm
- Typical application: dump truck
- Telescope finish: Chrome
Mounting to fit cylinder:

A70050001

A60050001

Cradle to fit cylinder:

A504CH
