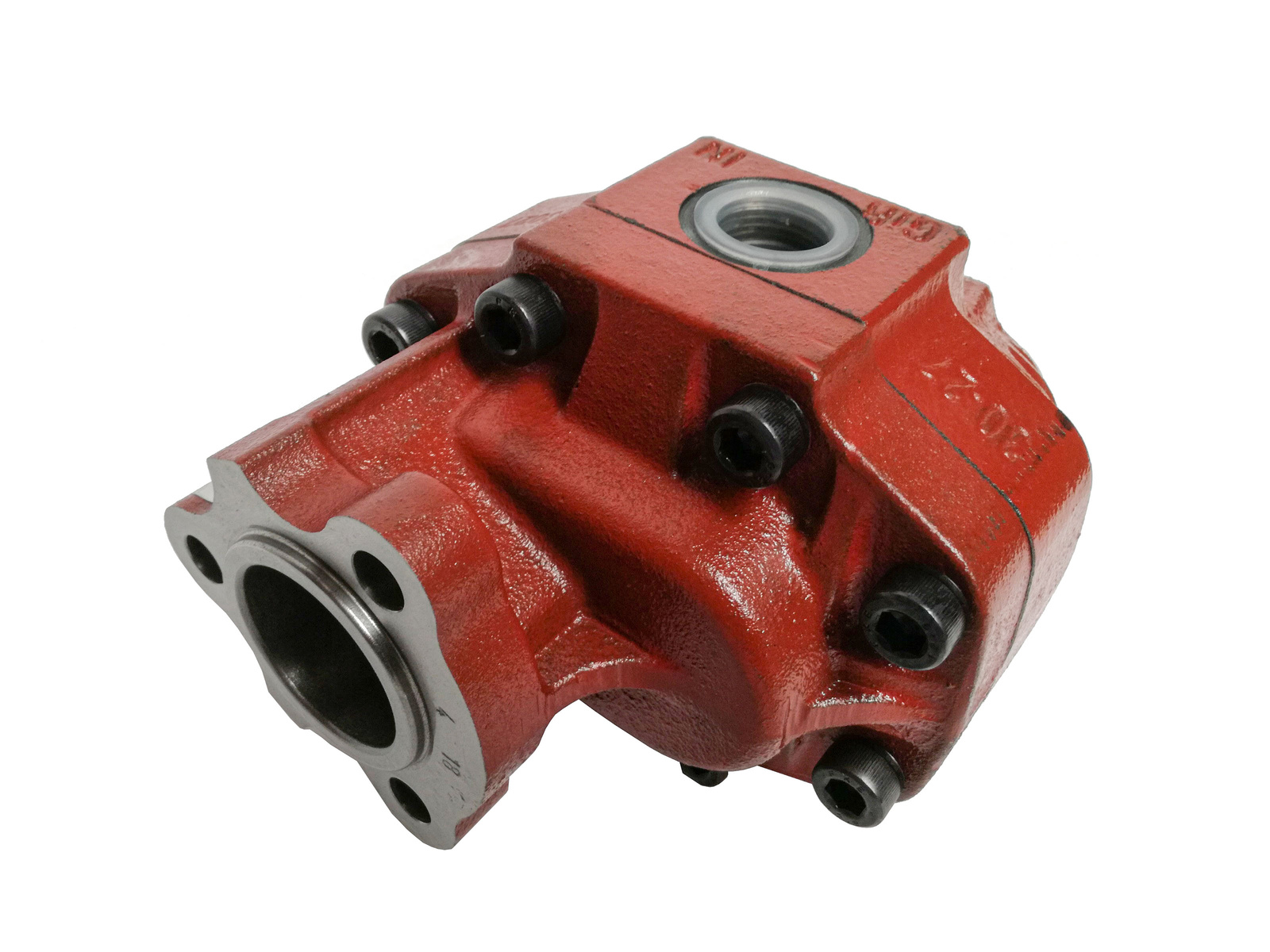

Gear pump, LIWA 17, right-hand drive, UNI, 22238017
Gear pump, LIWA 17, right-hand drive, UNI, 22238017
- LIWA external gear pump, type 17, with a flow rate of 17.20 l/min (at 1000 rpm), right-hand rotation¹, with shaft according to UNI 21-222 (3 holes).
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NOT SURE WHAT THE DIRECTION OF ROTATION OF YOUR PUMP IS? CHECK HERE
LIWA external gear pump, type 17, with a flow rate of 17.20 l/min (at 1000 rpm), with right-hand direction of rotation¹, with shaft according to UNI 21-222 (3 holes).
BASIC DATA
| Geometric working volume | 17.20 cm3/rev. |
| Flow capacity (at 1000 rpm) | 17.20 l/min |
| Maximum working pressure (continuous) | 300 bar |
| Direction of rotation¹ | clockwise |
| Maximum speed (continuous) | 2800 rpm |
| Minimum speed (continuous) | |
| Shaft drive | B13×19×22, UNI (DIN 5482) |
| Mounting flange | according to UNI (3 holes) |
| Typical application | trucks |
| Country of origin | Front loadercition |
| Manufacturer's website | www.liwahydraulic.com |
SUPPLEMENTARY INFORMATION
| Torque (at maximum pressure) | |
| Own weight | 10 kg |
| Temperafront loader oil operation (permissible range) |
|
| Recommended oil viscosity² | |
| Axial length after installation | |
| Cross section | |
| Suction connection | g ¾" female thread (according to BSPP³) |
| Discharge connection |
g ½" female thread (according to BSPP³) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
