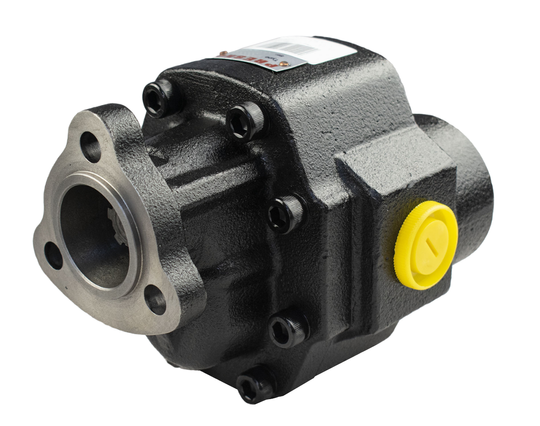

Gear pump, PRESKO ZL30.3, bi-directional, UNI
- PRESKO external gear pump, with a flow rate of 30 l/min (at 1000 rpm), with uNIversal direction of rotation¹, with shaft according to UNI 21-222 (3 holes)
PRESKO gear pump with socket UNI with a flow capacity of 30l/min (at 1000 rpm), with uNIversatile direction of rotation (bi-directional)
Designed to work with power take-off in mobile hydraulics as well as in industry.
The reinforced design of the pump gives it adequate strength and durability.
The pump is used in tipping kits, hook and gantry equipment, trailers, roadside assistance, auto-rickshaws, basket lifts. hds
Advantages of PRESKO pumps:
- uNIversal rotation;
- 250bar continuous pressure;
- proven in harsh working conditions.
Warranty: 12m-cycles
BASIC DATA
- Geometric working volume: 30.00 cm3/rev.
- Flow capacity (at 1000 rpm): 30.00 l/min
- Maximum working pressure (continuous): 250 bar
- Direction of rotation¹: uNIversal
- Maximum speed (continuous): 2000 rpm
- Minimum speed (continuous):
- Shaft drive: 6×20×25 UNI 21-222
- Mounting flange: according to UNI 21-222 (3 holes)
- Typical application: trucks
SUPPLEMENTARY INFORMATION
- Suction connection: female thread G ¾" (according to BSPP³)
- Discharge connection: female thread G ¾" (according to BSPP³)
1- right-side pump
2- left-hand pump
A - suction
B - discharge
Similar to:
200FZ0027D0 200FZ0027S0 200FZ0036D0 200FV0036S0 200BPS02800 200BPS03200 200HPS025D0 200HPS025S0 3.1.2.3.036.X.0.X.0 3.1.2.5.025.X.0.0.0 3.1.58.028.0.0.0.0 3.1.58.032.0.0.0.0 22139025 22139032 10500300255 10500300264 10500300326 10500300335 10500320322 10500320331 10500410323 10500420321 10500440327 10505000329 10505000338 10501100344 10501100353
Note: The technical and operational parameters of the product listed above are not complete data and are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product provided by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab.
