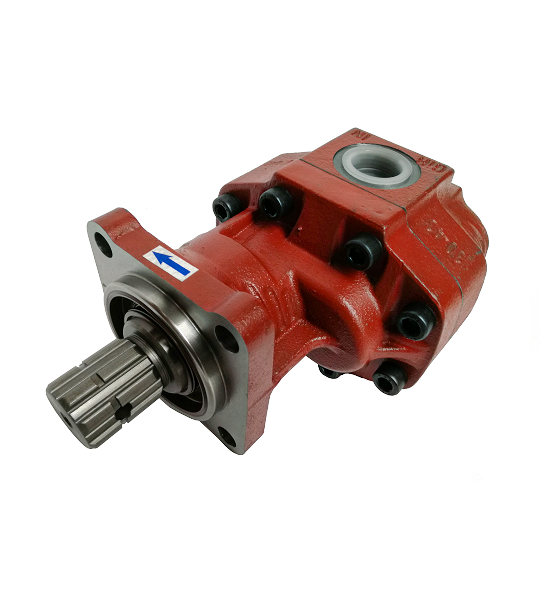

LIWA Gear pump, type 61, clockwise rotation, ISO, 22248061

LIWA Gear pump, type 61, clockwise rotation, ISO, 22248061

  • LIWAGear pump , type 61, displacement 61,90 cm3/rev. , with clockwise rotation¹and flange type - ISO 14:1982 (DIN 5462).
258,27 € - 272,96 €
incl. VAT / item
Regular price / item
of
Out of stock, delivery soon
Out of stock, delivery soon
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from €11.58 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order €11.58 are for free.
Free delivery includes parcel delivery to a parcel machine
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

NIE WIESZ JAKI JEST KIERUNEK OBROTÓW TWOJEJ POMPY? SPRAWDŹ TUTAJ

Pompa zębata o zazębieniu zewnętrznym LIWA, typ 61, o wydajności przepływu 61,90 l/min (przy 1000 obr./min), o prawoskrętnym kierunku obrotów¹, z czopem wału wg normy ISO 14:1982 (DIN 5462).

DANE PODSTAWOWE

Geometryczna objętość robocza 61,90 cm3/obr.
Wydajność przepływu (przy 1000 obr./min) 61,90 l/min
Maksymalne ciśnienie pracy (ciągłe) 220 bar
Kierunek obrotów¹ prawoskrętny
Maksymalna prędkość obrotowa (ciągła) 2000 obr./min
Minimalna prędkość obrotowa

Czop wału napędowego

B8×32×36 ISO 14:1982 (DIN 5462)

Kołnierz montażowy wg normy ISO 7653:1985
Typowe zastosowanie samochody ciężarowe
Kraj pochodzenia Turcja
Strona internetowa producenta www.liwahydraulic.com

INFORMACJE UZUPEŁNIAJĄCE

Moment obrotowy (przy maksymalnym ciśnieniu)
Masa własna 13,5 kg
Temperatura pracy oleju (zakres dopuszczalny)


Zalecana lepkość oleju²
Długość osiowa po zamontowaniu
Przekrój poprzeczny
Przyłącze ssawne gwint wewnętrzny G 1" (wg BSPP³)
Przyłącze tłoczne gwint wewnętrzny G ¾" (wg BSPP³)

  1. Kierunek obrotów określa się patrząc na pompę od strony czopa wału. Kierunek prawoskrętny – zgodny z kierunkiem obrotu wskazówek zegara, kierunek lewoskrętny – przeciwny do kierunku obrotu wskazówek zegara. Uruchomienie pompy przy niewłaściwym kierunku obrotów może spowodować jej uszkodzenie.
  2. Pompa nie jest przystosowana do pracy przy zastosowaniu emulsji olejowo-wodnych (HFA, HFB, HFC) i syntetycznych cieczy hydraulicznych niebędących olejami (HFD) – wg V Raportu Europejskiej Komisji Bezpieczeństwa Górniczego.
  3. British Standard Pipe Parallel Brytyjski Standard Rurowy Równoległy, calowy gwint walcowy, jeden z gwintów rurowych Whitwortha (BSP) oznaczany literą G.

Uwaga: Podane powyżej parametry techniczno-ruchowe produktu mają wyłącznie charakter informacyjny. Właściciel i administrator sklepu internetowego hydromech.eu nie ponoszą odpowiedzialności za ich zgodność z parametrami produktu dostarczanego przez producenta.

To download
Brand
Symbol
22248061
Producer code
Pompa bez króćcaDPA30-61CW
