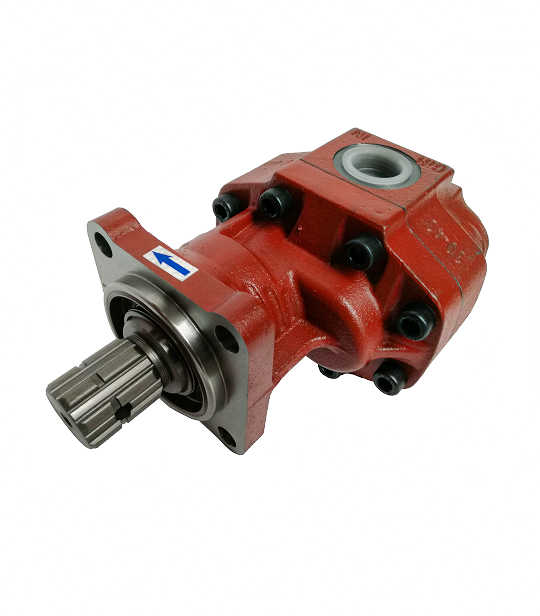

Gear pump, LIWA 61, left hand, ISO, 22247061

Gear pump, LIWA 61, left hand, ISO, 22247061

  • LIWA external gear pump, type 61, with a flow rate of 61.90 l/min (at 1,000 rpm), left-hand direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).
261,48 €
incl. VAT / item
Regular price / item
of
Out of stock, delivery soon
Out of stock, delivery soon
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from €11.71 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order €11.71 are for free.
Free delivery includes parcel delivery to a parcel machine
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

NOT SURE WHAT THE DIRECTION OF ROTATION OF YOUR PUMP IS? CHECK HERE

LIWA external gear pump, type 61, with a flow rate of 61.90 l/min (at 1,000 rpm), with left-hand direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).

BASIC DATA

Geometric working volume 61.90 cm3/rev.
Flow capacity (at 1000 rpm) 61.90 l/min
Maximum operating pressure (continuous) 220 bar
Direction of rotation¹ left-hand
Maximum speed (continuous) 2000 rpm
Minimum speed (continuous)
Shaft drive

B8×32×36 ISO 14:1982 (DIN 5462)

Mounting flange according to ISO 7653:1985
Typical application trucks
Country of origin Front loadercition
Manufacturer's website www.liwahydraulic.com

SUPPLEMENTARY INFORMATION

Torque (at maximum pressure)
Own weight 13.5 kg
Temperafront loader oil operating temperature (permissible range)


Recommended oil viscosity²
Axial length after installation
Cross section
Suction connection g 1" female thread (according to BSPP³)
Discharge connection g ¾" female thread (according to BSPP³)

  1. The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
  2. The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
  3. British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.

Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).

To download
Brand
Symbol
22247061
Producer code
DPA30-61CCW
