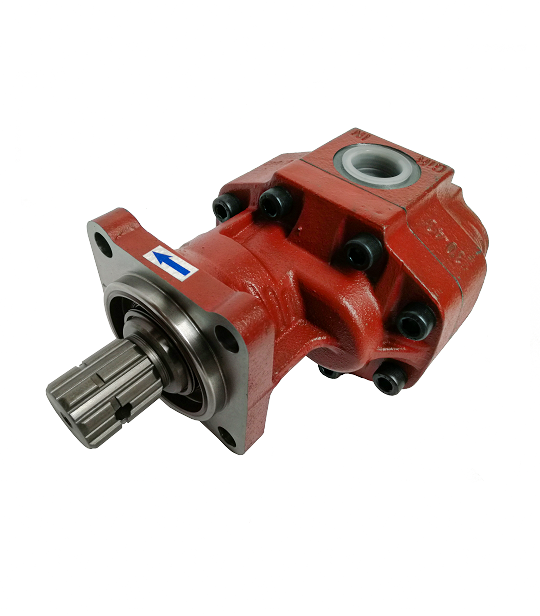

Gear pump, LIWA 82, right-hand drive, ISO
- LIWA external gear pump, type 81, with a flow rate of 82.10 l/min (at 1,000 rpm), right-hand rotation¹, from shaft according to ISO 14:1982 (DIN 5462).
NOT SURE WHAT THE DIRECTION OF ROTATION OF YOUR PUMP IS? CHECK HERE
LIWA external gear pump, type 82, with a flow rate of 82.10 l/min (at 1,000 rpm), with right direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).
BASIC DATA
| Geometric working volume | 82.10 cm3/rev. |
| Flow capacity (at 1000 rpm) | 82.10 l/min |
| Maximum working pressure (continuous) | 200 bar |
| Direction of rotation¹ | clockwise |
| Maximum speed (continuous) | 1900 rpm |
| Minimum speed (continuous) | |
| Shaft drive |
B8×32×36 ISO 14:1982 (DIN 5462) |
| Mounting flange | according to ISO 7653:1985 |
| Typical application | trucks |
| Country of origin | Front loadercition |
| Manufacturer's website | www.liwahydraulic.com |
SUPPLEMENTARY INFORMATION
| Torque (at maximum pressure) | |
| Own weight | 14.5 kg |
| Temperafront loader oil operation (permissible range) |
|
| Recommended oil viscosity | |
| Axial length after installation | |
| Cross section | |
| Suction connection | g 1¼" female thread (according to BSPP²) |
| Discharge connection | g 1" female thread (acc. to BSPP²) |
- The direction of rotation is determined by looking at the pump from shaft. Right-hand direction - clockwise, left-hand direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
