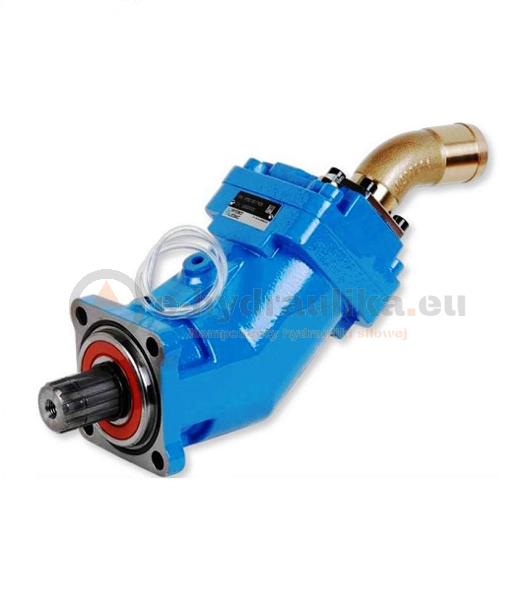

Multi-piston pump, Hydro Leduc XPi41
Multi-piston pump, Hydro Leduc XPi41
- Hydro Leduc's pivoting axial piston multi-piston pump, type XPi41, with a flow rate of 41.0 l/min (at 1000 rpm), with uNIwersal direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).
Hydro Leduc pivoting axial piston pump , type XPi41, with a flow rate of 41.0 l/min (at 1000 rpm), with uNIwersal direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).
BASIC DATA
| Geometric working volume | 41.0 cm3/rev. |
| Flow capacity (at 1000 rpm) | 41.0 l/min |
| Maximum operating pressure (continuous) | 380 bar |
| Direction of rotation¹ | uNIvertical |
| Maximum speed (continuous) | 2550 rpm |
| Shaft drive |
B8×32×36 ISO 14:1982 (DIN 5462) |
| Mounting flange | 4×ø12.75 ISO 7653:1985 |
| Typical applications | trucks |
| Country of origin | France |
| Manufacturer's website | www.hydroleduc.com |
SUPPLEMENTARY INFORMATION
| Torque (at maximum pressure) | 261 Nm |
| Unladen weight | 11.15 kg |
| Temperafront loader oil operation (permissible range) |
-20÷100 ° C |
| Recommended oil viscosity² | 10÷400 cSt |
| Axial length after installation | 202.8 mm |
| Suction connection | g ¾" female thread (acc. to BSPP³) |
| Discharge connection | g ¾" female thread (according to BSPP³) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
To download
Brand
Entity responsible for this product in the EU
HYDRO LEDUC FRANCEMore
Address:
Allee Rene LeducPostal code: 54122City: AzeraillesCountry: Francja
Symbol
XPi41 0517650
