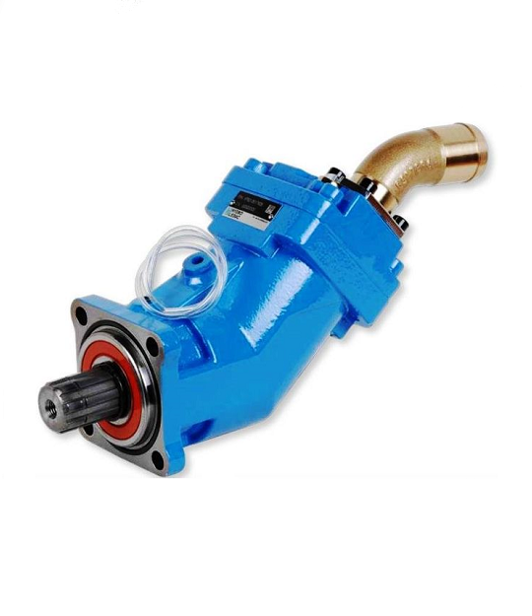

Multi-piston pump, Hydro Leduc XPi32
Flange typeISO
Rotationuniversal
Flow rate31-40 l/min

Multi-piston pump, Hydro Leduc XPi32

  • Hydro Leduc's pivoting axial piston multi-piston pump, type XPi32, with a flow rate of 32.0 l/min (at 1000 rpm), with uNIwersal direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).
692,42 €
incl. VAT / item
Regular price / item
of
Product in stock in very small quantities
Product in stock in very small quantities
14 days for easy returns
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from €11.74 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order €11.74 are for free.
Free delivery includes parcel delivery to a parcel machine
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

Hydro Leduc pivoting axial piston pump , type XPi32, with a flow rate of 32.0 l/min (at 1000 rpm), with uNIwersal direction of rotation¹, from shaft according to ISO 14:1982 (DIN 5462).

BASIC DATA

Geometric working volume 32.0 cm3/rev.
Flow capacity (at 1000 rpm) 32.0 l/min
Maximum operating pressure (continuous) 380 bar
Direction of rotation¹ uNIvertical
Maximum speed (continuous) 2700 rpm
Shaft drive

B8×32×36 ISO 14:1982 (DIN 5462)

Mounting flange 4×ø12.75 ISO 7653:1985
Typical applications trucks
Country of origin France
Manufacturer's website www.hydroleduc.com

SUPPLEMENTARY INFORMATION

Torque (at maximum pressure) 204 Nm
Unladen weight 11.1 kg
Temperafront loader oil operation (permissible range)

-20÷100 ° C

Recommended oil viscosity² 10÷400 cSt
Axial length after installation 202.8 mm
Suction connection g ¾" female thread (acc. to BSPP³)
Discharge connection g ¾" female thread (according to BSPP³)

  1. The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
  2. The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
  3. British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.

Note: The technical and operational parameters of the product given above are for informational purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).

f
To download
Symbol
XPi32 0517640
