Aluminum gear pump, group 2, 2PE16D(S)28P1, European type
- Aluminum gear pump for industrial and agricultural applications from Italian company Salami.
Salami aluminum gear pump group 2 with working volume 16.6 - direction of rotation clockwise or counterclockwise (optional) with European and conical flange 1:8 shaft: 2PE16D(S)28P1
BASIC DATA
| Geometric working volume | 16.6 cm3/rev. |
| Maximum working pressure |
250 bar |
| Instantaneous working pressure |
280 bar |
| Direction of rotation¹ | clockwise |
| Maximum speed (continuous) | 3000 rpm |
| Minimum speed |
400 rpm |
| Shaft drive | 1:8 taper, M12 x 1.25 |

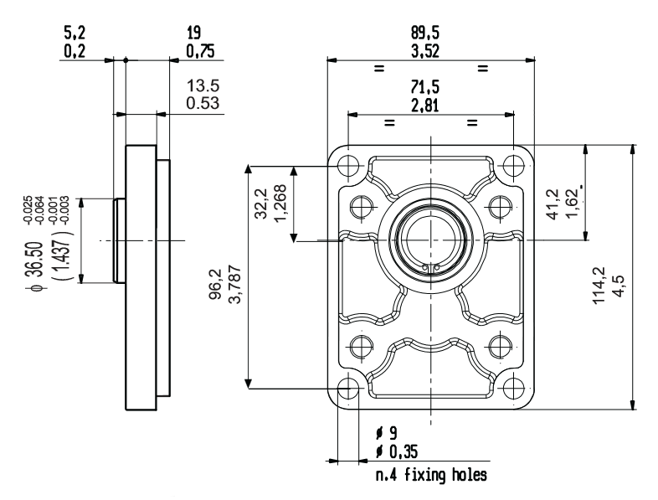

| Mounting flange | european 71.5 x 96.2 mm |
| Typical applications | industry, agriculture |
| Country of origin | Italy |
| Manufacturer's website | www.salami.it |
SUPPLEMENTARY INFORMATION
| Own weight | 2.5 kg |
| Temperafront loader oil operation (permissible range) | -20÷85° C |
| Recommended oil viscosity² | 17÷65 cSt |
| Axial length after installation | 109.5 mm |
| Cross section | 105x88 mm |
| Connections | 3/4 and 1/2 threaded |
- The direction of rotation is determined by looking at the pump from shaft. Right-hand direction - clockwise, left-hand direction- counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
Note: The technical and operational parameters of the product given above are for information purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
