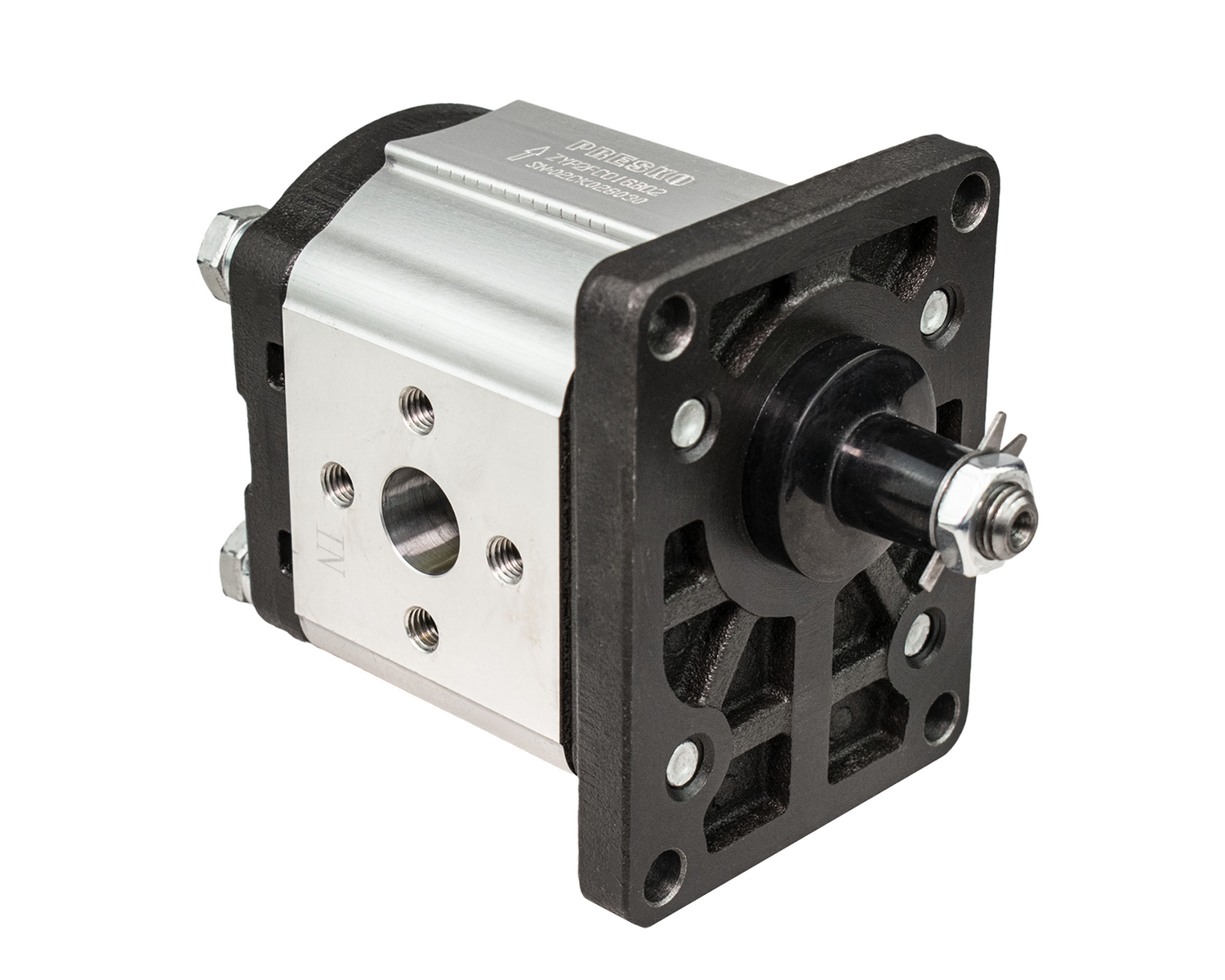

PRESKO Gear Pump, 12 cm3, 18 l, group 2 PE

Hydraulic gear pump group 2, volume 12 cm3/rev., clockwise rotation

	TECHNICAL DETAILS Volume 12cm3/rev. Oil flow at 1500 rev./min: 18l/min Maximum operating pressure: 280 bar Nominal operating pressure: 200 bar Rotation: clockwise Maximum rotation speed (continuous): 2000 rev./min Maximum rotation speed (instantaneous): 3000 rev./min Minimum rotation speed:500 rev./min Shaft: cone 1:8, M12 x 1,5 Flange:  European 114 x 90 mm
	CHARACTERISTICS Each PRESKO pump undergoes quality tests at the final stage of production Sealing resistant to high temperature and high pressure High nominal pressure of continuous work- 200 bar Aluminium body Durable cast iron covers The bushing keeps the shaft in axis The replacement for 2PE group pumps

 DIMENSIONS OF THE FLANGE (red arrow shows the direction of shaft rotation)

Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
