PRESKO Gear Pump 4 cm3/rev., group 2

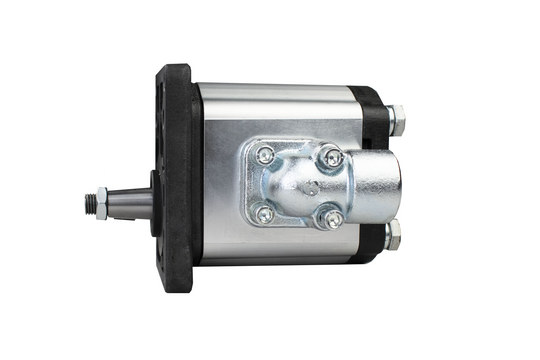

- PRESKO hydraulic gear pump, volume 4 cm3/rev., group 2, complete with flange connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Hydraulic gear pump group 2, volume 4 cm3/rev., clockwise rotation, dedicated flange connection
TECHNICAL DETAILS
- Volume: 4 cm3/rev.
- Maximum operating pressure: 280 bar
- Nominal operating pressure: 200 bar
- Rotation: clockwise
- Maximum rotation speed (continuous): 2000 rev./min
- Maximum rotation speed (instantaneous): 4000 rev./min
- Minimum rotation speed: 800 rev./min
- Shaft: cone 1:8, M12 x 1,5
- Flange: European 114 x 90 mm
- Oil operating temperature: -15÷85°
- Porting: 4 holes (M6) arranged in a square pattern
- Compatible with 2PE and 1.5PB

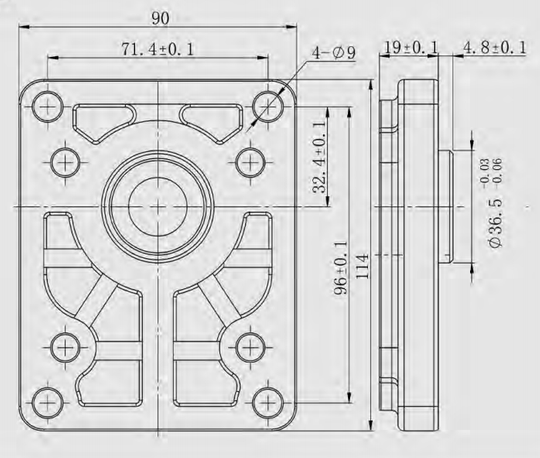

Dimensions in mm
- L1: 41,5
- L: 87,5
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
