PRESKO gear pump 46 cm3/rev., flow 69 l , group 3PB

TECHNICAL DETAILS

• Volume: 46 cm3/rev.
• Oil flow at 1500 rev./min: 69 l/min
• Maximum operating pressure: 230 bar
• Nominal operating pressure: 160 bar
• Rotation: clockwise
• Maximum rotation speed (continuous):  2000 rev./min
• Maximum rotation speed (instantaneous): 2800 rev./min
• Minimum rotation speed: 600 rev./min
• Shaft: cone  1:8, M14 x 1,5

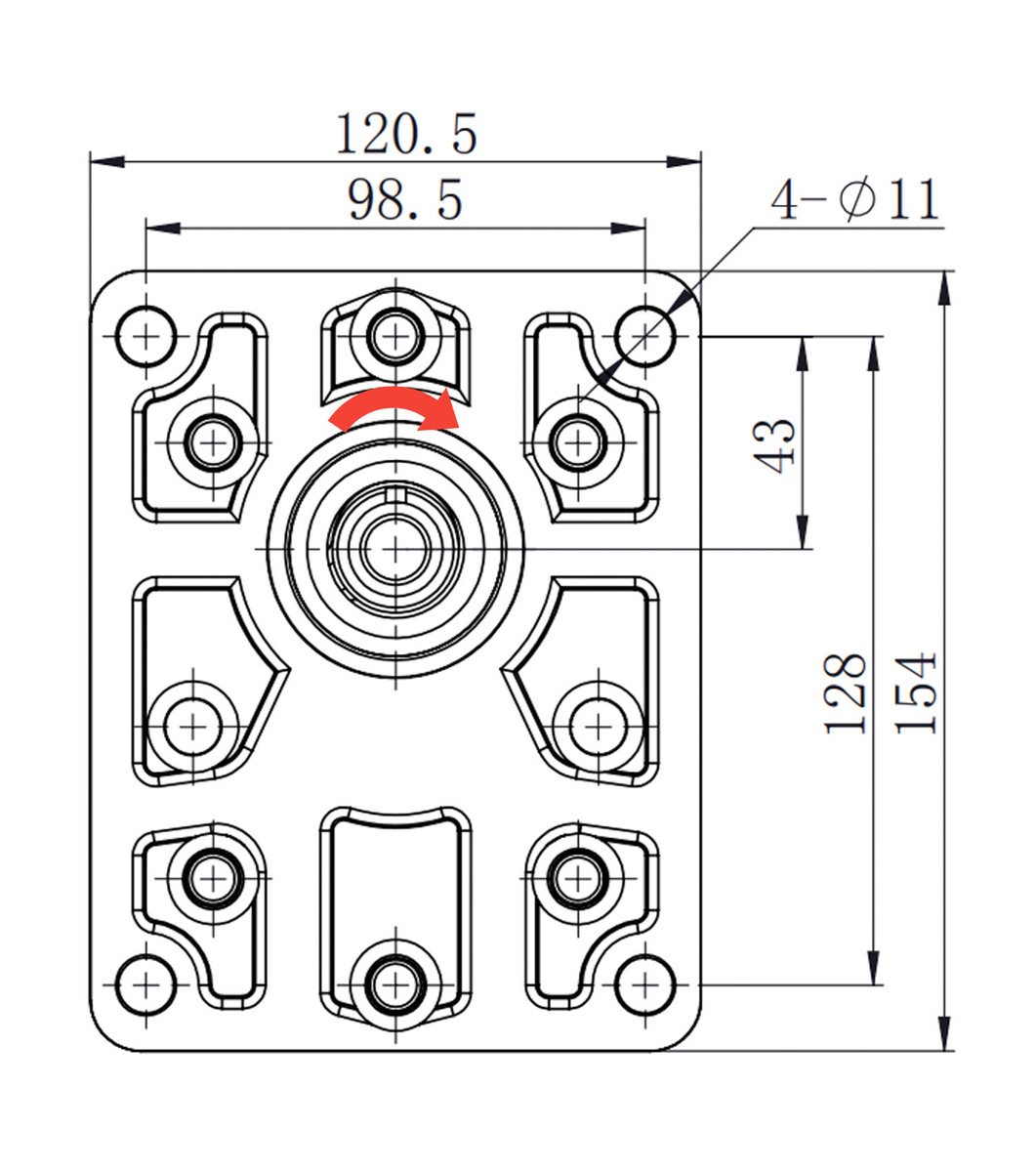

• Flange: European 154 x 120,5 mm
• Body: aluminium
• Replacement for pumps from 2,5PE i 3PB groups
