PRESKO Gear Pump 8 cm3, 12 l, complete with flange connection, and coulings

PRESKO Gear Pump 8 cm3, 12 l, complete with flange connection, and coulings

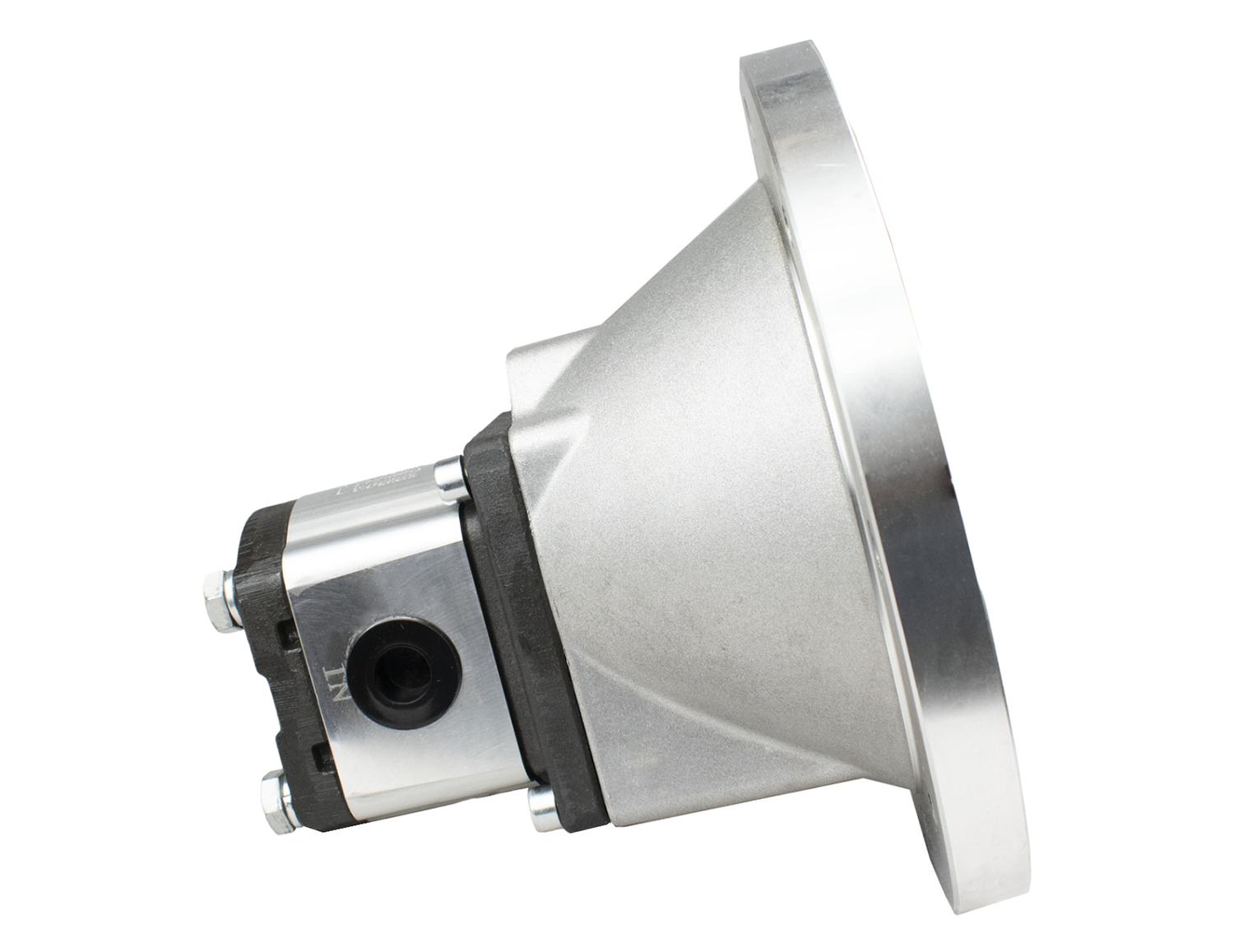

PRESKO hydraulic gear pump, volume 8 cm3/rev., flow 12/min., complete with flange connection and couplings

Hydraulic gear pump, group 2, displacement 8 cm3/rev., oil flow 12 l/min, flange connection and couplings for connection to electric motor

The set allows to connect the pump to an electric motor increasing the oil flow to 12 l/min. at 1500 rpm.

The set includes:

PRESKO gear pump
Flange adapter for connection to the electric motor
Coupling for connecting the motor and pump
Screws for connecting the pump to the flange
Dedicated couplings

TECHNICAL DETAILS

Volume: 8cm3/obr.
Maximum operating pressure: 280 bar
Nominal operating pressure: 200 bar
Rotation: clockwise
Maximum rotation speed (continuous): 2000 rev./min
Maximum rotation speed (instantaneous):4000 rev./min
Minimum rotation speed: 600 rev./min
Shaft: cone1:8, M12 x 1,5

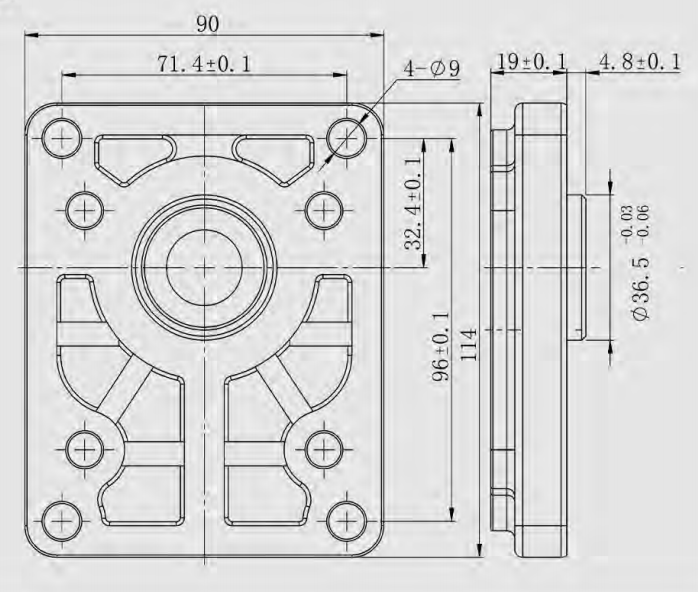

Flange: European114 x 90 mm
Oil operating temperature:-15÷85°
Thread 1/2''; 1/2''
Compatible with pumps 2PE and 1.5PB

OMT connection

Pump group 2
Shaft cone 1:8, Ø 17,4, M12 x 1,5
Motor shaft 28 mm
Motor frame size D100

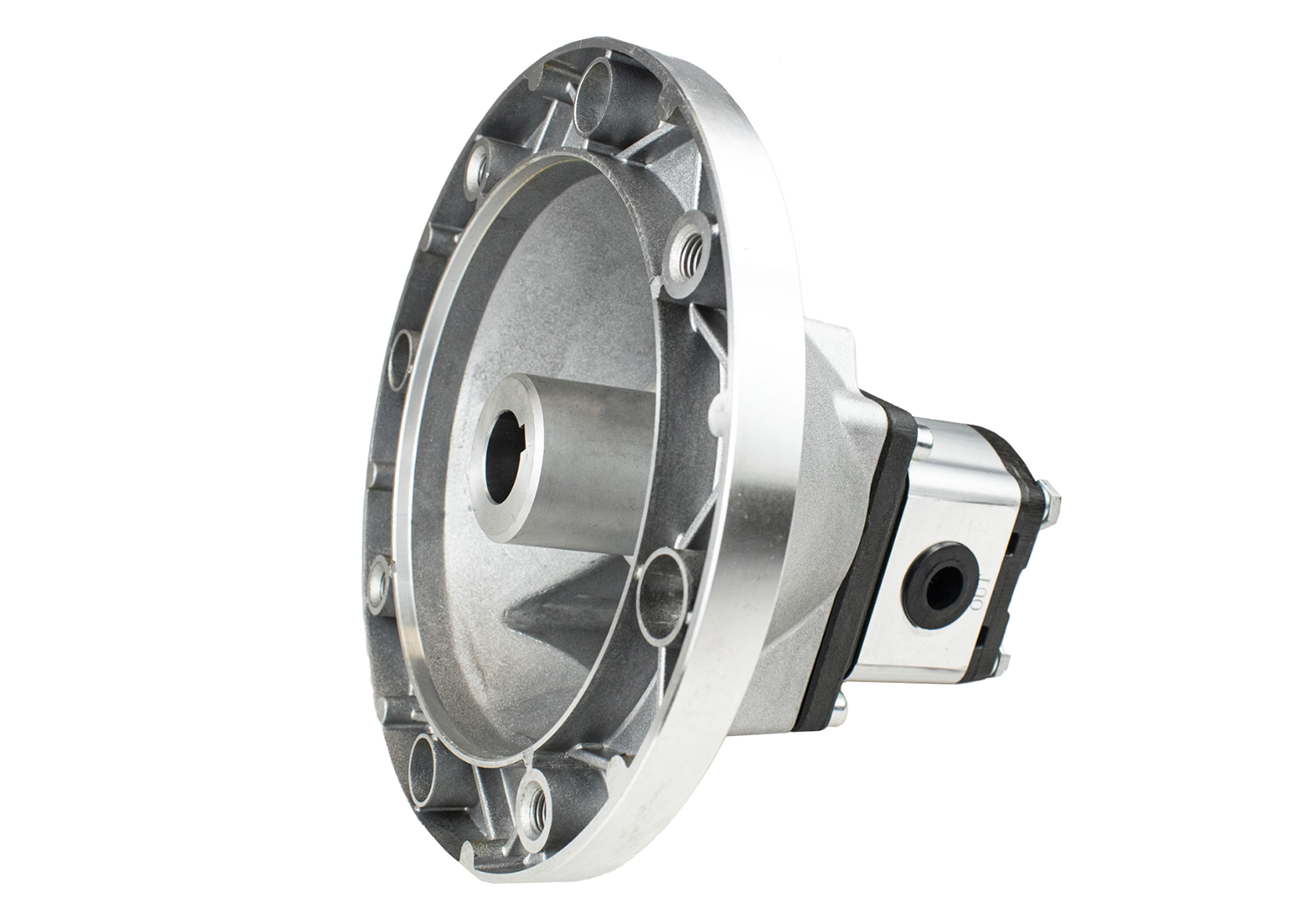

Massive flange connecting pump and electric motor

dedicated to pumps group 2
electric motor 2,2 kW - 4 kW
screw hole 10 mm
total outer width - 25 cm
screw spacing 21,5 cm
produced by OMT

Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.

Brand

PRESKO

Entity responsible for this product in the EU

HeweaSp. z o.o.More

ProducerHeweaSp. z o.o.Address: Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com

Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress: Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska

Symbol

ZYP2FC008B03;LS252;ND 13
