PRESKO Gear Pump, displacement 16 cm3/rev., group 2.
tel:882 037 352
e-mailagro@hewea.com
PRESKO Gear Pump, displacement 16 cm3/rev., group 2.
- PRESKO hydraulic gear pump, displacement 16 cm3/rev., group 2. Complete with flange connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Hydraulic gear pump group 2, volume 16 cm3/rev., clockwise rotation, dedicated flange connection
TECHNICAL DETAILS
- Volume: 16 cm3/rev.
- Maximum operating pressure: 260 bar
- Nominal operating pressure: 200 bar
- Rotation: clockwise
- Maximum rotation speed (continuous): 2000 rev./min
- Maximum rotation speed (instantaneous): 4000 rev./min
- Minimum rotation speed: 500 rev./min
- Shaft: cone 1:8, M12 x 1,5
- Flange: European 114 x 90 mm
- Oil operating temperature: -15÷85°
- Porting: 4 holes (M6) arranged in a square pattern
- Compatible with 2PE and 1.5PB
- Thread: 1/2'' and 3/4''

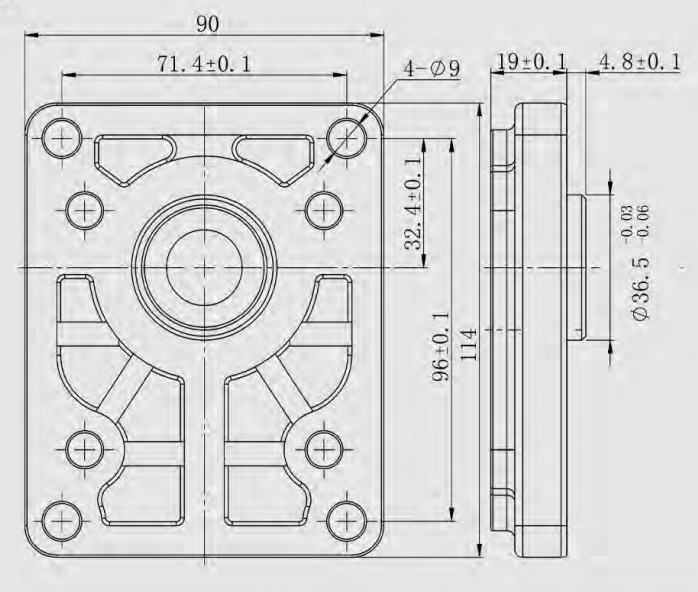

Dimensions in mm
- L1: 51,3
- L: 107
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
