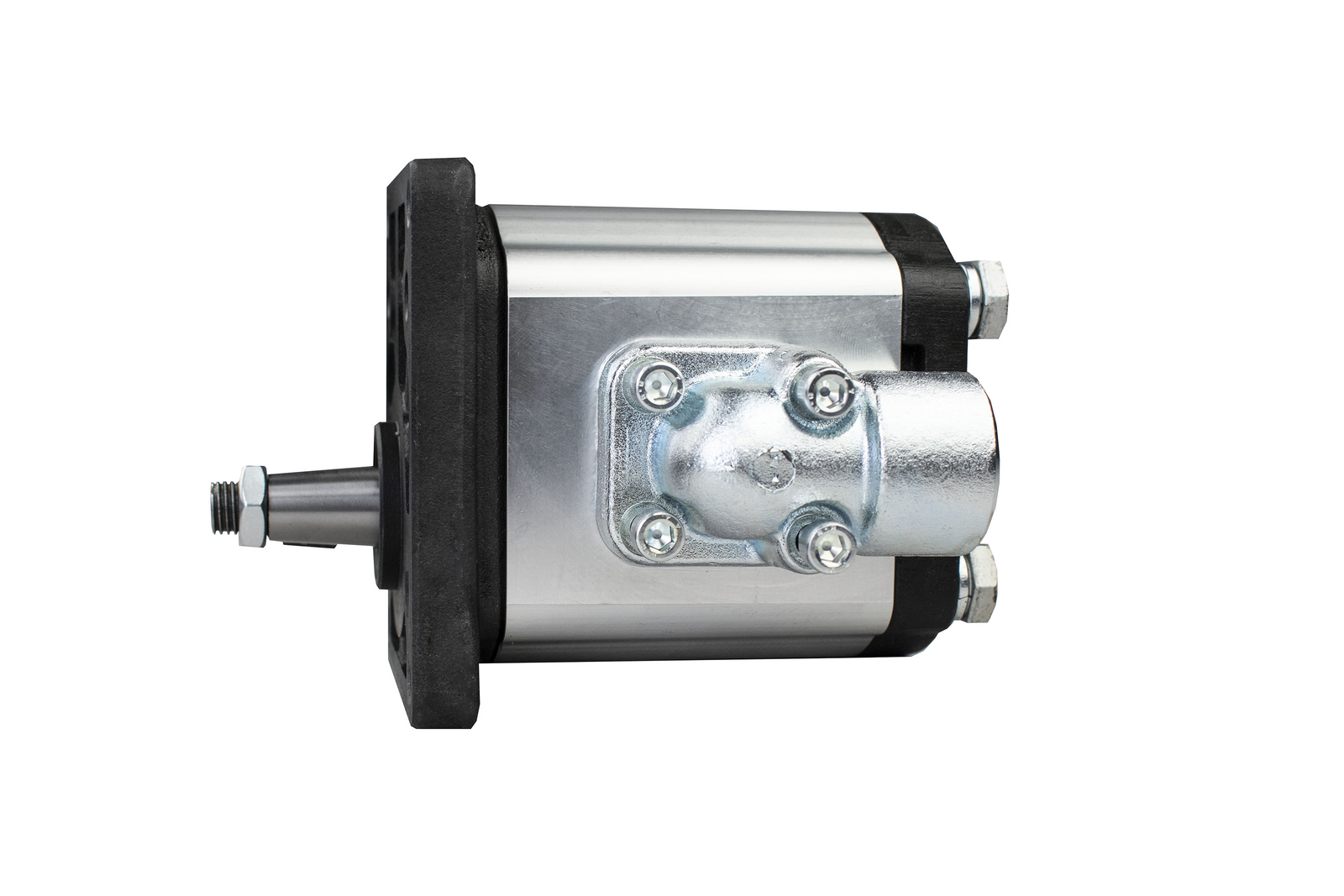

PRESKO Gear Pump, displacement 8 cm3/rev., flange connection
tel:882 037 352
PRESKO Gear Pump, displacement 8 cm3/rev., flange connection
- PRESKO hydraulic gear pump, displacement 8 cm3/rev., group 2. Complete with flange connection
Hydraulic gear pump group 2, volume 8 cm3/rev., clockwise rotation, dedicated flange connection
TECHNICAL DETAILS
- Volume: 8 cm3/rev.
- Maximum operating pressure: 280 bar
- Nominal operating pressure: 200 bar
- Rotation: clockwise
- Maximum rotation speed (continuous): 2000 rev./min
- Maximum rotation speed (instantaneous): 4000 rev./min
- Minimum rotation speed: 600 rev./min
- Shaft: cone 1:8, M12 x 1,5

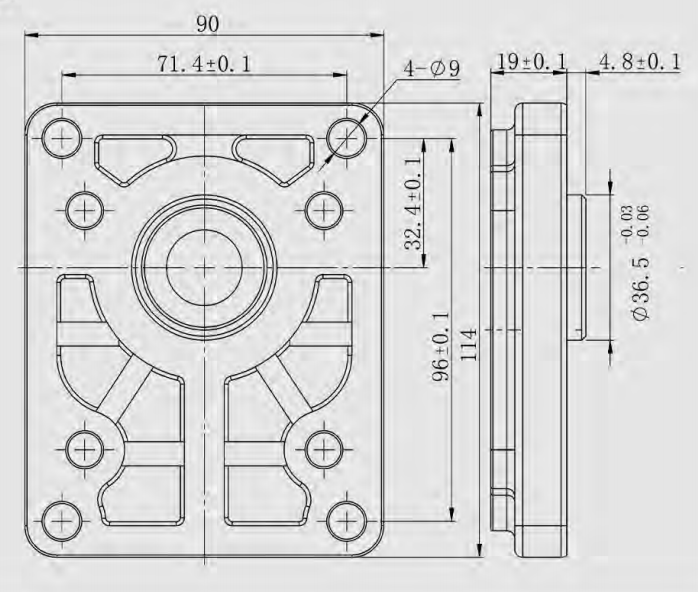

- Flange: European 114 x 90 mm
- Oil operating temperature: -15÷85°
- Porting: 4 holes (M6) arranged in a square pattern
- Compatible with 2PE and 1.5PB
Dimensions in mm
- L1: 44,5
- L: 93,5
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
Brand
Entity responsible for this product in the EU
HeweaSp. z o.o.More
ProducerHeweaSp. z o.o.Address:
Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress:
Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
ZYP2FC008B06;DRA 1/2 35 kwadrat[2]
