PRESKO Hydraulic Gear Pump, displacement 14 cm3/rev., 2 group
tel:882 037 352
PRESKO Hydraulic Gear Pump, displacement 14 cm3/rev., 2 group

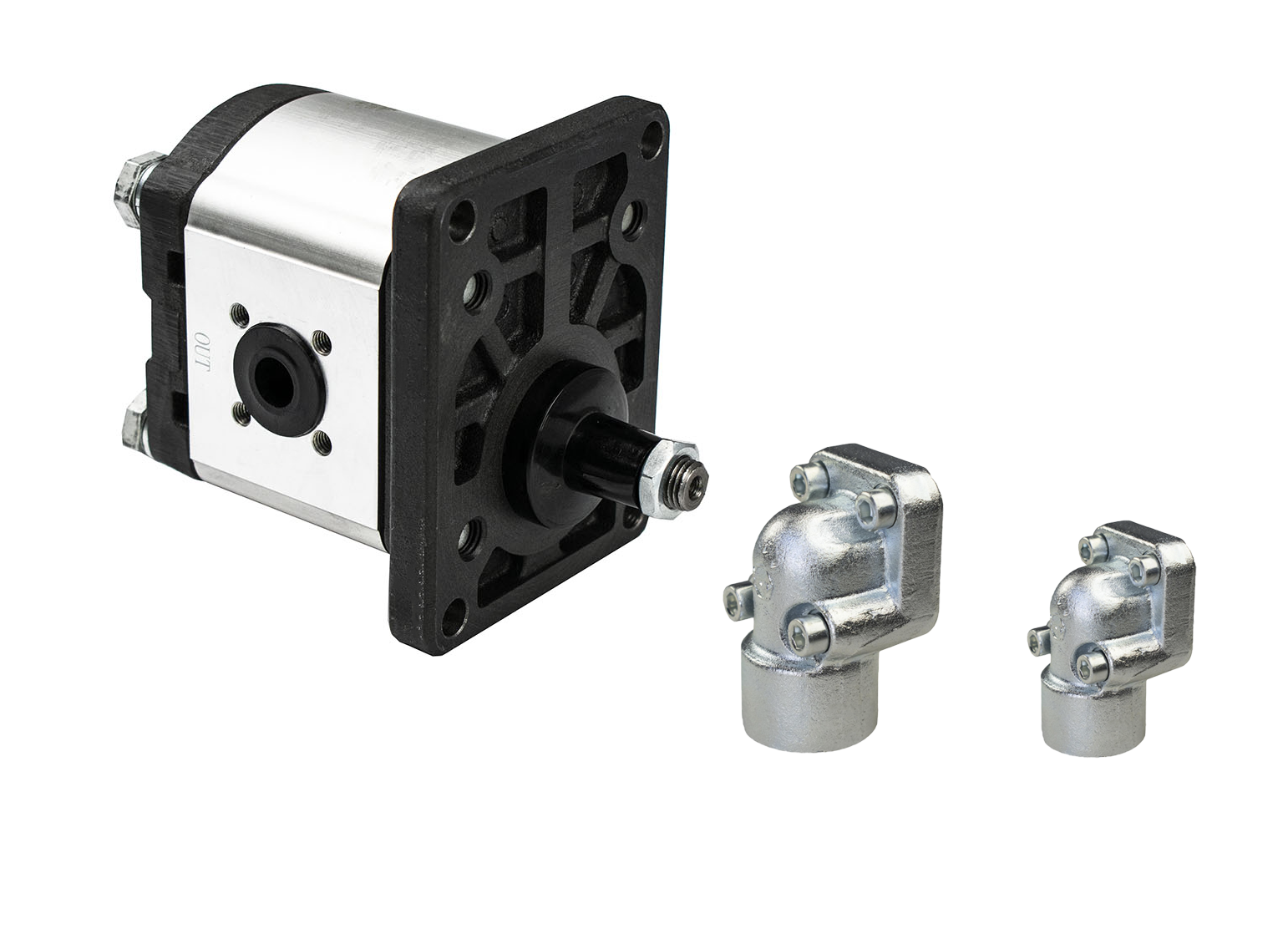

- PRESKO Hydraulic Gear Pump, displacement 14 cm3/rev., group 2 . Complete with flange connection
Gear pump group 2, volume 14 cm3/rev., clockwise rotation, dedicated flange connection
TECHNICAL DETAILS
- Volume: 14 cm3/rev.
- Maximum operating pressure: 260 bar
- Nominal operating pressure: 200 bar
- Rotation: clockwise
- Maximum rotation speed (continuous): 2000 rev./min
- Maximum rotation speed (instantaneous): 4000 rev./min
- Minimum rotation speed: 500 rev./min
- Shaft: cone 1:8, M12 x 1,5

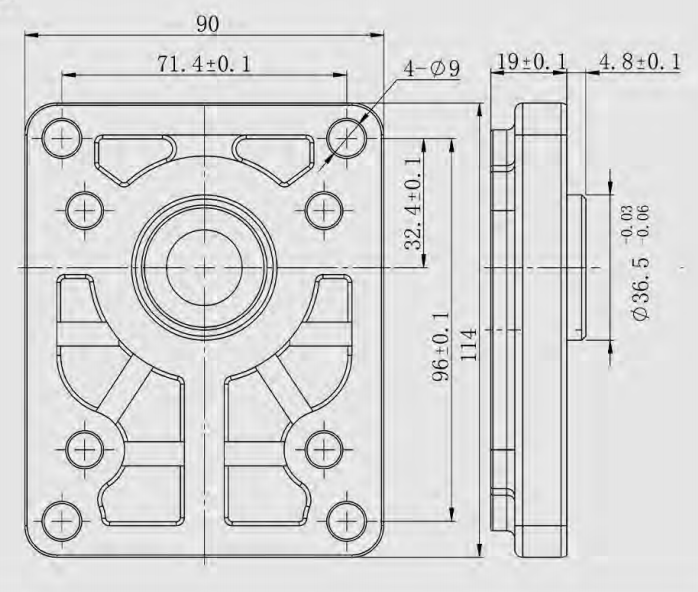

- Flange: European 114 x 90 mm
- Oil operating temperature: -15÷85°
- Porting: 4 holes (M6) arranged in a square pattern
- Compatible with 2PE and 1.5PB
- Thread: 1/2'' and 3/4''
Dimensions in mm
- L1: 49,5
- L: 103,5
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
