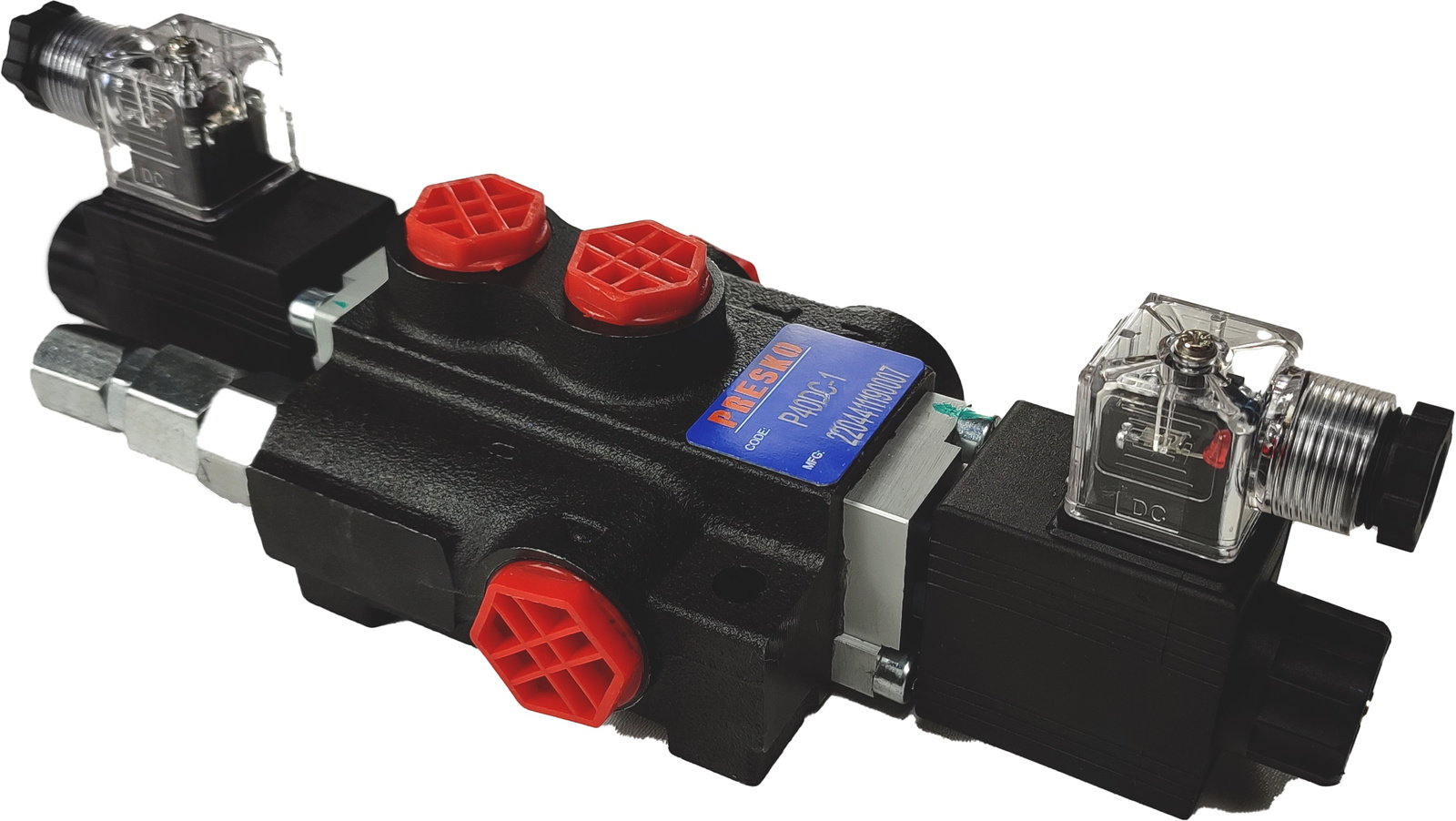

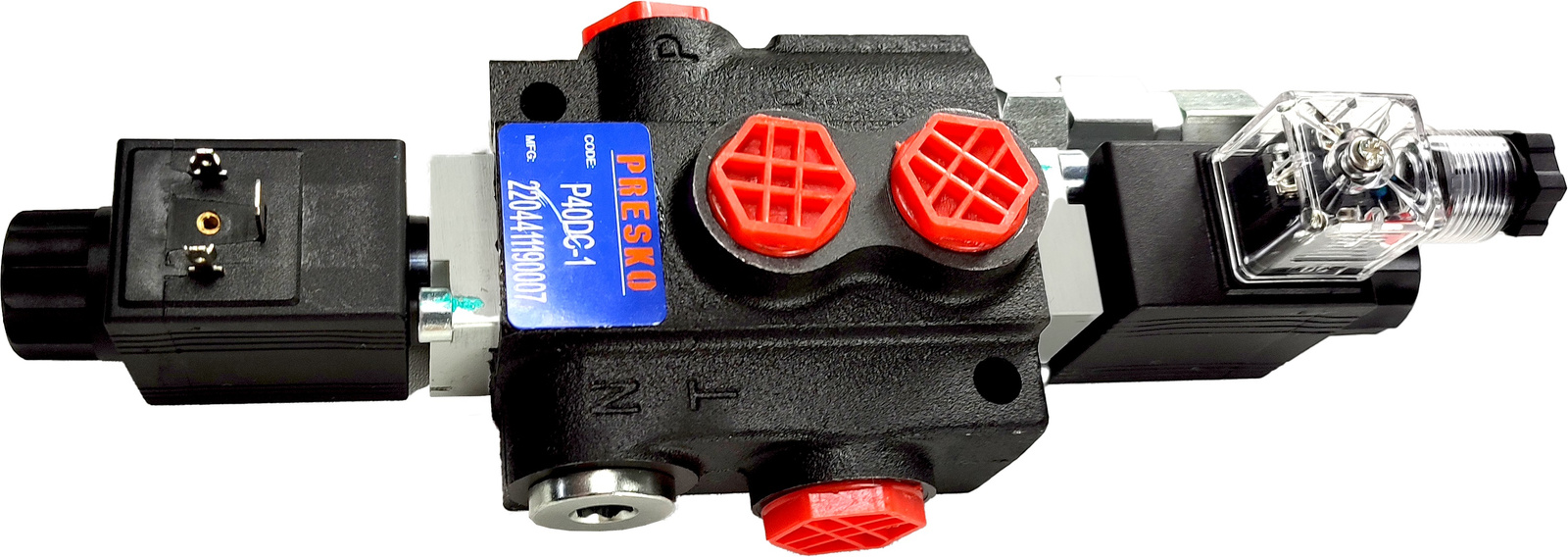

Hydraulic Directional Valve Presko , 1-section electrically controlled 12V
- Hydraulic Directional Valve Presko , 1-section electrically controlled 12V
Hydraulic Directional Valve single-section electrically controlled 12V, with flow up to 40l/min by PRESKO brand
Hydraulic Directional Valve successfully used in many agricultural, construction and industrial machines, where convenience and radio control of the hydraulic system are important. Great for loaders, cyclops, plows, excavators, etc.
BASIC DATA
| Number of sections |
1 |
| Safety valve setting | 180 bar |
| Maximum pressure | 200 bar |
| Maximum flow rate | 40 l/min |
| Nominal voltage | 12V |
| Weight | 4.57 kg |
| Typical applications | power hydraulics |
Monobloc

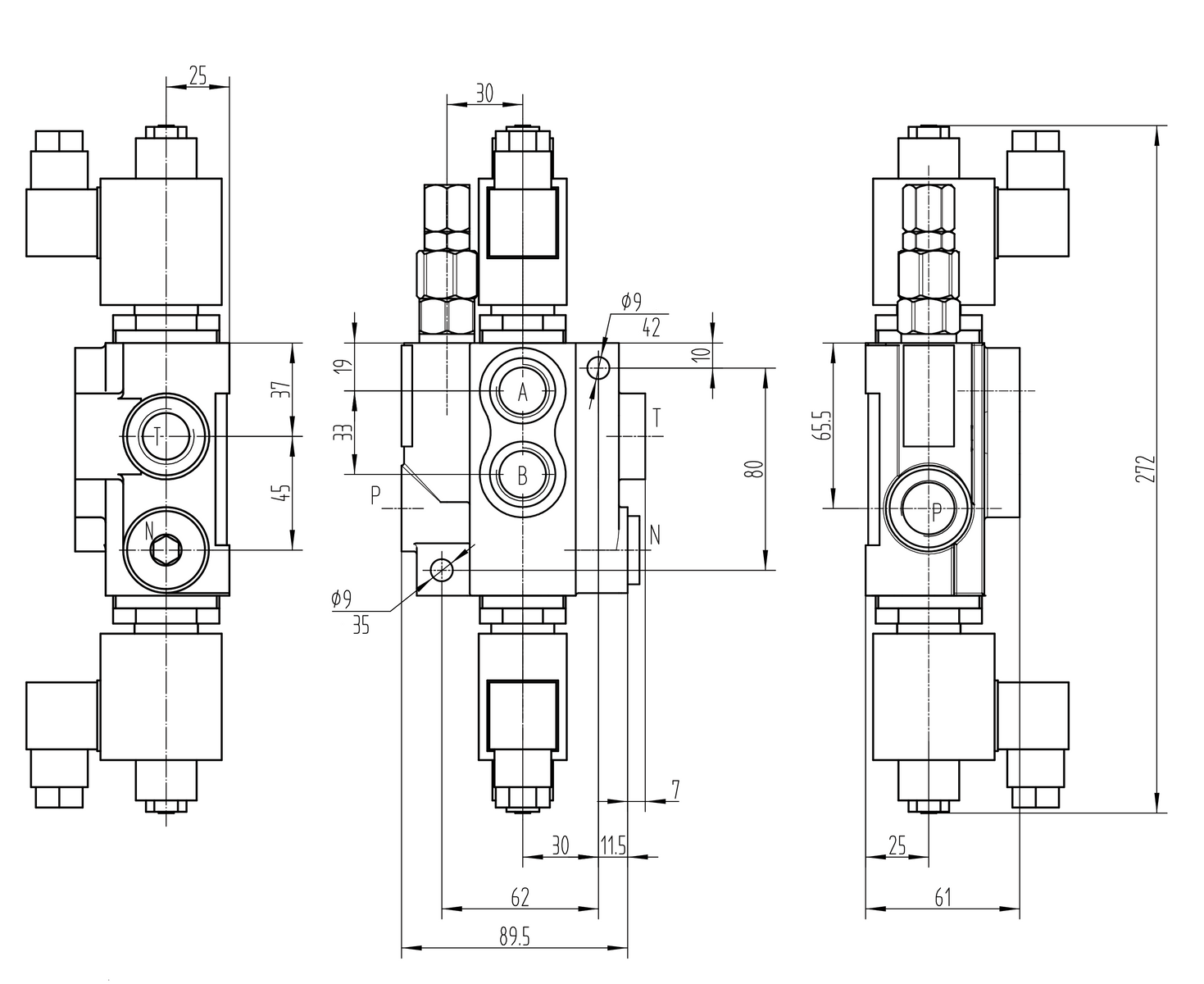

CONNECTIONS:
THE NUMBER OF OUTPUT PORTS WITH OUTPUTS ON Cylinder DEPENDS ON THE NUMBER OF SECTIONS OF A GIVEN Hydraulic Directional Valve.
OIL SUPPLY: P1
OILRETURN: T1 / T2
OUTPUTS ON Cylinder: A1 , A2 / B1, B2
SERIALCONNECTION: Port N - for serial connection to another hydraulic Directional Valve, it is necessary to use ferrule pressure PRESKO, available on our other auctions.
Electrical plugs:
They are included with hydraulic Directional Valve and are plugged into the electrical coils with three pins - the connection is very simple
- Hydraulic Directional Valvee PRESKO are used by many Polish and foreign manufacturers of agricultural, construction and industrial equipment
- Hydraulic Directional Valve allows easy serial connection to another hydraulic Directional Valve with the help of pressure ferrule - ferrule is available on our other auctions - it should be screwed into the N port
- High-quality materials used in production guarantee long and trouble-free operation
- Robust and compact monoblock design will facilitate installation
- Hydraulic Directional Valve it is equipped with a safety valve
Note: The technical and operational parameters of the product given above are for information purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product provided by the manufacturer. The source data is provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
