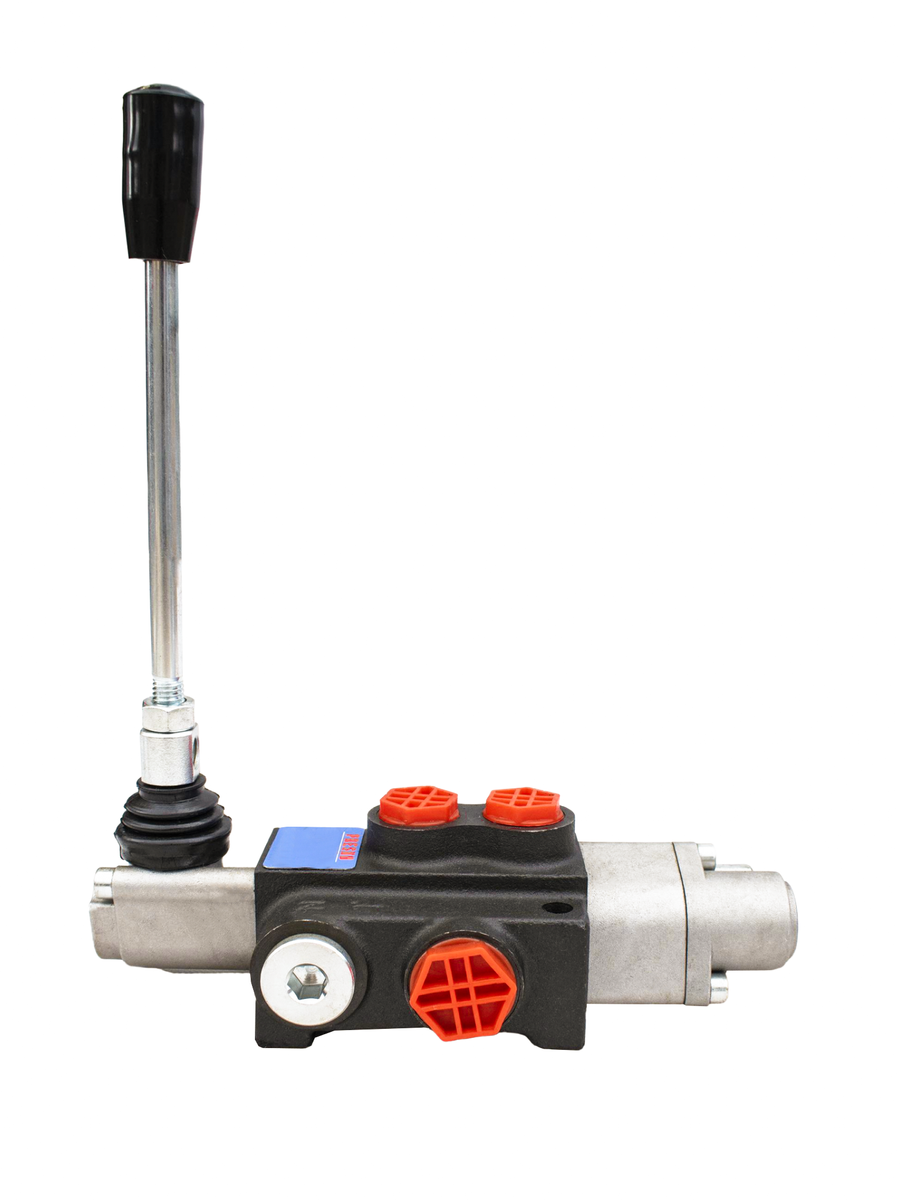

Durable hydraulic Directional Valve by PRESKO
Designed for use in hydraulic systems where it is important to work with hydraulic Directional Valve set in working positions for long periods of time.
It can be used in conveyor belts, hydraulic Motorch hydraulics, drilling rigs, etc.
Thanks to the use of the LOCK, hydraulic Directional Valve this will be great for devices that work for a long time in one position and do not require the hand to be constantly on the lever. The lever operates a three-position system: 1-0-2. When you moveuNIthe lever to any position, it stays in the preset position.
BASIC DATA
| Number of sections |
1 |
| Safety valve setting | 180 bar |
| Maximum pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Section spacing | 35 mm |
| Own weight |
6.07 kg |
| Typical applications | power hydraulics |
A set of dedicated connection nipples with sealing
| Hydraulic Directional Valve can be connected in series with another hydraulic Directional Valve, using ferrule pressure | |
Connection:
Pump supply (P1, P2) : 1/2'' BSP female thread
Return to tank (T1, T2) : BSP 1/2'' female thread
Output to sections (A1, A2, B1, B2) : internal thread BSP 3/8''
Serial connection (N) : internal thread BSP 1/2''
Safety valve: Z
Durable hydraulic Directional Valve by Presko:
- Robust and compact design
- Self-adjustable lever position relative to hydraulic Directional Valve
- Durable body
- Has a port that allows it to be connected in series with another hydraulic Directional Valve using ferrule pressure
Note: The technical and operational parameters of the product given above are informative. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product provided by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
