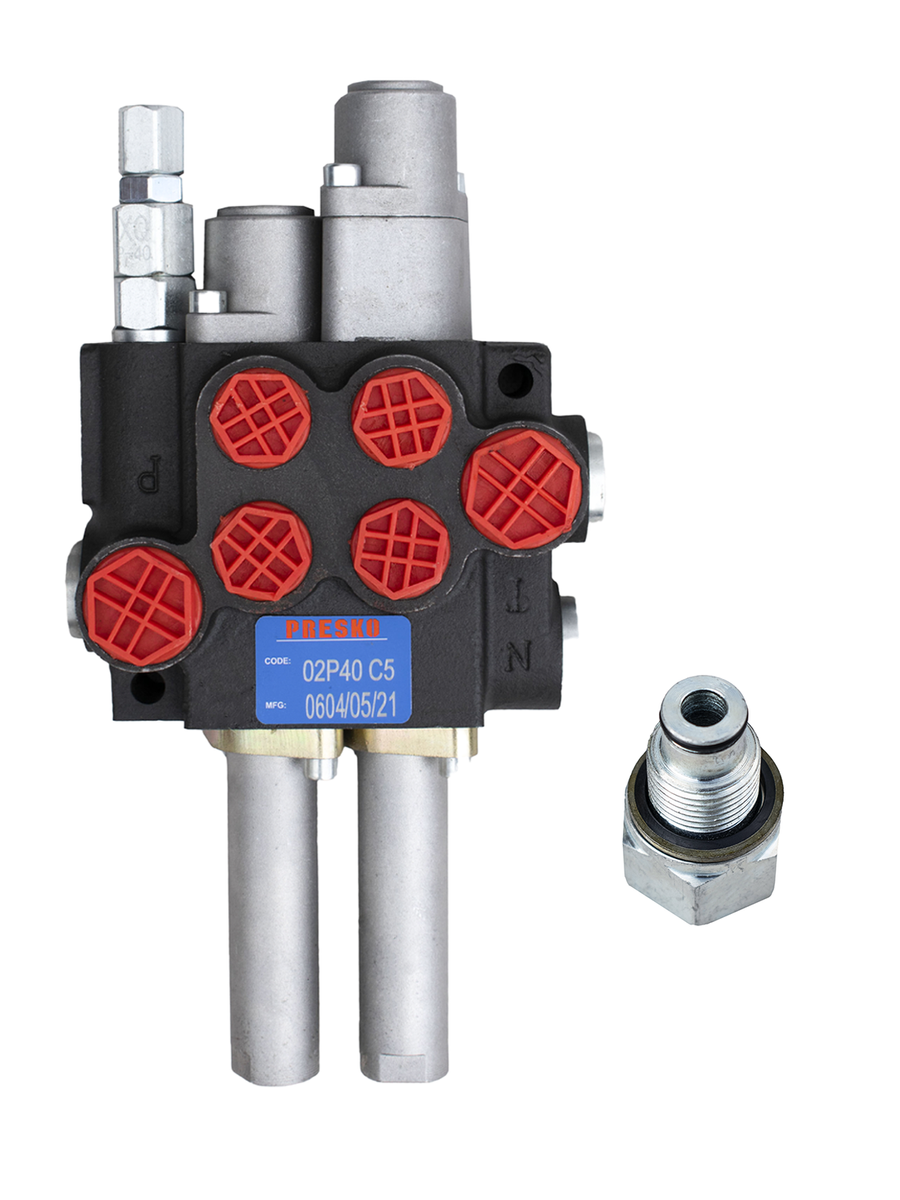

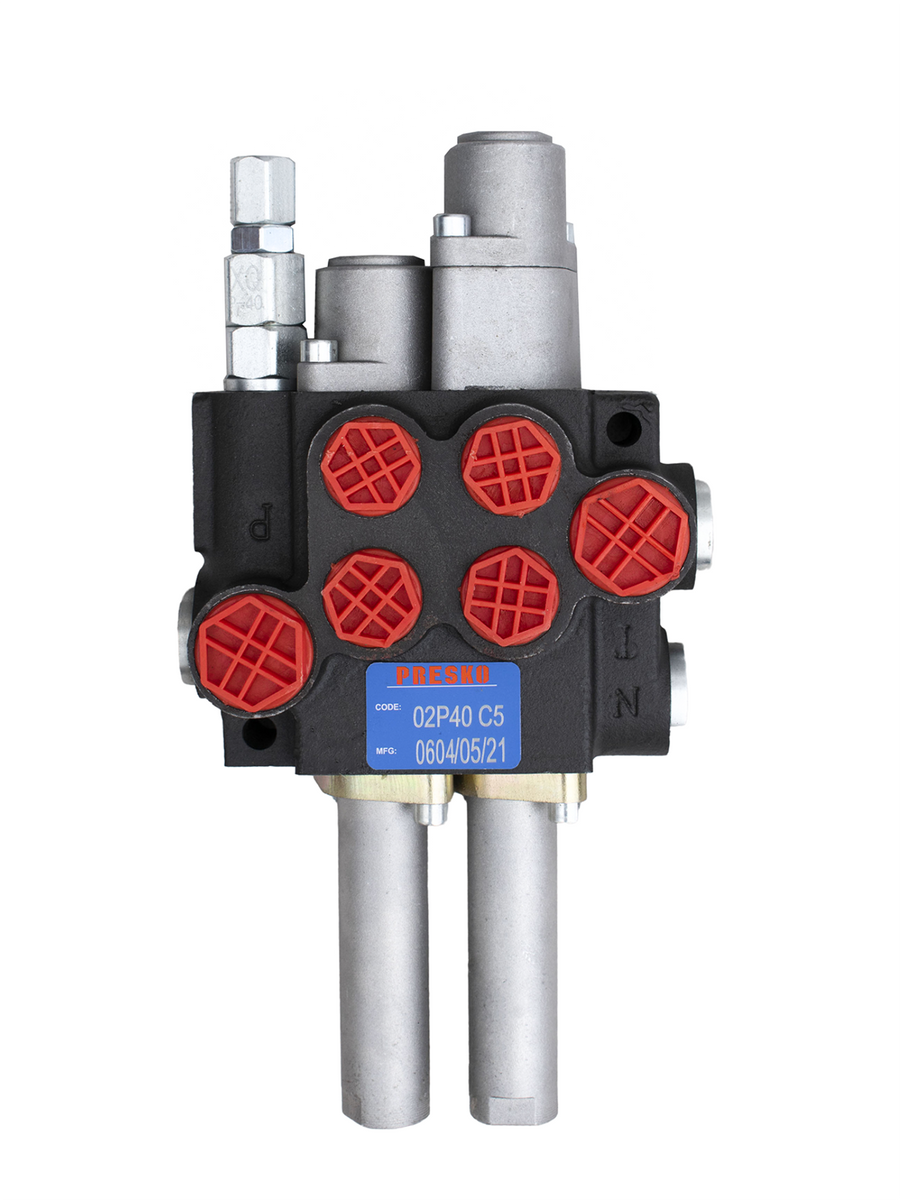

PRESKO Directional Control Valve, 2-way 40 l, cable, one float position, pressure fitting
- PRESKO Directional Control Valve, 2-way 40 l/min., cable control, one float position, complete with a pressure fitting
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
High quality hydraulic directional control valve, 2-way, cable control, flow rate 40 l/min., float position, complete with pressure fitting
FEATURES
- FLOAT position,
- PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
- High-quality materials used for production guarantee durability and smooth operation
- Solid and compact construction
- Easy mounting
- Equipped with a safety valve
TECHNICAL DATA
| Number of ways | 2 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
4,57 kg |
| Application | fluid power |

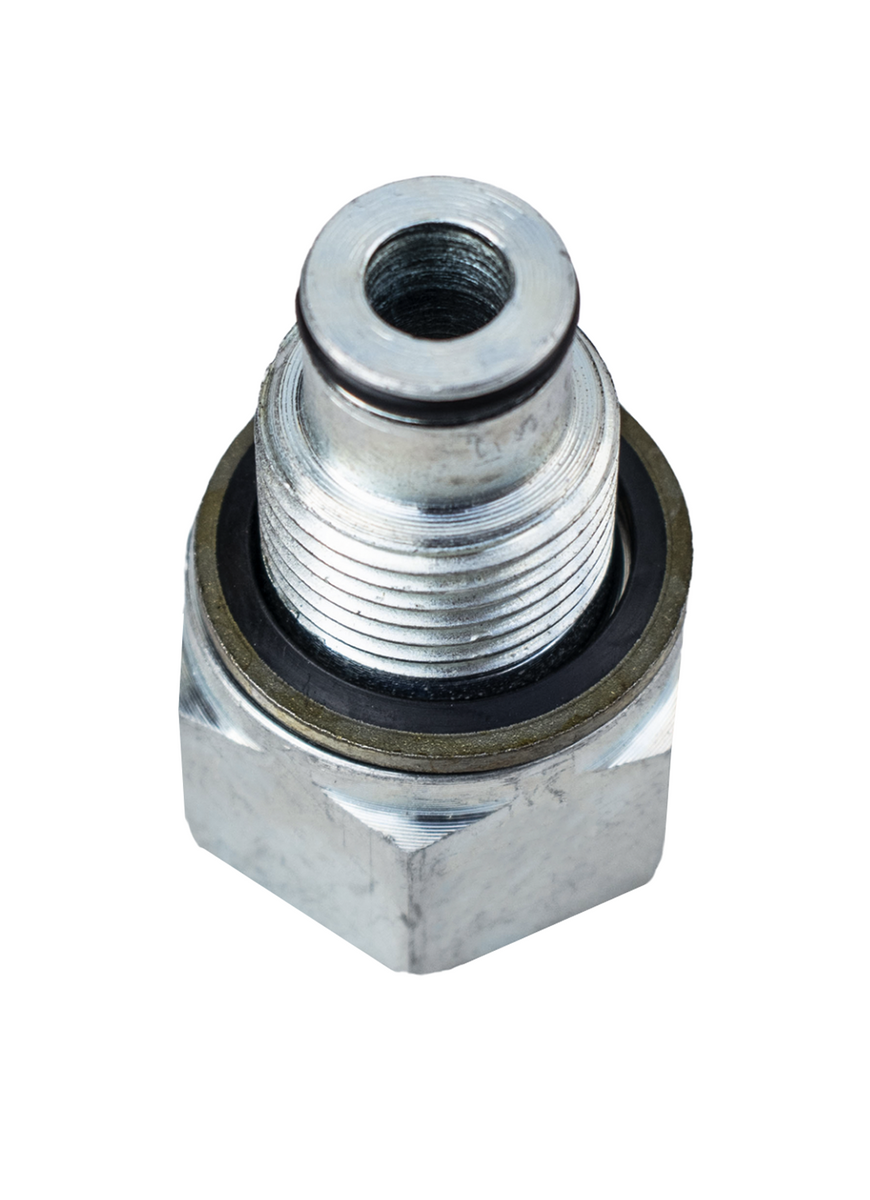

Pressure fitting
Float position
PORTING
- Oil inlet - internal thread, BSP 1/2''
- Oil outlet - internal thread BSP 1/2''
- Connection ports - - internal thread, BSP 3/8''
- Serial connection (to another directional control valve) - internal thread BSP 1/2"
- Safety valve: 250 bar
 |
|
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
