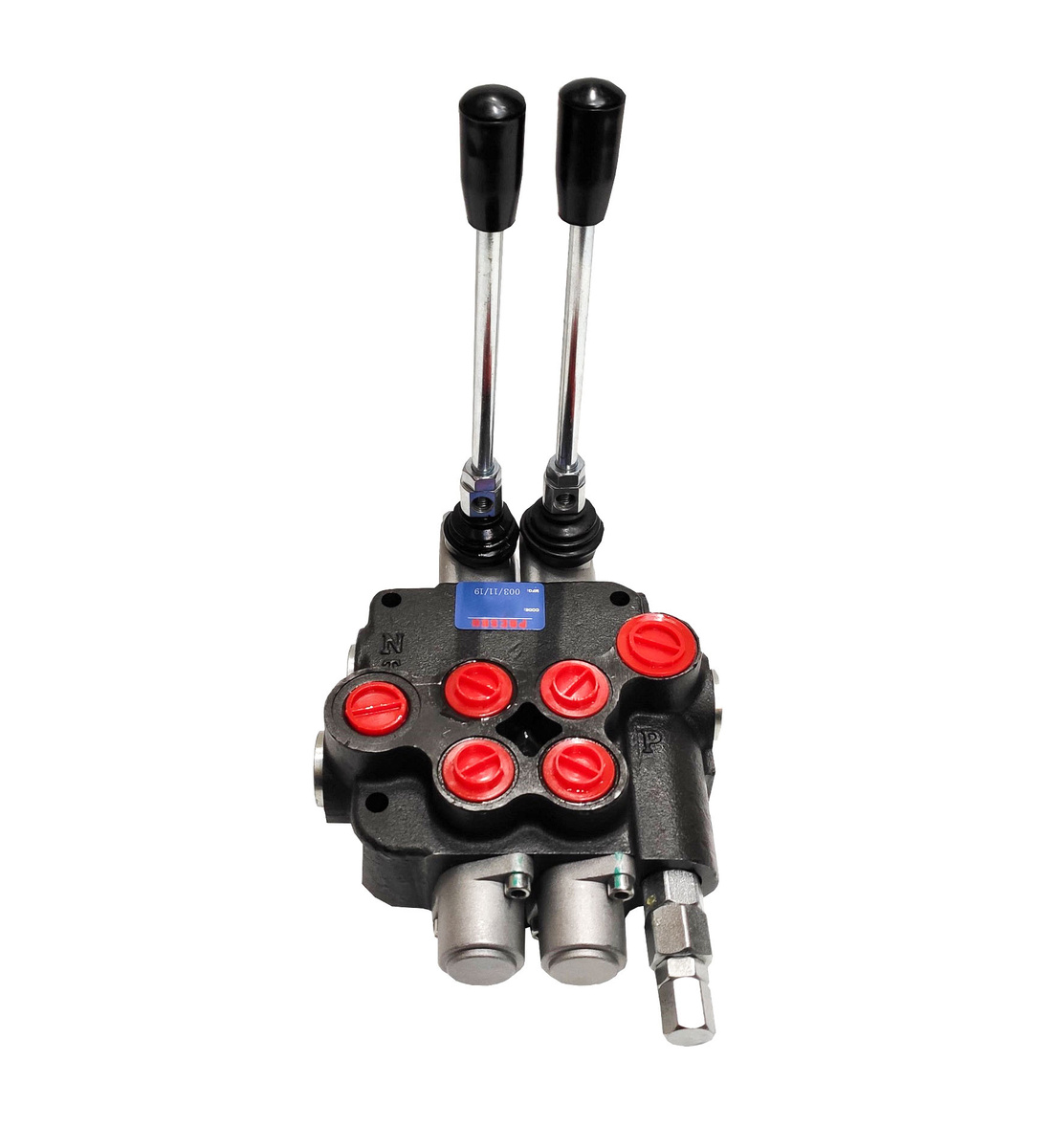

PRESKO Directional Control Valve, 2-way 40 l, pressure fitting
- PRESKO Directional Control Valve, 2-way 40 l/min., complete with pressure fitting
Directional Control Valve, 2-way 40 l/min., complete with pressure fitting
2 three-position levers (1-0-2) on a spring - levers automatically return to the neutral position.
The pressure sleeve allows connecting two DVCs in series.
The sleeve protects the first DCV from back pressure from the second DVC and maintains the nominal pressure on the second DVC.
TECHNICAL DATA
| Number of ways |
2 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
4,57 kg |
| Application | fluid power |
PORTING
Oil inlet BSP 1/2''
Oil outlet BSP 1/2''
Connection ports BSP 3/8''
Serial connection (to another directional control valve) BSP 1/2"
 |
The pressure fitting with gasket and oring Thread BSP 1/2" |
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
