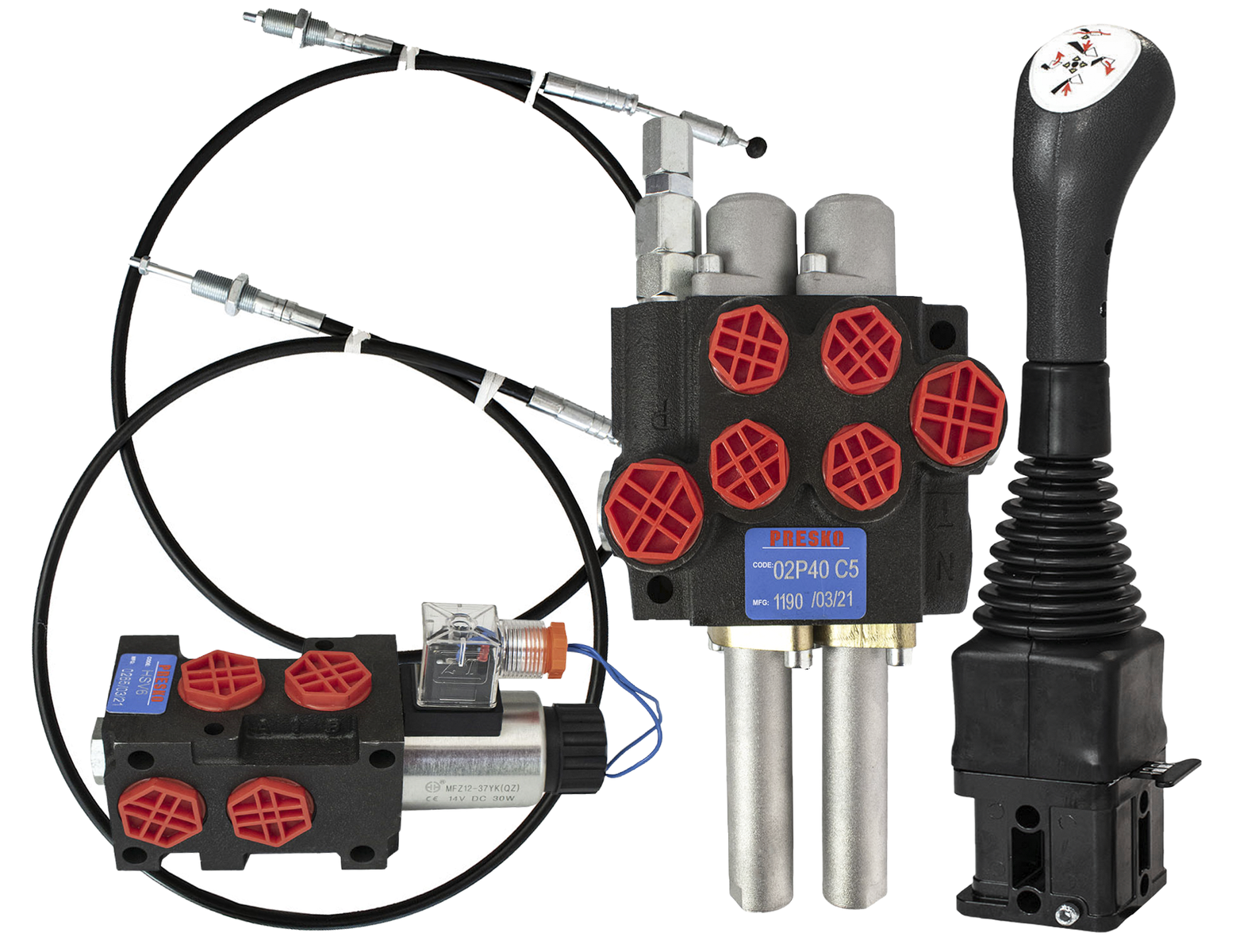

PRESKO Directional Control valve, 2 -way, cable steering 2x1,5 m, joystick, electricvalve
- PRESKO Directional control valve, 2 -way, cable steering (2x1,5m ), with joystick, with electricvalve. Used in agriculture, orchardry, forestry and construction.
High quality hydraulic directional control valve, 2-way, cable control 2 x 1,5 m, joystick, electricvalve
FEATURES
• PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
• High-quality materials used for production guarantee durability and smooth operation
• Solid and compact construction
• Easy mounting
• PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
TECHNICAL DATA
| Number of ways |
2 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
2,76 kg |
| Application | fluid power |
PORTING
Oil inlet - internal thread, BSP 1/2''
Oil outlet - internal thread BSP 1/2''
Connection ports - - internal thread, BSP 3/8''
Serial connection (to another directional control valve) - internal thread BSP 1/2"
Safety valve: 250 bar
THE SET INCLUDES
 |
|
 |
|
 |
|
|
ing temperature -20° to +70°Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
