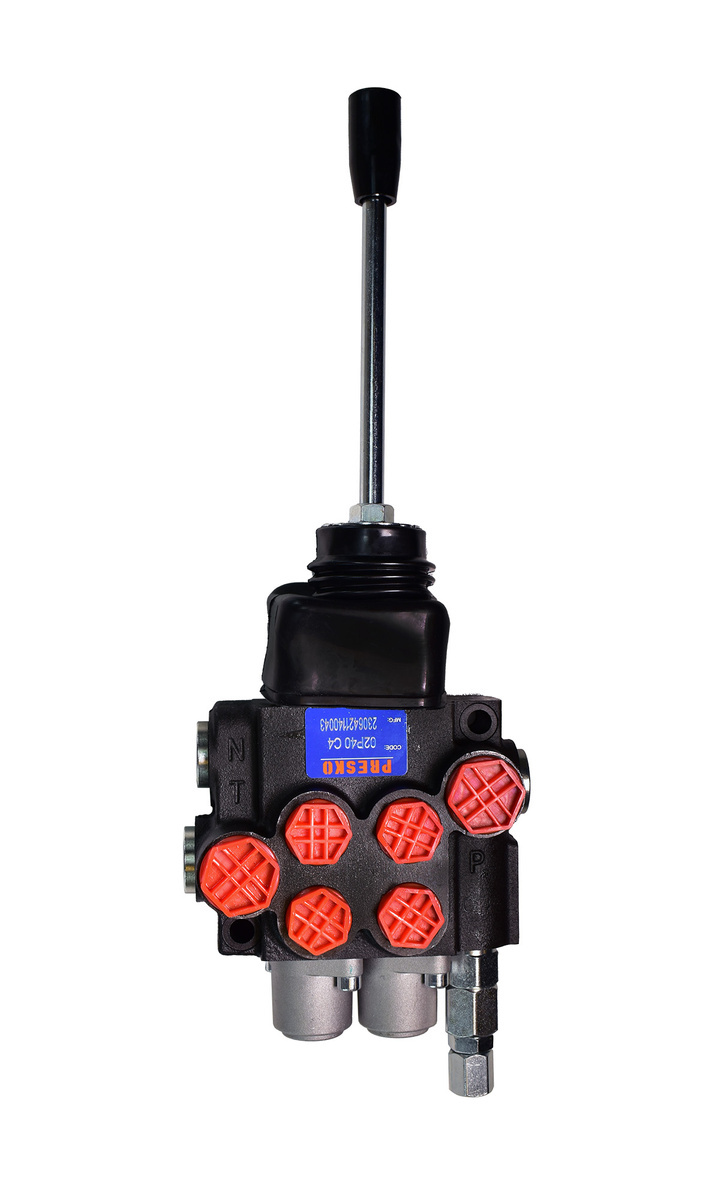

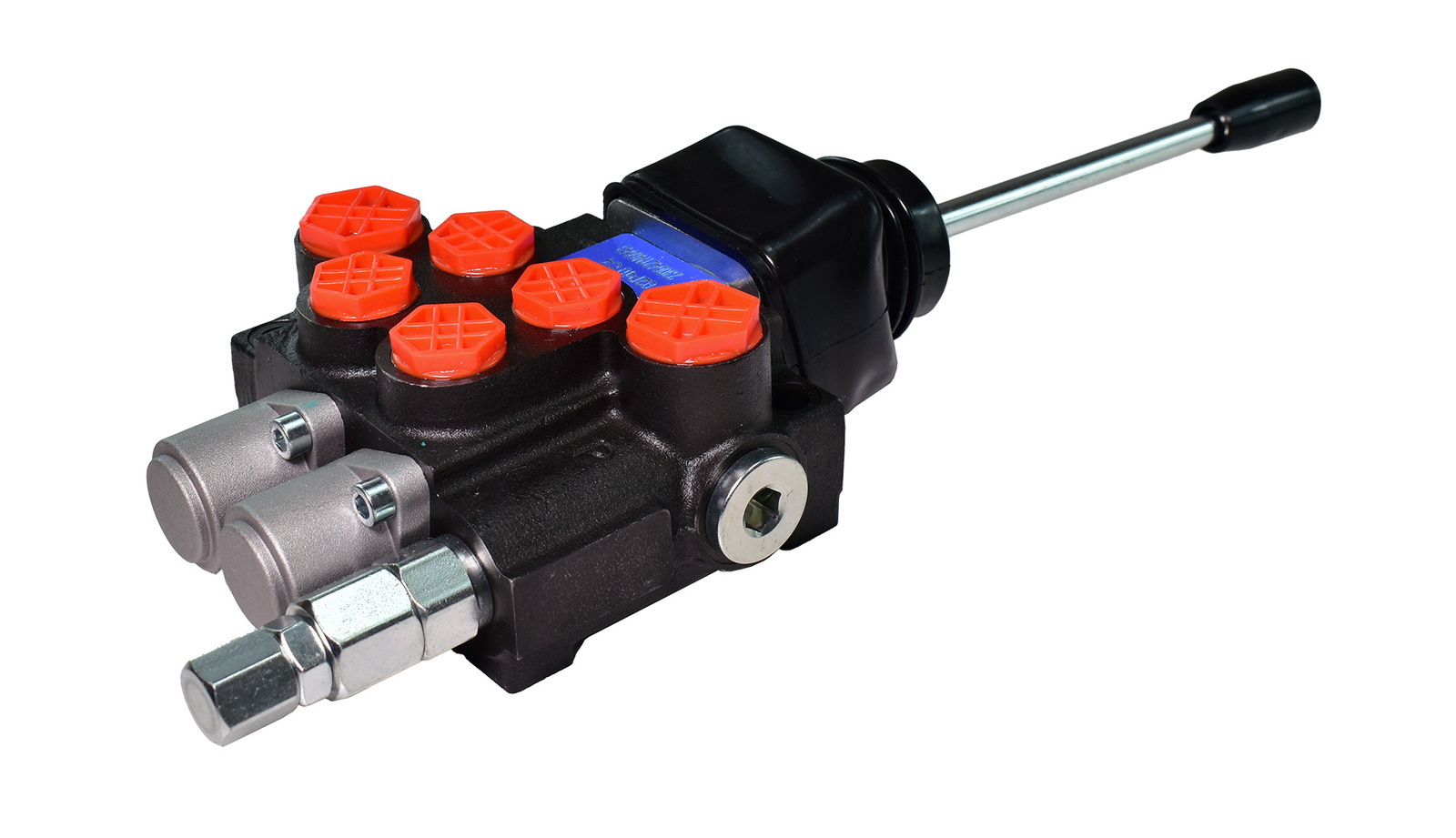

PRESKO Hydraulic Directional Control Valve, 2-way, 40 l, joystick, nipples
- PRESKO Hydraulic Directional Control Valve, 2-way, 40 l/min., joystick steering, complete with a set of nipples
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
High quality hydraulic directional control valve, 2-way, flow rate 40 l/min., joystick, a set of nipples
FEATURES
• PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
• High-quality materials used for production guarantee durability and smooth operation
• Solid and compact construction
• Easy mounting
• PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
• Equipped with a safety valve
5-positioned joystick (1-2-0-3-4) - 4 working positions position neutral 0 + the joystick returns to 0 automatically
TECHNICAL DATA
| Number of ways |
2 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Weight | 4,94 kg |
| Application | fluid power |
|

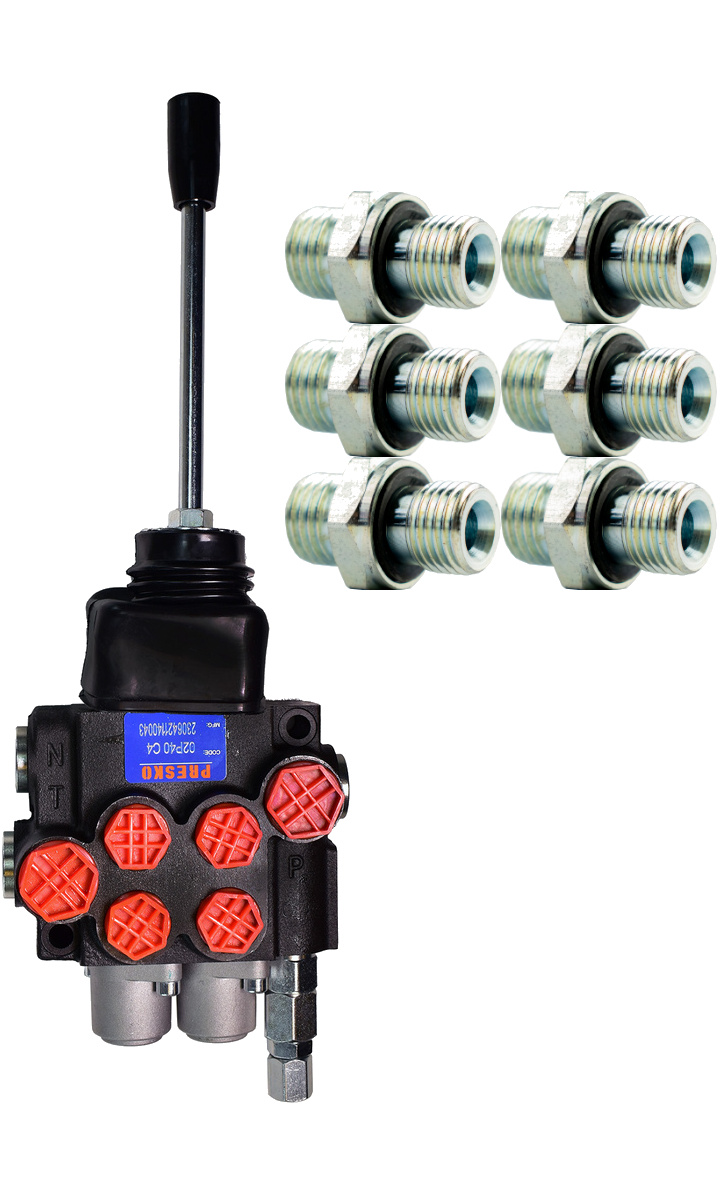

Joystick (1-2-0-3-4) A set of dedicated hose nipples:
|
PORTING
- Oil inlet - internal thread, BSP 1/2''
- Oil outlet - internal thread BSP 1/2''
- Connection ports - - internal thread, BSP 3/8''
- Serial connection (to another directional control valve) - internal thread BSP 1/2"
- Safety valve: 250 bar
TECHNICAL DRAWING
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
