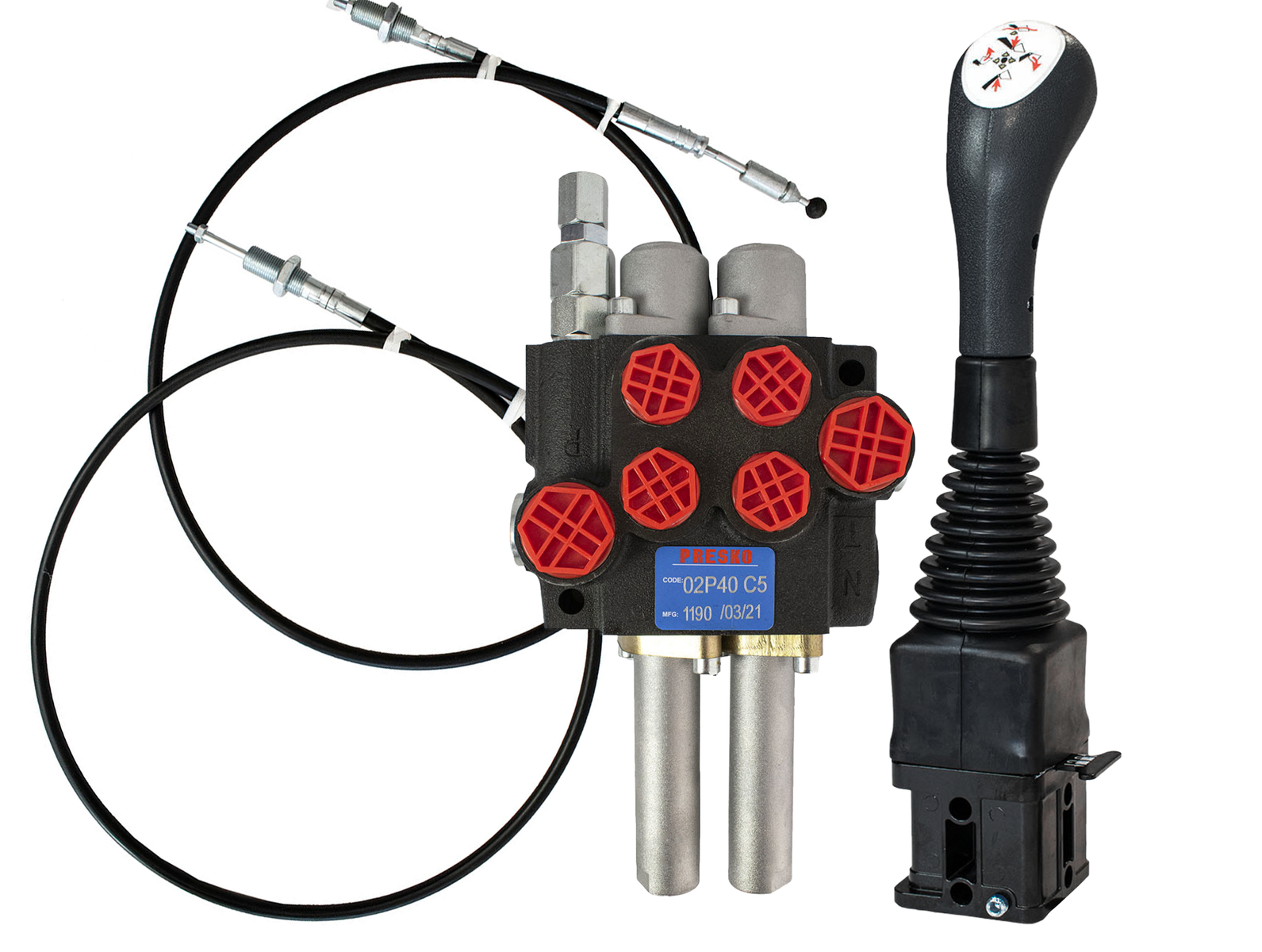

Presko Hydraulic Directional Valve 2-section with 1.5m cables KIT WITH JOYSTICK WITHOUT BUTTON

Hydraulic Directional Valve 2-section with cables KIT WITH JOYSTICK

Durable hydraulic Directional Valve brand PRESKO with joystick

Hydraulic Directional Valve is successfully used in agriculture, horticulture, construction and forestry. It is used in many machines and vehicles with hydraulic systems.

The sturdy joystick allows you to control from the cabin hydraulic Directional Valvemi four-ways located outside the cabin, providing comfort and precision.

Hydraulic Directional Valvee joystick-controlled machines are primarily used in Front loaderCH, but also:

- Tractors

- HDS loaders

- Sweepers

- Excavators

- Cyclops

- Forklift trucks

- Sprayers

- Presses

- Agricultural machines and many others

Technical specifications

Connection:

Pump supply (P) : BSP 1/2'' female thread

Return to tank (T) : BSP 1/2'' female thread

Output to sections : BSP 3/8'' female thread

Serial connection (N) : internal thread BSP 1/2''

Hydraulic Directional Valve Presko 02P40 C5, 2-section

You will find professional hydraulic Directional Valve brand PRESKO with designation 02P40 C5. the 2-section design is characterized by high reliability and resistance to mechanical damage. It can operate at a pressure of 250 bar and a maximum flow rate of 40 l/min. It has a section spacing of 35 mm and an empty weight of 2.76 kg.

The products available in our store are used in many fields of power hydraulics and are part of the design of agricultural, construction, forestry and industrial machinery - sweepers, loaders, tractors and others. If you are looking for robust and affordable hydraulic Directional Valvey hydraulic 3-section, contact your sales consultant and take advantage of our assortment!

	Durable hydraulic Directional Valve brand Presko: 2 sections Flow rate of 40l Maximum pressure 250bar Safety valve setting 180bar Supply 1/2'' Return 1/2'' Outlet to sections 3/8''
	Joystick: Constructed of durable plastic Aluminum alloy base Cable hole - 14mm diameter M8 safety pin Applied safety mechanism that locks the movement of the joystick head
	Two cables: 2 x 1.5m Used to connect hydraulic Directional Valve to joystick with ball system Protective armor

WHAT DISTINGUISHES OUR PRODUCT?

It is characterized by many positive properties, including:

- high limit working pressure of 250 bar,

- maximum flow rate, amounting to 40 l/min,

- optimal section spacing of 35 mm,

- low empty weight of 2.76 kg.

The product allows easy control of the oil flow in the system and can be combined into larger systems through pressure sleeves. It is used in many power hydraulic solutions. If you are looking for professional and cheap hydraulic Directional Valvey hydraulic - contact us and choose the best model for your machine!

Hydraulic Directional Valve Presko 02P40 C5, 2-section

You can find professional hydraulic Directional Valve brand PRESKO with the designation 02P40 C5. the 2-section design is characterized by high reliability and resistance to mechanical damage. It can operate at a pressure of 250 bar and a maximum flow rate of 40 l/min. It has a section spacing of 35 mm and an empty weight of 2.76 kg.

The products available in our store are used in many fields of power hydraulics and are part of the design of agricultural, construction, forestry and industrial machinery - sweepers, loaders, tractors and others. If you are looking for reliable and inexpensive hydraulic Directional Valvey hydraulic 3-section, contact your sales consultant and use our assortment!

Note: The technical and operational parameters of the product listed above are for information purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
