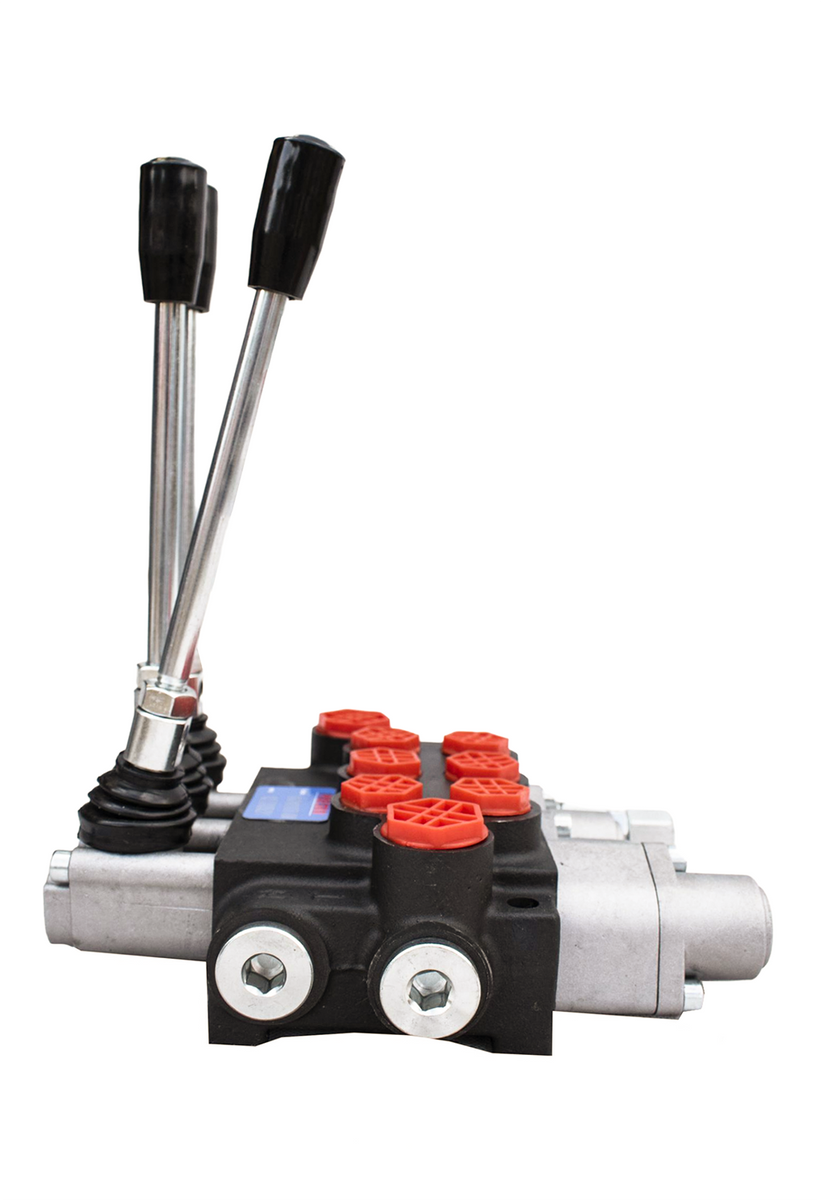

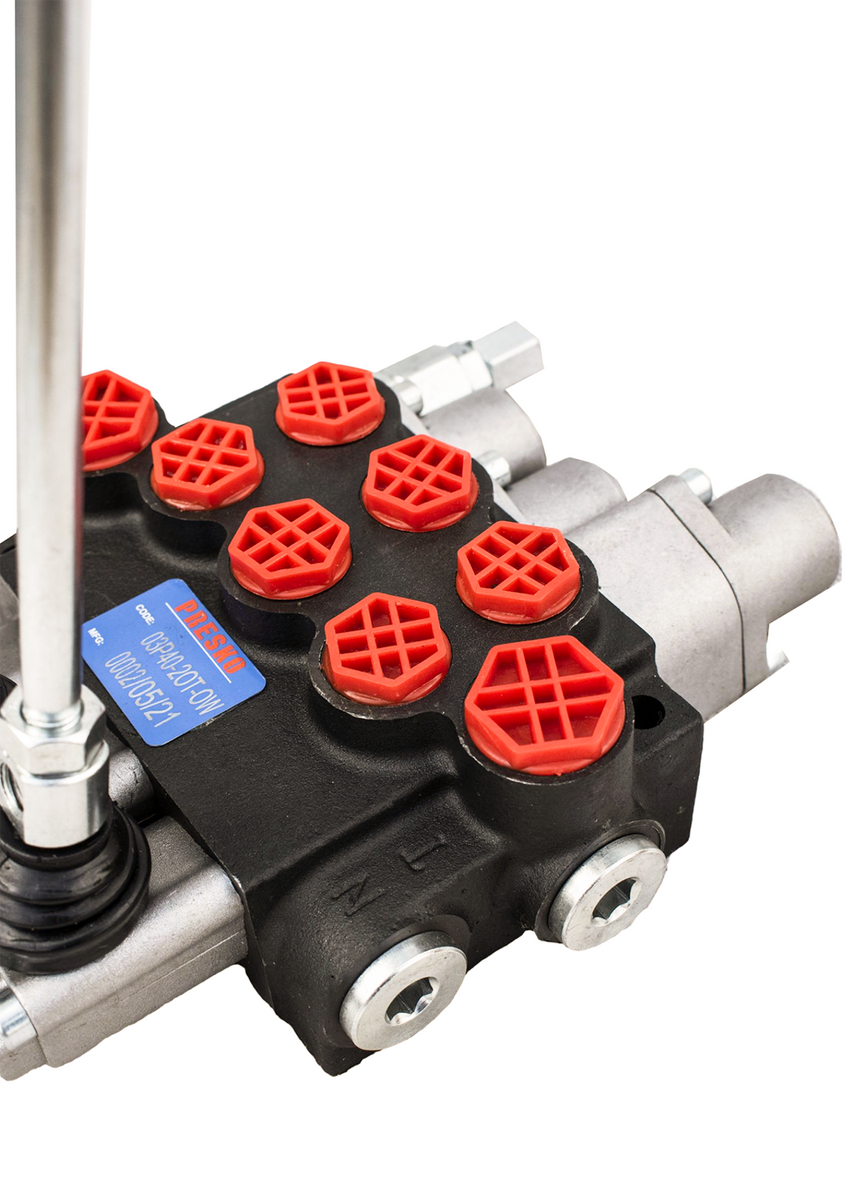

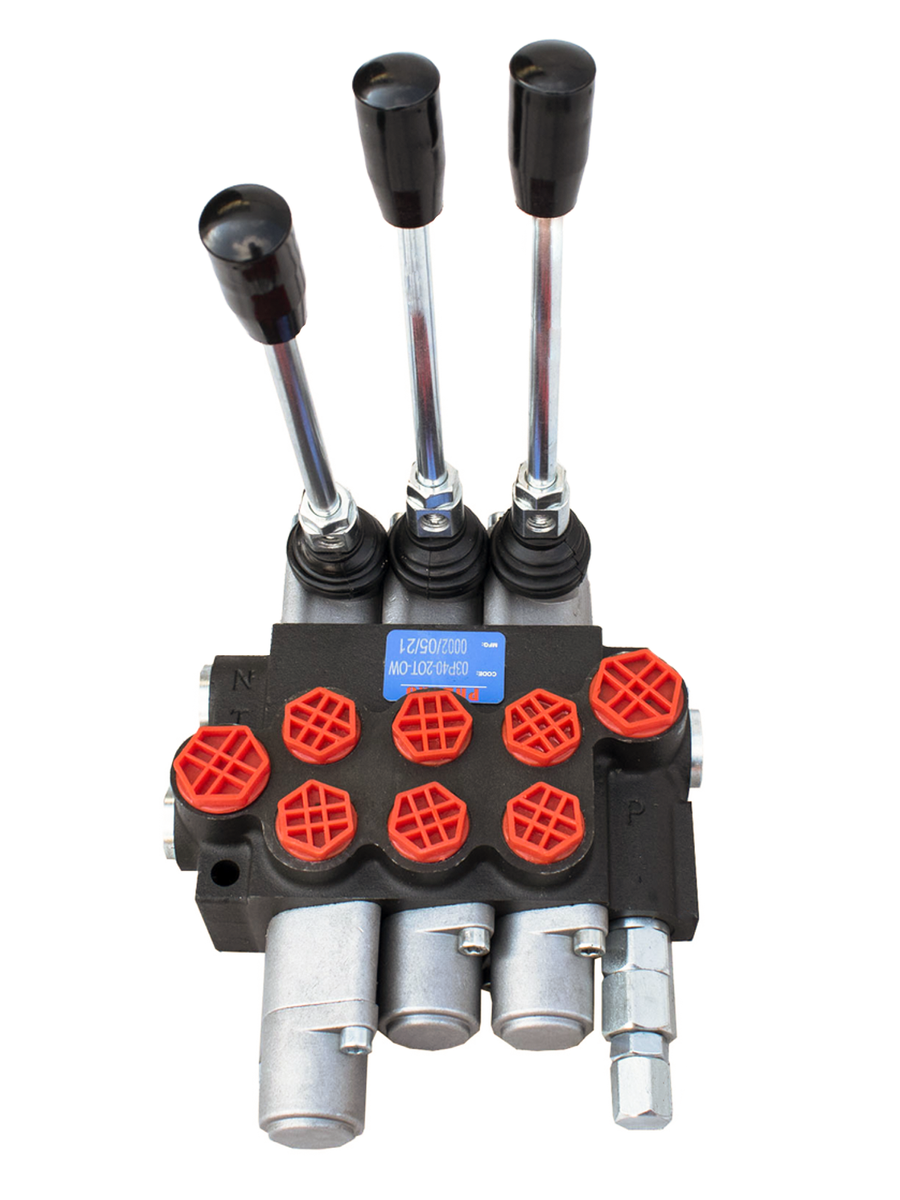

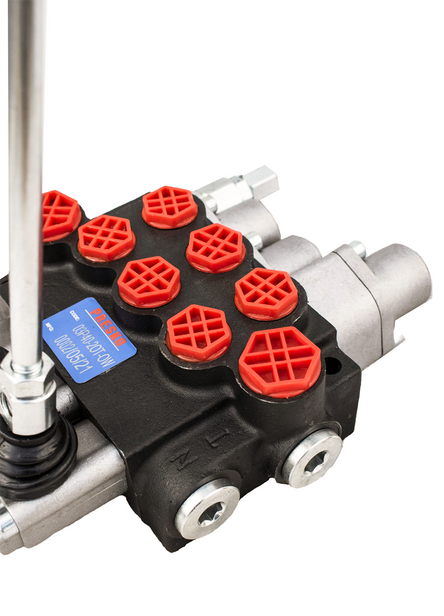

Hydraulic Directional Valve 3-SECTION 40L WITH ONE Floating section + NIPPLES
Durable hydraulic Directional Valve brand PRESKO
Hydraulic Directional Valve is successfully used in agriculture, horticulture, construction, forestry and road work equipment.
It is used in many machines and vehicles with hydraulic systems.
The first two sections are controlled by three-position levers (1-0-2) on a spring, so that the lever automatically returns to the neutral position when released.
The third section is floating section, which allows free movement of the piston rod in the hydraulic cylinders, so that elements in contact with the ground (such as a snowplow), freely float on small irregularities, which guarantees safe and stable operation of the device. Thanks to the latch on floating section, the operator does not have to constantly keep his hand on the lever.
Hydraulic Directional Valvee are primarily used in:
- Snow plows
- Front loaderch
- Tractors
- Sweepers
- Excavators
- Agricultural machinery and many others
Set of dedicated sealed connection nipples:
- - 2 x hose Protection Cover 1/2'' - M22x1.5 - sealed on 1/2'' side (for supply and return)
- - 4 x hose Protection Cover 3/8'' - M18x1.5 - sealed on the 3/8'' side (for exit to sections)
Seals adapted for use with hydraulic oils.
BASIC DATA
| Number of sections |
3 |
| Pressure relief valve setting | 180 bar |
| Maximum pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Section spacing | 35 mm |
| Own weight |
6.07 kg |
| Typical applications | power hydraulics |
| Floating section on the third section |
|
Connection:
Pump supply (P1, P2) : BSP 1/2'' female thread
Return to tank (T1, T2) : BSP 1/2'' female thread
Output to sections (A1, A2, B1, B2) : internal thread BSP 3/8''
Serial connection (N) : internal thread BSP 1/2''
Safety valve: Z
Durable hydraulic Directional Valve by Presko:
- Robust and compact design
- Two sections with spring-loaded lever and third floating section with latch - hydraulic Directional Valve ideal for snowplows
- Allows series connection to another hydraulic Directional Valve with a pressure screw
- Possibility of self-adjustment of lever position relative to hydraulic Directional Valve

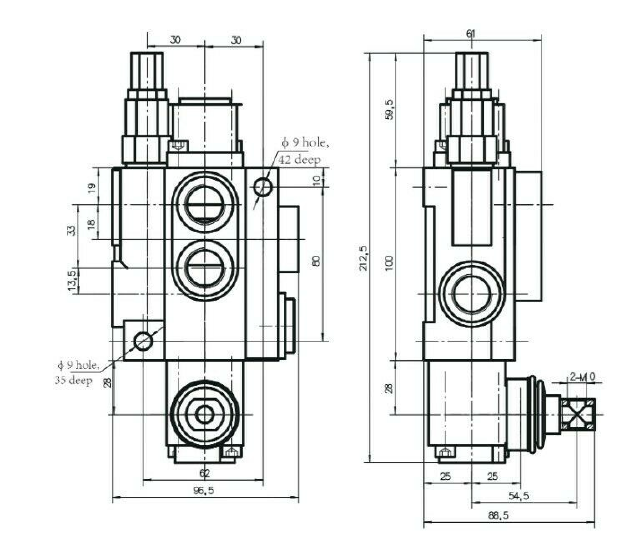

TECHNICAL DRAWING
Note: The technical and operational parameters of the product given above are for information purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
