PRESKO Directional Control Valve 2-way, one float position, 40 l, joystick and cables (2x2m)
- PRESKO Directional Control Valve 2-way, one float position, 40 l/min., joystick and cables (2x2m)

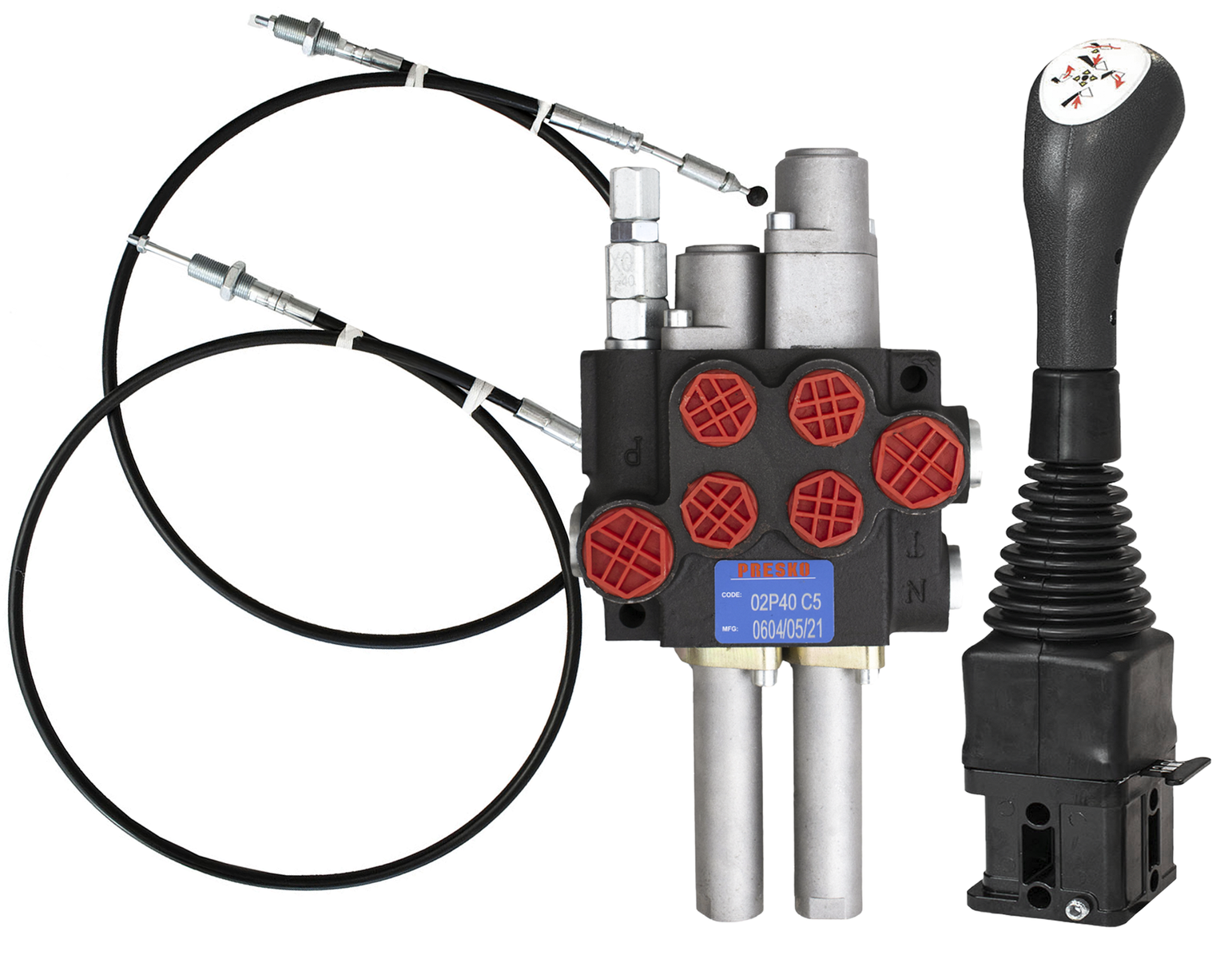

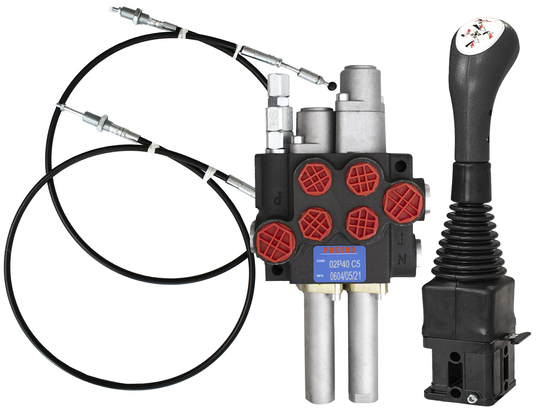

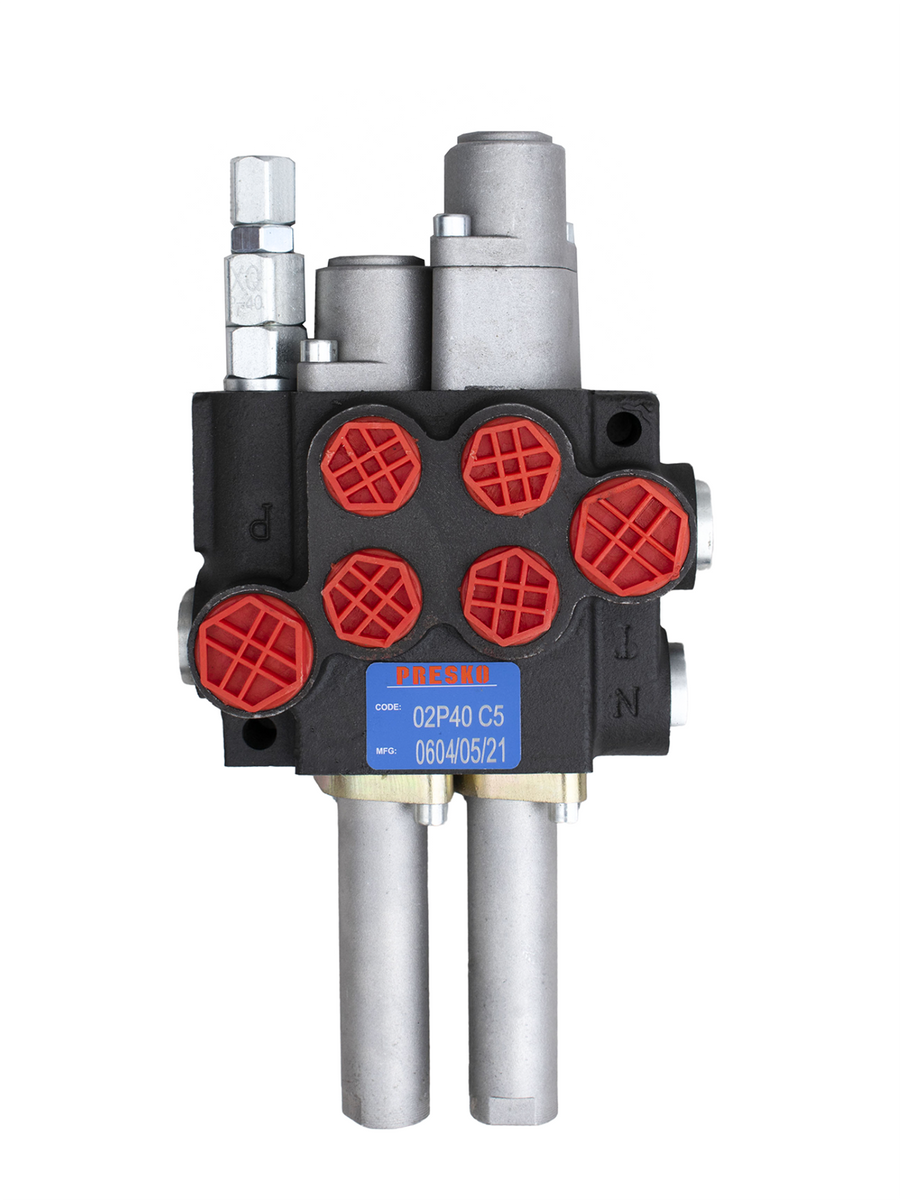

High quality hydraulic directional control valve, 2-way, float position, cable control 2 x 2 m, joystick
FEATURES
- One FLOAT position
- PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
- High-quality materials used for production guarantee durability and smooth operation
- Solid and compact construction
- Easy mounting
- PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
TECHNICAL DATA
| Number of ways | 2 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
4,57 kg |
| Application | fluid power |
PORTING
- Oil inlet - internal thread, BSP 1/2''
- Oil outlet - internal thread BSP 1/2''
- Connection ports - - internal thread, BSP 3/8''
- Serial connection (to another directional control valve) - internal thread BSP 1/2"
- Safety valve: 250 bar
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
To download
Brand
Entity responsible for this product in the EU
HeweaSp. z o.o.More
ProducerHeweaSp. z o.o.Address:
Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress:
Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
P40-2-OT-QW C5;LINKA 2,0 METRA K-PZK[2];JOYST
Producer code
P40-2-OT-QW C5;LINKA 2,0 METRA K-PZK[2];JOYSTICK PK
