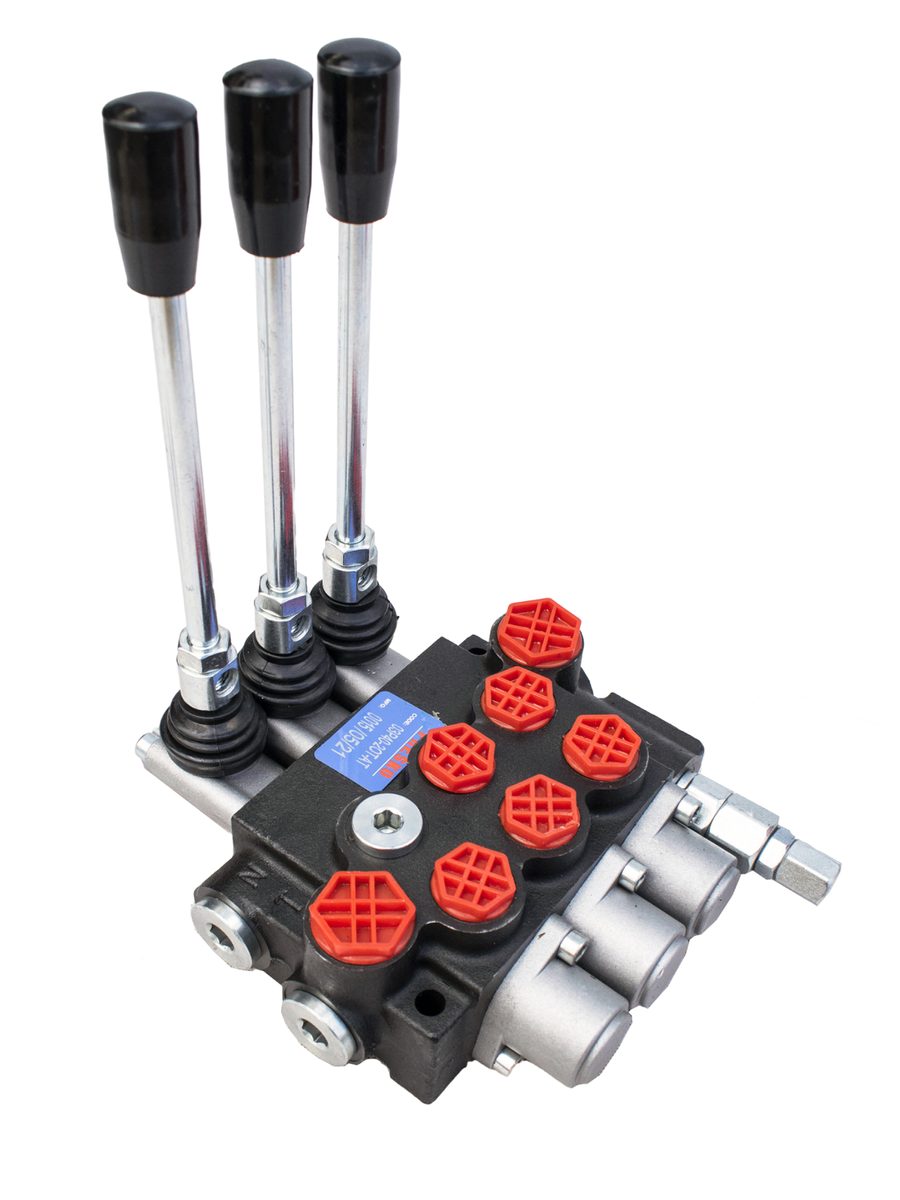

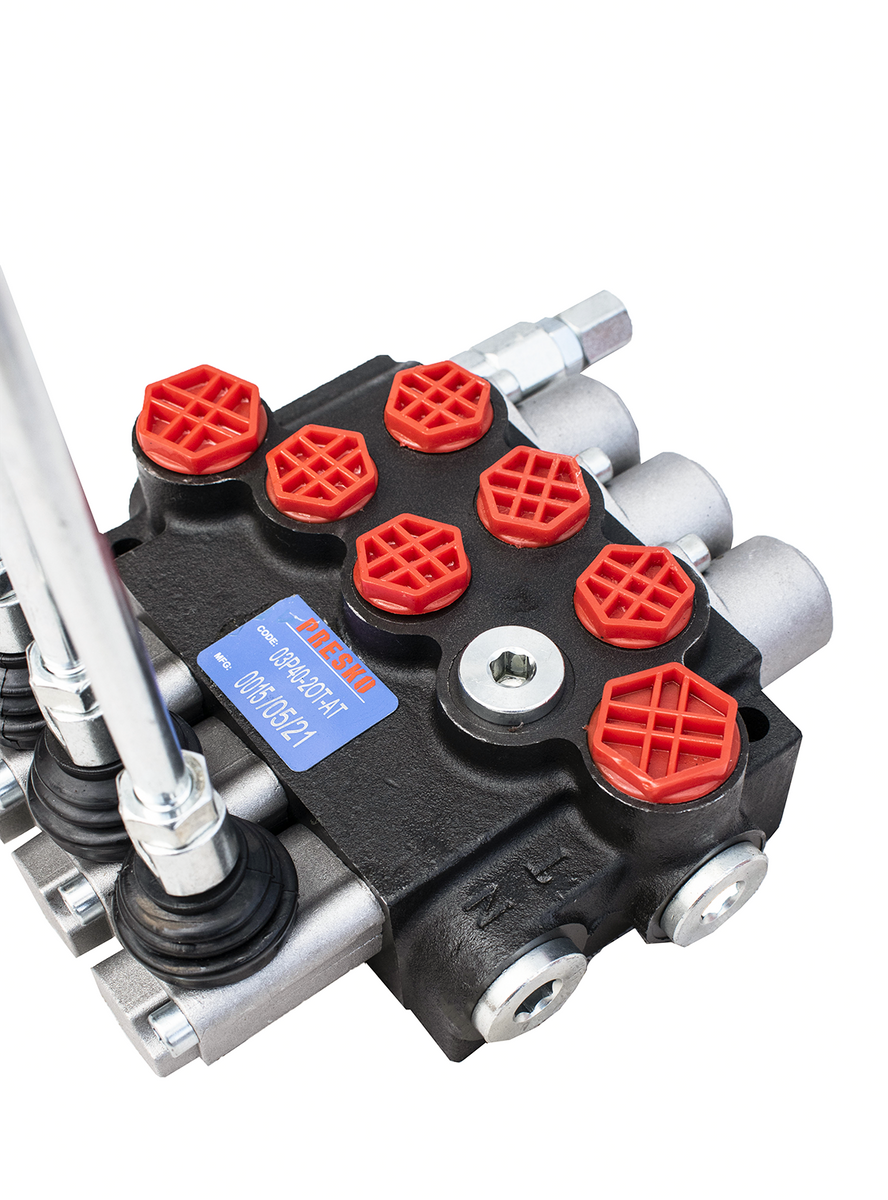

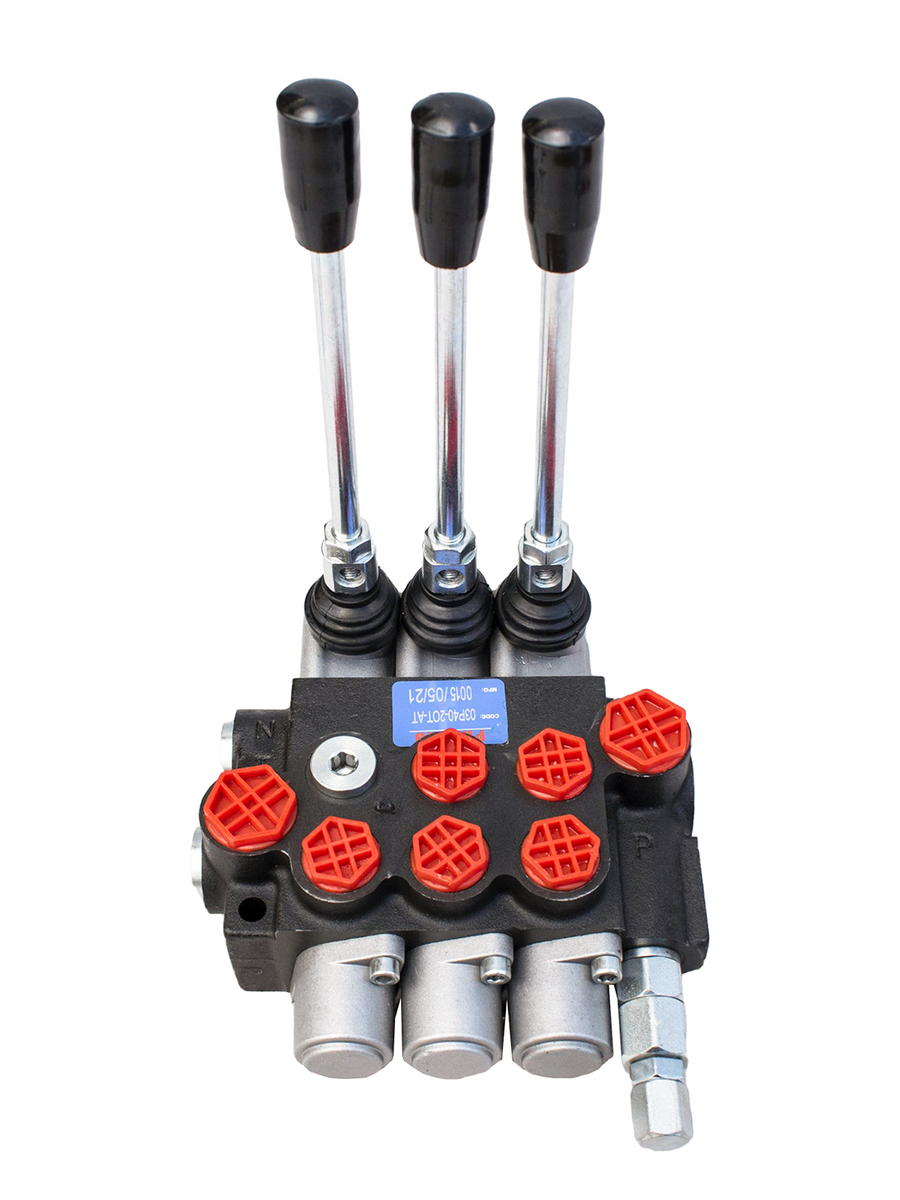

PRESKO Directional Control Valve 3-way 40 l with plunger section
- PRESKO Directional Control Valve, 3-way, 40 l /min., with plunger section
High quality hydraulic directional control valve, 3-way, cable control, flow rate 40 l/min., plunger section
First and second section on a spring - the 3-position levers (1-0-2) automatically return to the neutral position
The third section with a plunger - dedicated to single-acting cylinders.
FEATURES
- With plunger section - dedicated to single-acting cylinders.
- PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
- High-quality materials used for production guarantee durability and smooth operation
- Solid and compact construction
- Easy mounting
- PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
- Equipped with a safety valve
TECHNICAL DATA
| Number of ways | 3 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
6 kg |
| Application | fluid power |
PORTING
- Oil inlet - internal thread, BSP 1/2''
- Oil outlet - internal thread BSP 1/2''
- Connection ports - - internal thread, BSP 3/8''
- Serial connection (to another directional control valve) - internal thread BSP 1/2"
- Safety valve: 250 bar

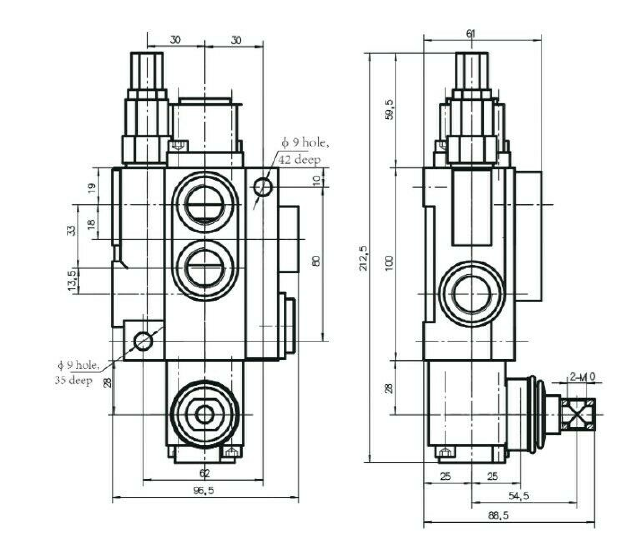

TECHNICAL DRAWING
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
Entity responsible for this product in the EU
HeweaSp. z o.o.More
ProducerHeweaSp. z o.o.Address:
Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress:
Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
03P40-2OT-AT
Producer code
5903940622910
