PRESKO Directional Control Valve 4-way 40 l, 2 joysticks
tel:882 037 352
e-mailagro@hewea.com
PRESKO Directional Control Valve 4-way 40 l, 2 joysticks
- PRESKO Directional Control Valve 4-way 40 l/min, 2 joysticks
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
High quality hydraulic directional control valve, 4-way, 2 joysticks, flow rate 40 l/min.
FEATURES
- PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
- Both joysticks have 4 working positions 1-2-0-3-4 (up, down, left, right) and a neutral position 0 - the lever automatically returns to 0 position when released.
- Dedicated to machines that require precise control of several actuators, such as excavators, tractors, chargers, production lines, wrappers, sweepers, etc.
- High-quality materials used for production guarantee durability and smooth operation
- Solid and compact construction
- Easy mounting
- PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
- Equipped with a safety valve
TECHNICAL DATA
| Number of ways | 4 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
7,94 kg |
| Application | hydraulika siłowa |
PORTING
- Oil inlet - internal thread, BSP 1/2''
- Oil outlet - internal thread BSP 1/2''
- Connection ports - - internal thread, BSP 3/8''
- Serial connection (to another directional control valve) - internal thread BSP 1/2"
- Safety valve: 250 bar

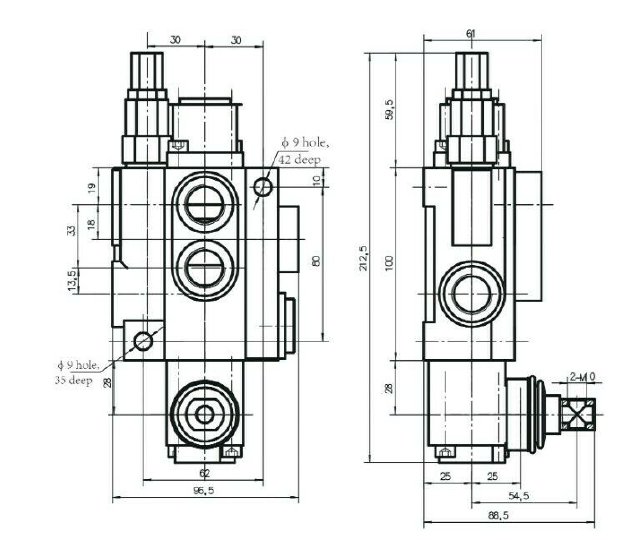

TECHNICAL DRAWING
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
Entity responsible for this product in the EU
HEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄMore
ProducerHeweaSp. z o.o.Address:
Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress:
Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
04P40 C4
Producer code
5903940622927
