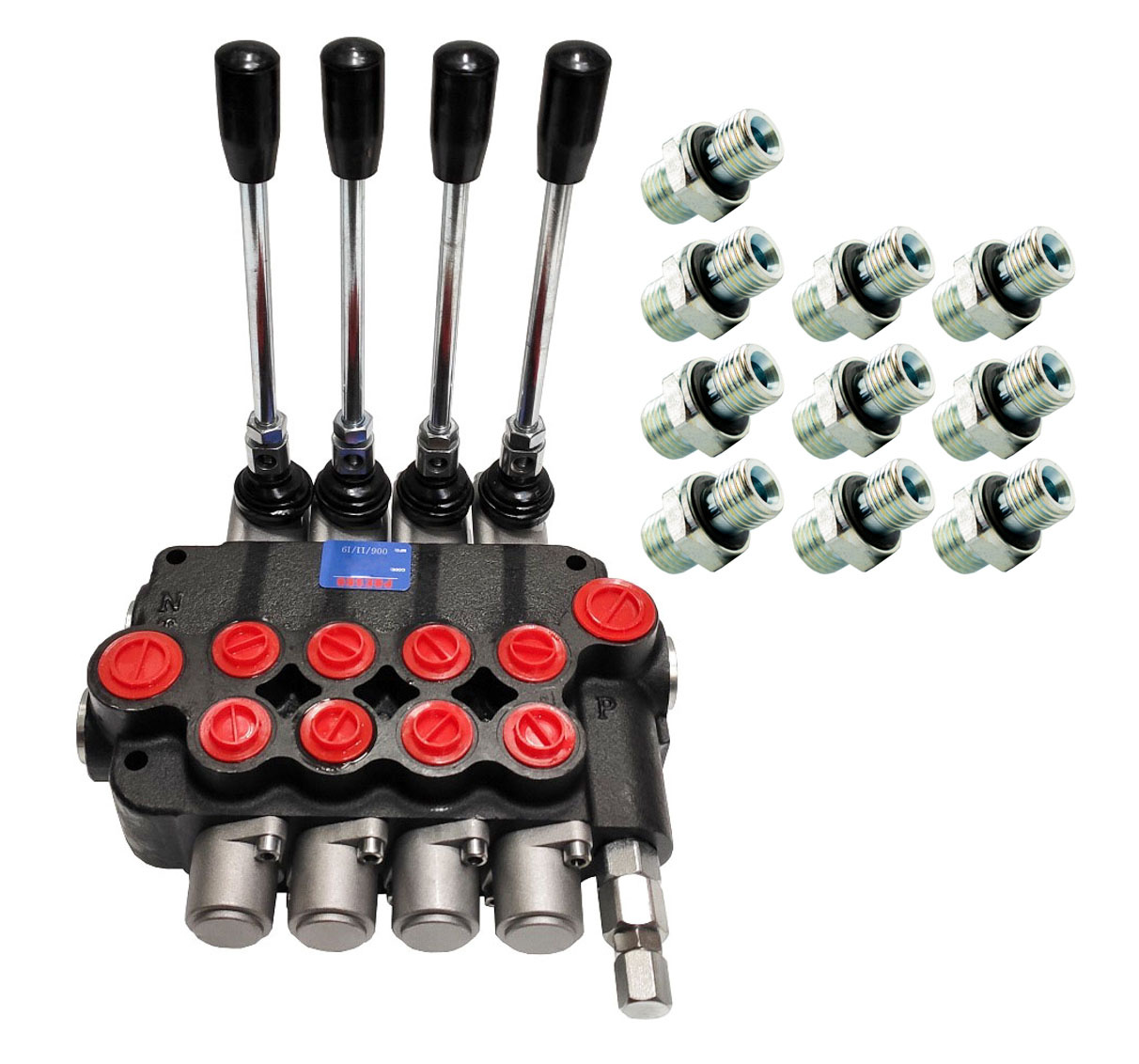

High quality hydraulic directional control valve, 4 -way, flow rate 40 l/min., with a complete set of nipples



  • FEATURES

    • PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
    • High-quality materials used for production guarantee durability and smooth operation
    • Solid and compact construction
    • Easy mounting
    • Equipped with a safety valve
    • The lever can be installed in three different ways depending on needs

    Complete set of hose nipples for convenient connection of the valve to the hydraulic system.

    PRESKO directional control valve can be also connected with another valve with a pressure fitting - available in our shop.



TECHNICAL DATA

Number of ways
 4
Safety valve setting 180 bar
Maximum operating pressure 250 bar
Maximum flow rate 40 l/min
Spacing between sections 35 mm
Weight

6,07 kg
Application

fluid power
Complete set of nipples
  • 2 x 1/2'' - M22x1,5 - gasket on 1/2'' (inlet and outlet)
  • 8 x 3/8'' - M18x1,5 - gasket 3/8'' (connection ports)





PORTING

  • Oil inlet - internal thread, BSP 1/2''
  • Oil outlet - internal thread BSP 1/2''
  • Connection ports - - internal thread, BSP 3/8''
  • Serial connection (to another directional control valve) - internal thread BSP 1/2"
  • Safety valve: 250 bar



 Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.



To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
PRESKO
Entity responsible for this product in the EU
HEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄMore
ProducerHeweaSp. z o.o.Address: Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress: Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
04P40 + 1CB-22-08WD + 1CB-18-06WD
