PRESKO Directional Control Valve  5-way + nipples for C 330 C-330 URSUS
PRESKO Directional Control Valve  5-way + nipples for C 330 C-330 URSUS
PRESKO Directional Control Valve  5-way + nipples for C 330 C-330 URSUS
PRESKO Directional Control Valve  5-way + nipples for C 330 C-330 URSUS

PRESKO Directional Control Valve 5-way + nipples for C 330 C-330 URSUS

  • PRESKO Directional Control Valve 5-way + nipples for C 330 C-330 URSUS
105,58 €
incl. VAT / item
Regular price / item
of
Product in stock in very large quantities
Product in stock in very large quantities
14 days for easy returns
Find out in which store you can check the product and buy it right away
PRESKO Directional Control Valve  5-way + nipples for C 330 C-330 URSUS
PRESKO Directional Control Valve 5-way + nipples for C 330 C-330 URSUS
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from €11.58 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order €11.58 are for free.
Free delivery includes parcel delivery to a parcel machine
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

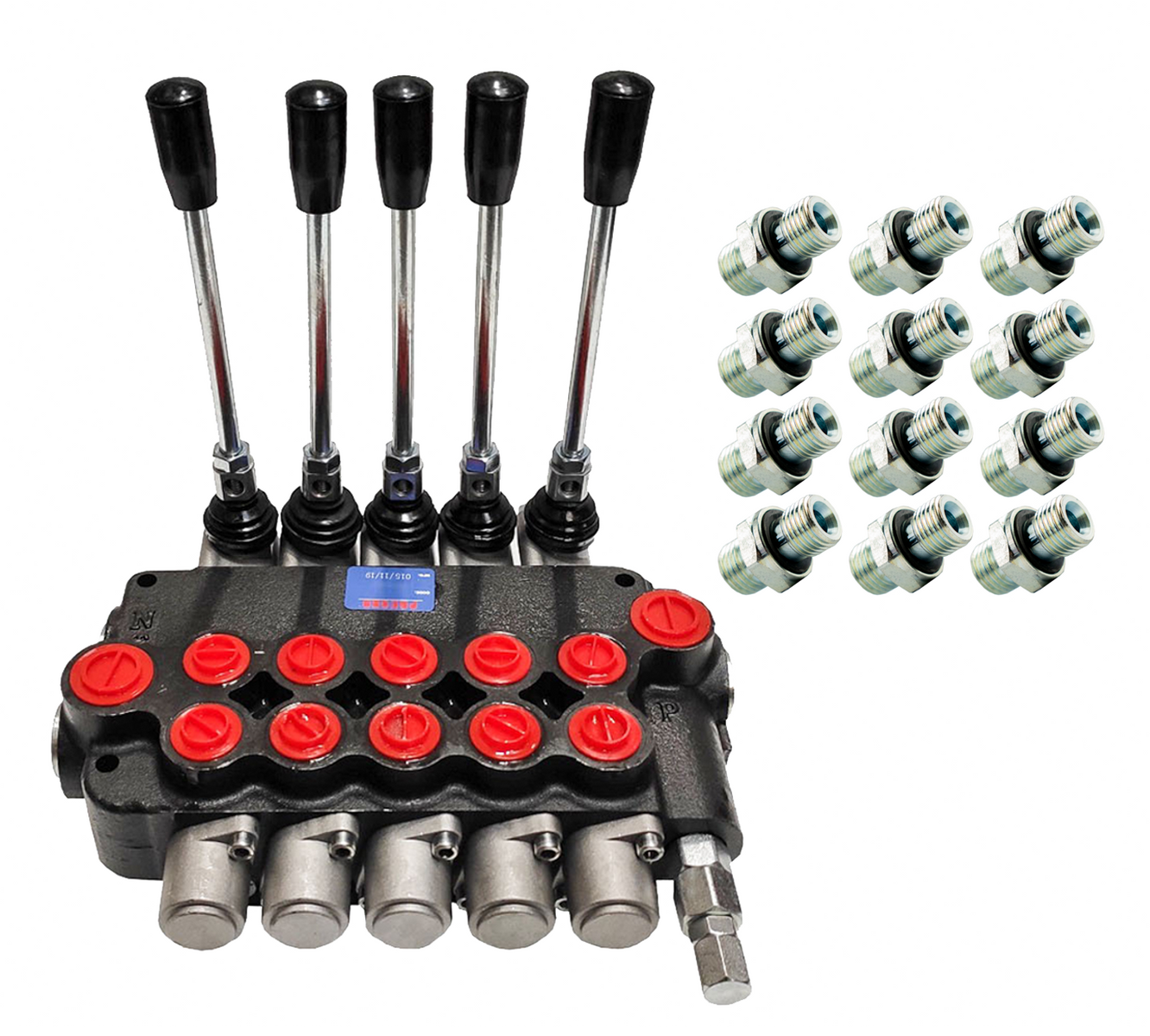

 High quality hydraulic directional control valve, 5-way, flow rate 40 l/min., with a complete set of nipples. Dedicated to  C 330 C-330 URSUS





 FEATURES

  • PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
  • High-quality materials used for production guarantee durability and smooth operation
  • Solid and compact construction
  • Easy mounting
  • Equipped with a safety valve
  • The lever can be installed in three different ways depending on needs



Complete set of hose nipples for convenient connection of the valve to the hydraulic system.

PRESKO directional control valve can be also connected with another valve with a pressure fitting - available in our shop.



TECHNICAL DATA

Number of ways
5
Safety valve setting 180 bar
Maximum operating pressure 250 bar
Maximum flow rate 40 l/min
Spacing between sections 35 mm
Weight

9,11 kg

Application

fluid power

Complete set of nipples
  • 2 x 1/2'' - M22x1,5 - gasket on 1/2'' (inlet and outlet)
  • 10 x 3/8'' - M18x1,5 - gasket 3/8'' (connection ports)





PORTING

  • Oil inlet - internal thread, BSP 1/2''
  • Oil outlet - internal thread BSP 1/2''
  • Connection ports - - internal thread, BSP 3/8''
  • Serial connection (to another directional control valve) - internal thread BSP 1/2"
  • Safety valve: 250 bar

 Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.

To download
Brand
Symbol
05P40 + 1CB-22-08WD + 1CB-18-06WD
