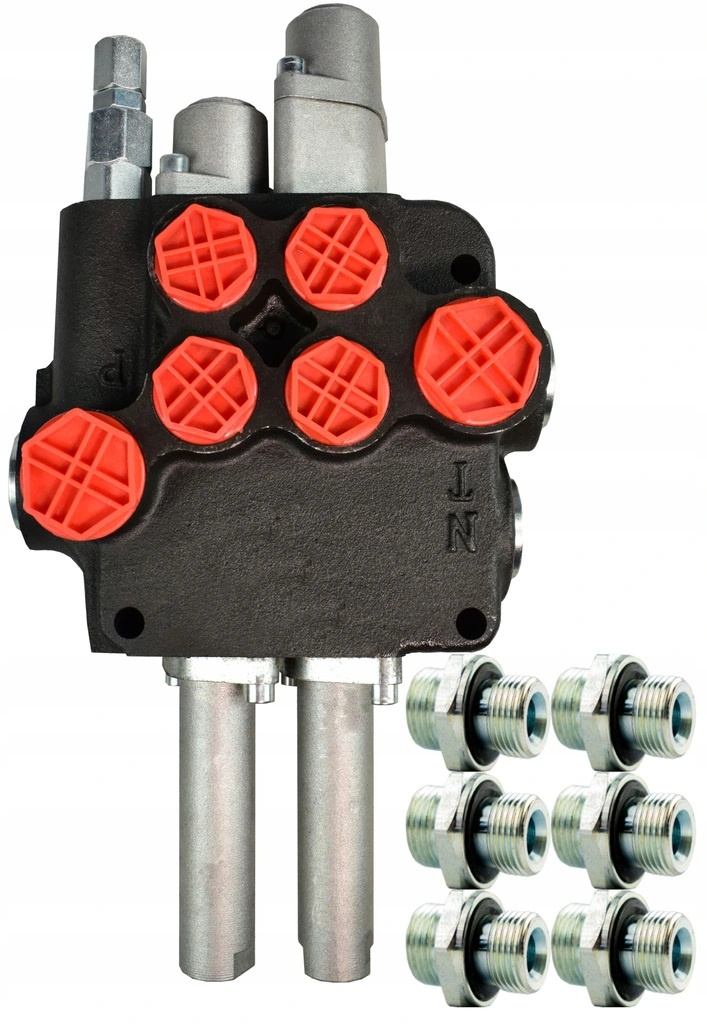

PRESKO Hydraulic Directional Control Valve, 2-way, 80 l, 1 float position and nipples
- PRESKO Hydraulic Directional Control Valve, 2-way, 80 l/min., float position and a dedicated set of hose nipples
High quality hydraulic directional control valve, 2 -way, flow rate 80 l/min., float position
FEATURES
- FLOAT position with a detent
- Perfect for snow plows
- The lever can be installed in three different ways depending on needs
- PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
- High-quality materials used for production guarantee durability and smooth operation
- Solid and compact construction
- Easy mounting
- PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
- Equipped with a safety valve
First section: 3-positioned lever on a spring (1-0-2), the lever returns to 0 position automatically
Second section: float
A dedicated set of hose nipples:
- 4 x 1/2'' - M22 x 1,5 - gasket on 1/2'' (inlet and outlet)
- 2 x 3/4'' - M22 x 1,5 - gasket on 3/4'' (connection ports)
TECHNICAL DATA
Number of ways |
2 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow rate | 80 l/min |
| Spacing between sections | 38 mm |
| Weight |
7,9 kg |
| Application | fluid power |
|
Float section with detent A dedicated set of hose nipples:
|
|
PORTING
- Oil inlet - internal thread, BSP BSP 3/4''
- Oil outlet - internal thread BSP BSP 3/4''
- Connection ports - internal thread, BSP BSP 1/2''
- Serial connection (to another directional control valve)internal thread, BSP 3/4"
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
