Hydraulic Directional Valve Presko 04P40, 4-section
- Hydraulic Directional Valve Presko 04P40 monoblock designed for use in agricultural machinery.
HIGH QUALITY Hydraulic Directional Valve BRAND PRESKO, FOUR SEQUENCE, with lever control, with a flow rate of 40l/min.
BASIC DATA:
- Number of sections: 4
- Maximum pressure: 250 bar
- Maximum flow: 40 l/min
- Section spacing: 35 mm
- Weight: 7.68 kg
- Typical application: power hydraulics
- Monobloc
KEY FEATURES:
- Robust and compact monoblock design
- Easy installation
- Design allows series connection to another hydraulic Directional Valve with a pressure screw
- Self-adjustable lever positioning relative to hydraulic Directional Valve
- Equipped with a safety valve
- High-quality materials used in production guarantee long and trouble-free operation
- Hydraulic Directional Valvee PRESKO are used by many Polish and foreign manufacturers of agricultural, construction and industrial equipment.
Four three-position levers on a spring - the levers automatically return to the neutral position, immediately after taking your hand from them:
- Position 0 neutral - oil is directed to the overflow
- Position 1 working (up) - oil flow - in case of cylinder the piston rod moves out.
- Position 2 working (down) - oil flow - in case of cylinder the piston rod retracts.
BASIC DATA
| Number of sections |
4 |
| Safety valve setting | 180 bar |
| Maximum pressure | 250 bar |
| Maximum flow rate | 40 l/min |
| Section spacing | 35 mm |
| Own weight | 7.68 kg |
| Typical applications | power hydraulics |
Connection:
Pump supply (P) : BSP 1/2'' female thread
Return to tank (T) : BSP 1/2'' female thread
Output to sections : BSP 3/8'' female thread
Serial connection (N) : internal thread BSP 1/2''
APPLICATIONS:
Our hydraulic Directional Valvee are successfully used in agriculture, horticulture, forestry or construction.
Designed to work in: agricultural, industrial, construction machinery, tractors, sprayers, sweepers, HDS, loaders, excavators, front loaderch, cyclops and many others.

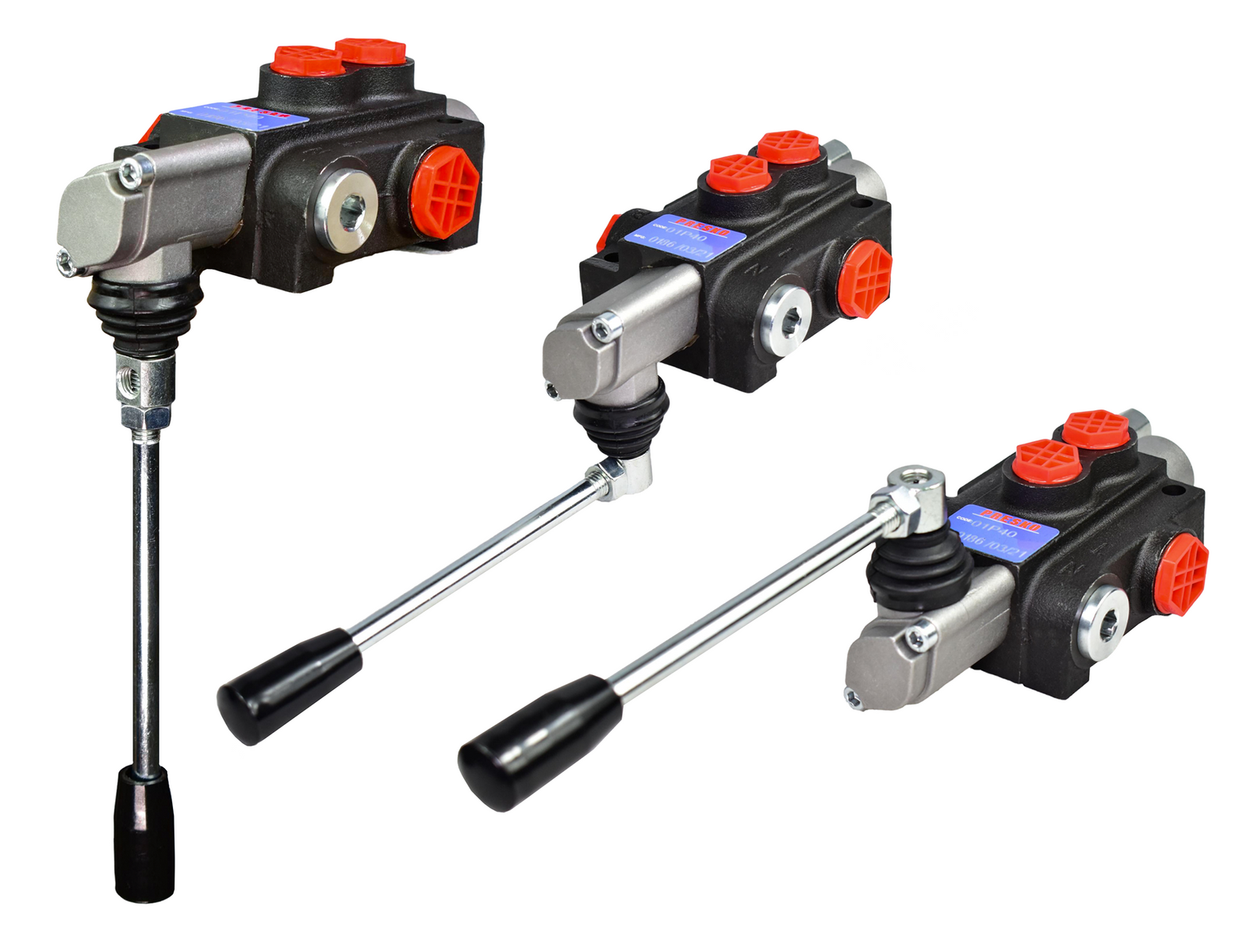

Possible configurations of the lever position relative to hydraulic Directional Valve:
Note: The technical and operational parameters of the product given above are for information purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
