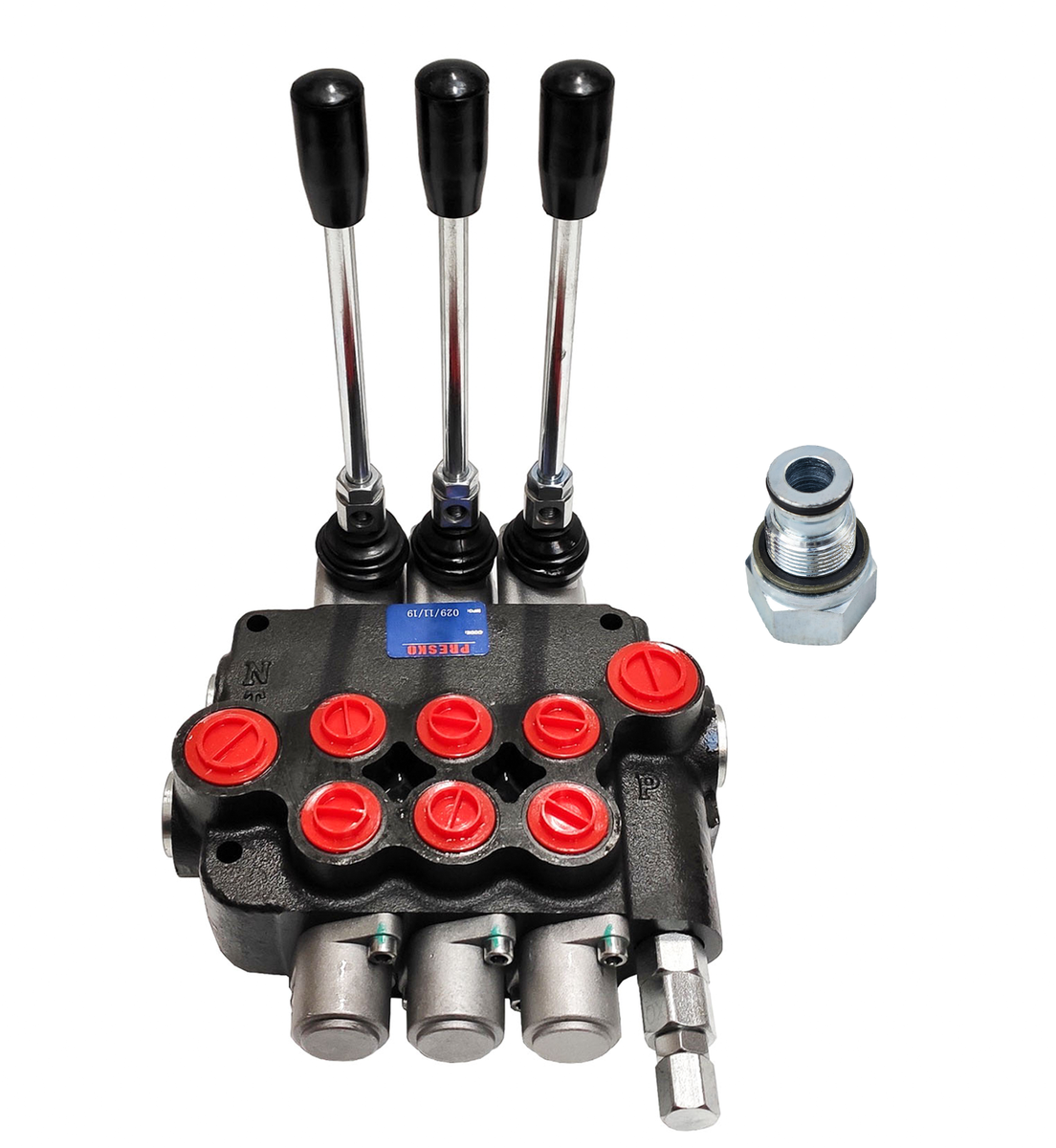

PRESKO Directional Control Valve 3-way 80 l, pressure fitting
PRESKO Directional Control Valve 3-way 80 l, pressure fitting
PRESKO Directional Control Valve 3-way 80 l, pressure fitting
PRESKO Directional Control Valve 3-way 80 l, pressure fitting

PRESKO Directional Control Valve 3-way 80 l, pressure fitting

+ Add to compareAdd to shopping list
  • PRESKO Directional Control Valve, 3 -way, 80 l /min., complete with a pressure fitting
Size
uniwersalny
112,27 €
incl. VAT / item
Lowest price in 30 days before discount: / item
Regular price: / item
of
Product in stock in very large quantities
Product in stock in very large quantities
Free and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
PRESKO Directional Control Valve 3-way 80 l, pressure fitting
PRESKO Directional Control Valve 3-way 80 l, pressure fitting
uniwersalny
Safe shopping





High quality hydraulic directional control valve,3 -way, flow rate 80 l/min., with pressure fitting for connecting to another valve





 FEATURES

  • PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
  • High-quality materials used for production guarantee durability and smooth operation
  • Solid and compact construction
  • Easy mounting
  • Equipped with a safety valve
  • The lever can be installed in three different ways depending on needs



TECHNICAL DATA



 Number of ways
 3
 Safety valve setting 180 bar
Maximum operating pressure 250 bar
Maximum flow rate 80 l/min
Spacing between sections 38 mm
Weight

10,50 kg

 Application

Pressure fitting

fluid power





3 three-position levers on a spring - levers automatically return to the neutral position





PORTING

  • Oil inlet - internal thread, BSP 3/4''
  • Oil outlet - internal thread BSP 3/4''
  • Connection ports - - internal thread, BSP 1/2''
  • Serial connection (to another directional control valve) - internal thread BSP 3/4"

The pressure fitting connects two valves in series. It protects the first valve from the backpressure and maintains the nominal pressure in the second valve.

The pressure fitting is sold complete with a gasket and an O-ring. Both ports BSP 3/4"

The pressure fitting should be screwed in the side port 3 (usually it is closed with a metal plug)

 Note: The  technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.



To download
Brand
PRESKO
Entity responsible for this product in the EU
HeweaSp. z o.o.More
ProducerHeweaSp. z o.o.Address: Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress: Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
03p80 + P80 ŚRUBA
Producer code
03p80 + P80 ŚRUBA
