✅ BASIC DATA:

• Absorption capacity: 800 cm3/rev.
• Connections: 1" female threads (according to BSPP¹)

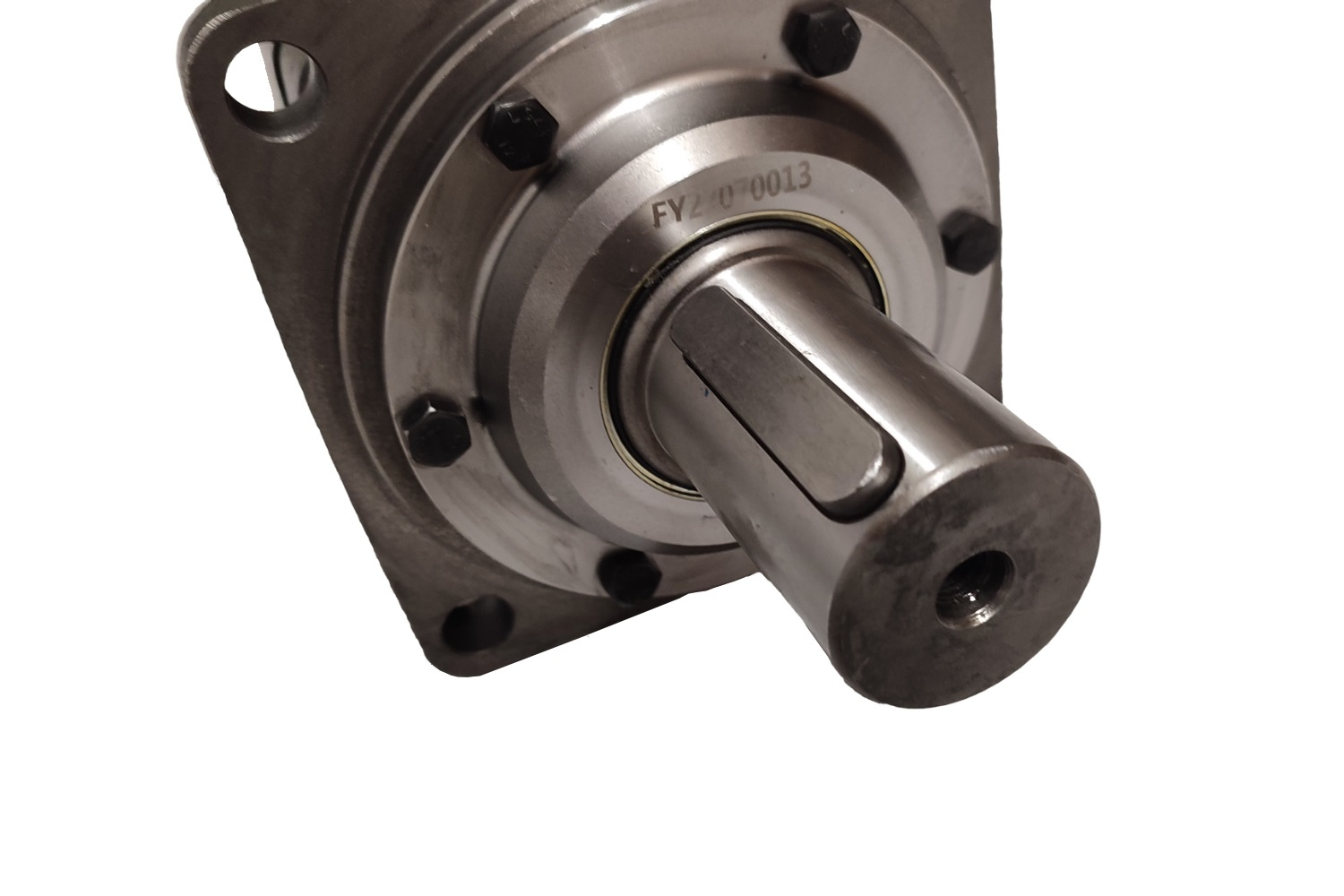

• Shaft drive: 50mm

Continuous operation parameters:

• Maximum speed (continuous): 250 rpm
• Maximum torque (continuous): 1880 Nm
• Maximum power output (continuous): 33 kW
• Maximum flow (continuous): 200 l/min
• Maximum supply pressure (continuous): 160 bar

1. British Standard Pipe Parallel - British Standard Pipe Parallel, inch cylindrical thread, one of the Whitworth pipe threads (BSP) denoted by the letter G

✅ Application:

Hydraulic Motorand PRESKO BM7 hydraulic double bearing are used in agricultural, forestry and industrial machinery that operate in equipment requiring very high torque and tremendous power. the 50-millimeter shaft allows safe transmission of speed.

Hydraulic Motor can be connected in series to form larger systems.

Hydraulic Motorand Presko BM7 are perfect for :

• mining machines
• large drilling rigs
• large conveyor belts
• wrappers
• feed and concrete mixers
• many other machines where power and durability count.

Proven design and high quality materials used in the production of hydraulic Motorów guarantee stable and efficient operation for a very long time.

Thanks to the use of a reinforced bearing system based on the GEROLOR system hydraulic Motor is characterized by:

1. Quieter operation
2. Definitely higher level of durability in relation to cheaper substitutes with synthetic inserts
3. Long service life
4. Higher resistance to forces acting on hydraulic Motor
5. Smoother operation hydraulic Motor already during start-up
