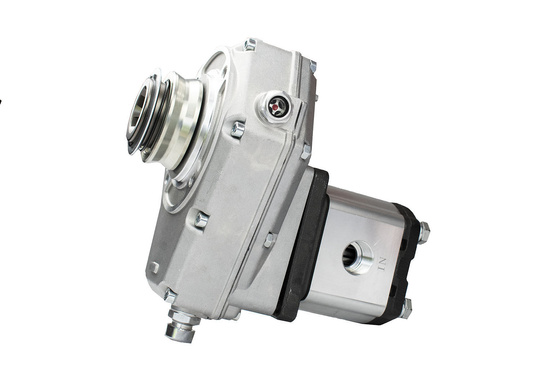

PRESKO Gear Pump, PTO multiplier, flow 45 l/min.
PRESKO Gear Pump, PTO multiplier, flow 45 l/min.
PRESKO Gear Pump, PTO multiplier, flow 45 l/min.
PRESKO Gear Pump, PTO multiplier, flow 45 l/min.
PRESKO Gear Pump, PTO multiplier, flow 45 l/min.
PRESKO Gear Pump, PTO multiplier, flow 45 l/min.
e-mailagro@hewea.com
tel:882 037 352

PRESKO Gear Pump, PTO multiplier, flow 45 l/min.

+ Add to compareAdd to shopping list
  • PRESKO hydraulic gear pump, group 2, with PTO female multiplier, oil flow 45 l/min.
Size
uniwersalny
197,16 €
incl. VAT / item
Lowest price in 30 days before discount: / item
Regular price: / item
of
Out of stock, delivery soon
Out of stock, delivery soon
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Hydraulic gear pump, group 2, female PTO multiplier 1:3,8

The set includes:

PRESKO PTO multiplier

  • Gear ratio: 1:3,8
  • Input shaft: 1 3/8" DIN9611

PRESKO gear pump

  • Group 2
  • Volume: 22 cm3/rev.
  • Rotation: clockwise
  • RPM range: 500-3000
  • Porting: inlet 3/4'' BSP; outlet 1/2'' BSP
  • Shaft: cone  1:8, M12 x 1.25
  • Operating pressure: 200 bar
  • Maximum operating pressure: 280 bar
  • Mounting set

Capacity in liters per minute

  • 220 rpm on the PTO shaft  = 18,4 l/min.
  • 320 rpm on the PTO shaft  = 26,7 l/min.
  • 430 rpm on the PTO shaft = 35,9 l/min.
  • 540 rpm on the PTO shaft  = 45,0 l/min.



TECHNICAL DRAWING







Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.

Przełożenie wewnętrzne
To download
Zasoby dotyczące bezpieczeństwa i produktów
    Brand
    PRESKO
    Entity responsible for this product in the EU
    HeweaSp. z o.o.More
    ProducerHeweaSp. z o.o.Address: Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
    Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress: Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
    Symbol
    ZYP2FC022B03 + 60004-6
