  • PRESKO gear pump 2 group with PTO male multiplier - set 22 cm3
Size
uniwersalny
158,42 €
incl. VAT / item
Lowest price in 30 days before discount: / item
Regular price: / item
of
Product in stock in very large quantities
Product in stock in very large quantities
Free and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
PRESKO gear pump with PTO multiplier - set 22 cm3
PRESKO gear pump with PTO multiplier - set 22 cm3
uniwersalny
Safe shopping

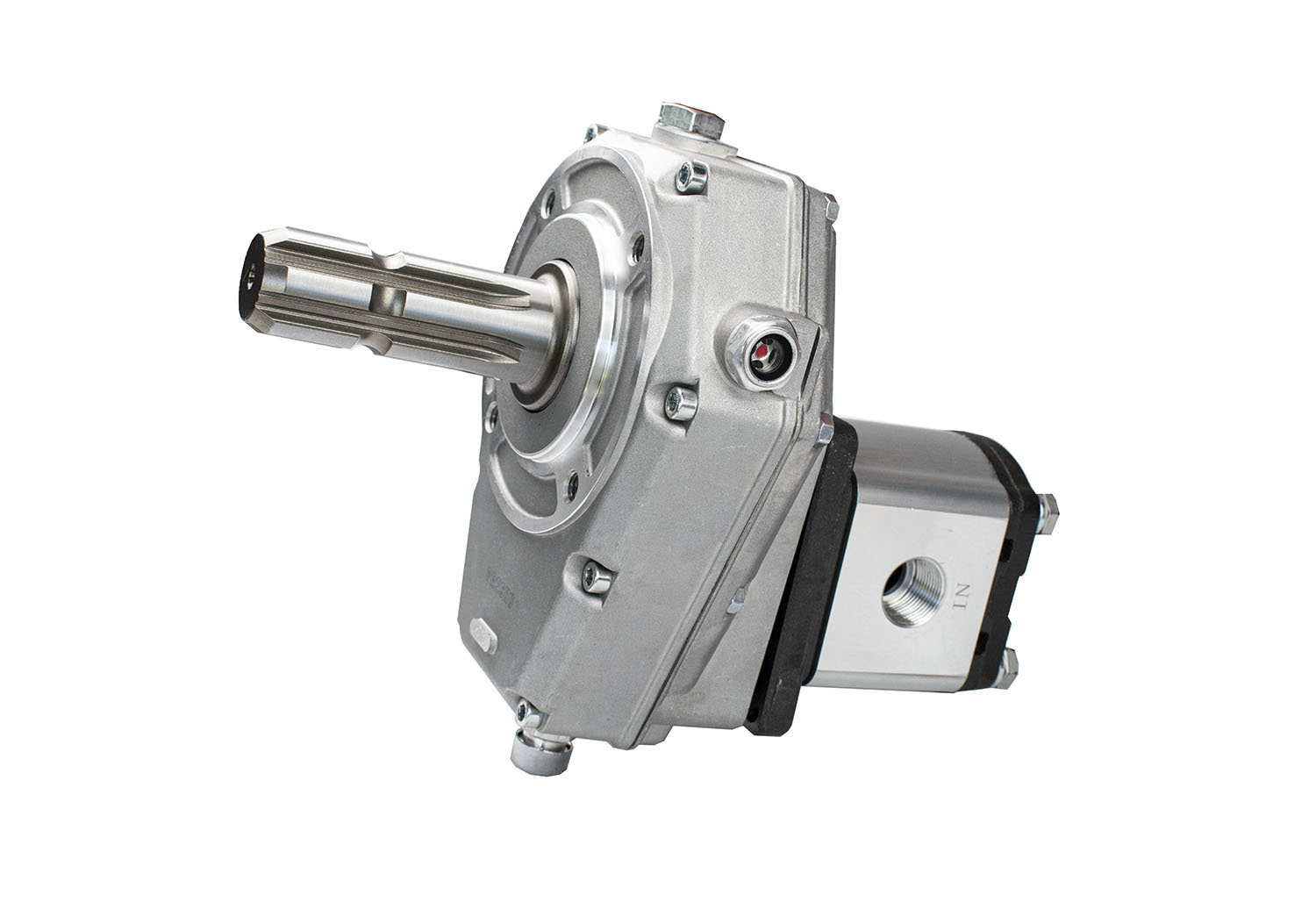

Hydraulic gear pump, group 2, male PTO multiplier 1:3.8



The set includes:
PRESKO gear pump
  • Volume: 22 cm3/rev.
  • Maximum operating pressure: 230 bar
  • Nominal operating pressure: 200 bar
  • Rotation: clockwise
  • Max. rotation speed (continuous): 2000 rev./min
  • Max. rotation speed (instantaneous):  3000 rev./min
  • Min. rotation speed: 400 rev./min

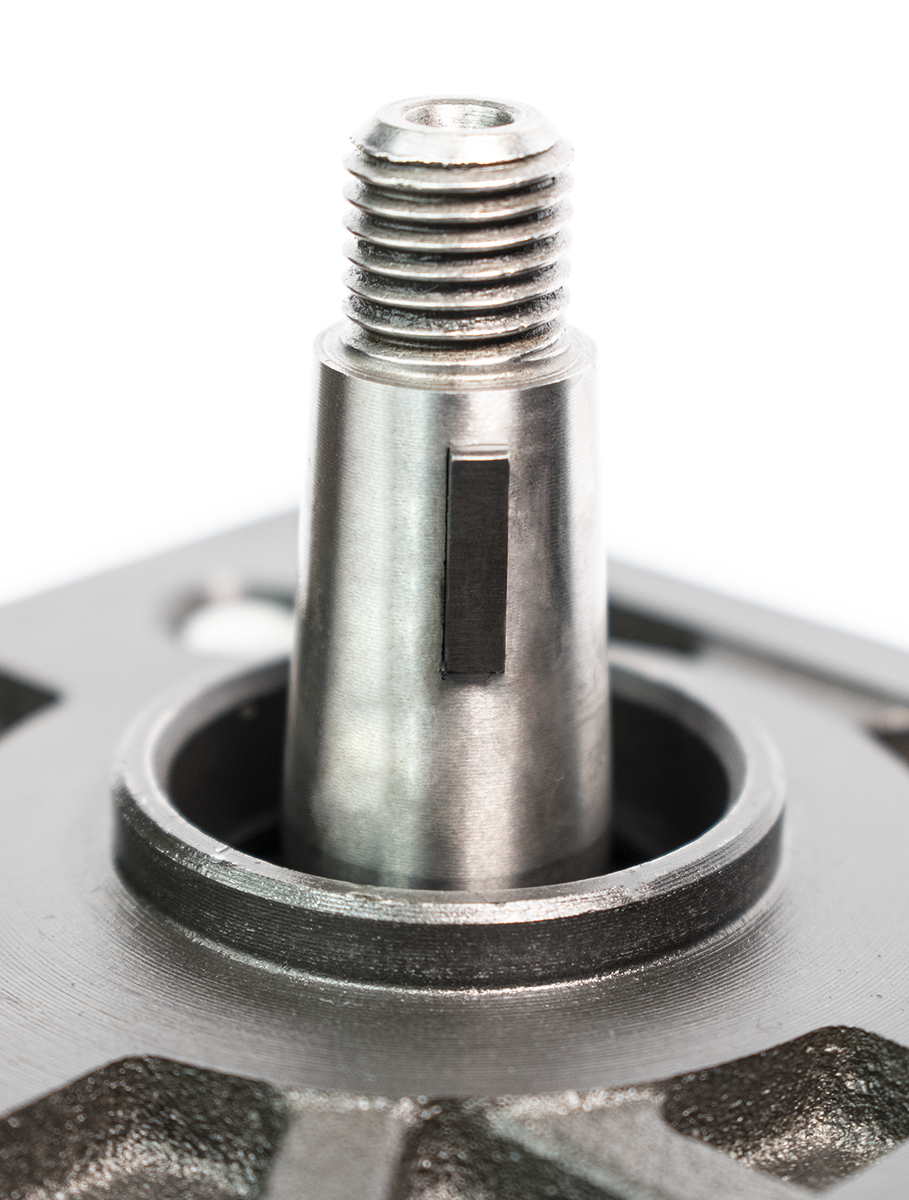

  • Shaft: cone 1:8, M12 x 1,5
  • Flange: European 114 x 90 mm

PRESKO PTO multiplier

  • Gear ratio: 1:3,8
  • Input shaft: 1 3/8" DIN9611





Capacity in liters per minute

  • 220 rpm on the PTO shaft = 18,3 l/min.
  • 320 rpm on the PTO shaft = 26,7 l/min.
  • 430 rpm on the PTO shaft = 35,9 l/min.
  • 540 rpm on the PTO shaft = 45,1 l/min.

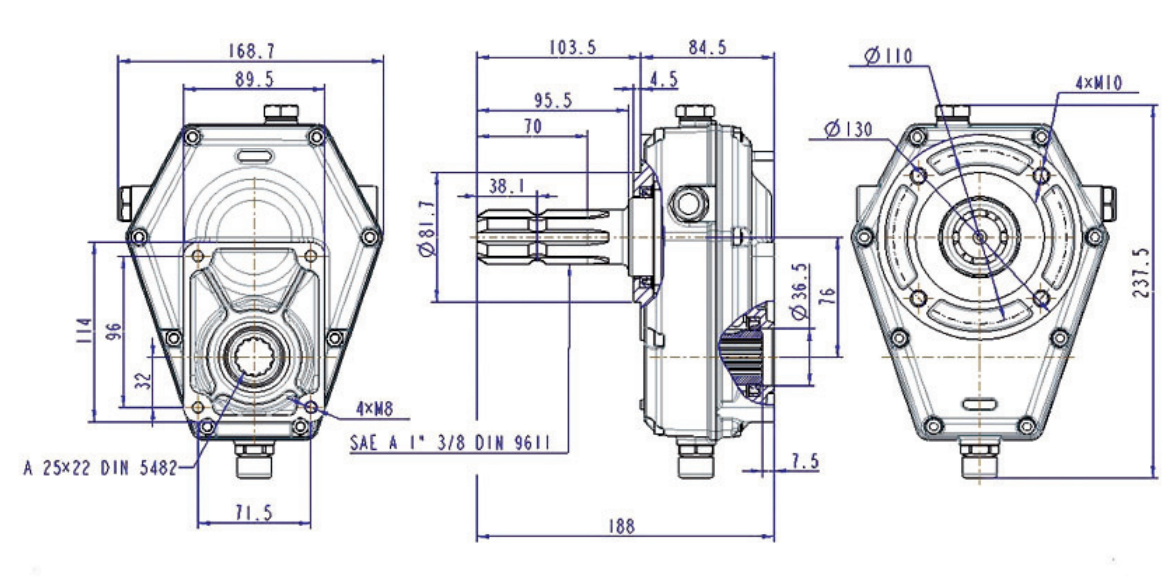

Dimensions

  • 1 - 123,5 mm
  • 2 - 56,3 mm
  • 3 - 1/2'' - inlet
  • 4 - 3/4'' - outlet

  Note: The  technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.

Przełożenie wewnętrzne
To download
Brand
PRESKO
Symbol
ZYP2FC022B03+ 33-60001-6
Producer code
ZYP2FC022B03+ 33-60001-6
