PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
PRESKO gear pump with PTO multiplier - set 26 cm3
e-mailagro@hewea.com
tel:882 037 352

PRESKO gear pump with PTO multiplier - set 26 cm3

+ Add to compareAdd to shopping list
  • PRESKO gear pump 2 group with PTO male multiplier - set 26 cm3
Size
uniwersalny
177,37 €
incl. VAT / item
Lowest price in 30 days before discount: / item
Regular price: / item
of
Out of stock, delivery soon
Out of stock, delivery soon
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping





Hydraulic gear pump, group 2, male PTO multiplier 1:3.8



The set includes:

PRESKO gear pump

  • Volume: 26 cm3/rev.
  • Maximum operating pressure:  200 bar
  • Nominal operating pressure:  180 bar
  • Rotation: clockwise
  • Max. rotation speed (continuous):  2000 obr./min
  • Max. rotation speed (instantaneous):  2500 rev./min
  • Min. rotation speed:  400 rev./min

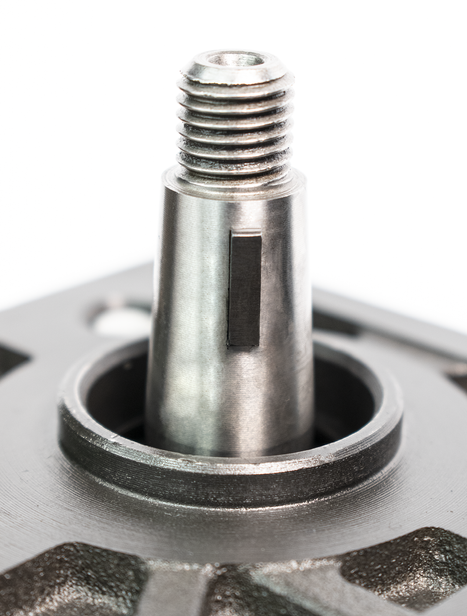

  • Shaft: cone1:8, M12 x 1,5
  • Flange: European 114 x 90 mm

PRESKO PTO multiplier

  • Gear ratio: 1:3,8
  • Input shaft: 1 3/8" DIN9611





Capacity in liters per minute

  • 220 rpm on the PTO shaft = 21,7 l/min.
  • 320 rpm on the PTO shaft = 31,6 l/min.
  • 430 rpm on the PTO shaft = 42,4 l/min.
  • 540 rpm on the PTO shaft = 53,3 l/min.



Dimensions

  • 1 - 123,5 mm
  • 2 - 59,5 mm
  • 3 - 1/2'' - inlet
  • 4 - 3/4'' - outlet



TECHNICAL DRAWING

Note: The  technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.

Przełożenie wewnętrzne
To download
Zasoby dotyczące bezpieczeństwa i produktów
    Brand
    PRESKO
    Entity responsible for this product in the EU
    HeweaSp. z o.o.More
    ProducerHeweaSp. z o.o.Address: Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
    Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress: Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
    Symbol
    ZYP2FC026B03 + 33-60001-6
    Producer code
    ZYP2FC026B03 + 33-60001-6
