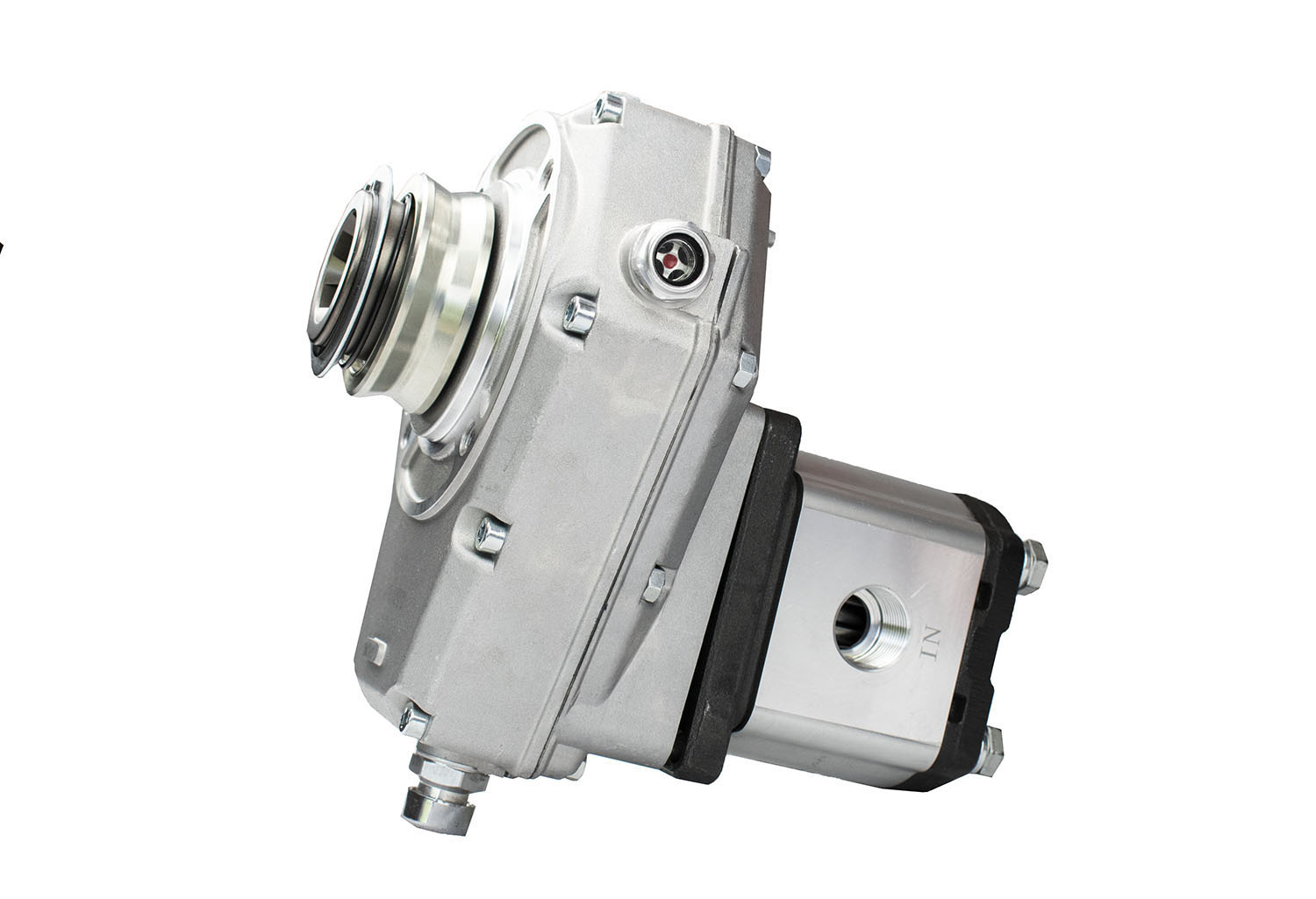

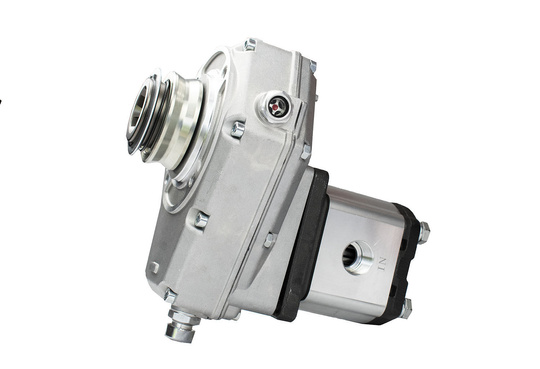

Gear pump with PTO multiplier PRESKO 35L set
- The gear pump set with multiplier is widely used in numerous agricultural, construction forestry or orchard machines.
Second group gear pump with female multiplier 1 : 3 - KIT
The set includes:
- PRESKO brand gear pump with a displacement of 22cm3/rev.
- PRESKO brand multiplier 1:3
- Coupling coupling
- Connecting bolts
Functionality:
The gear pump set with multiplier is widely used in numerous agricultural, construction forestry or orchard machines. It is usually used where the factory pump of a machine with hydraulic system does not generate enough power, or when we need to connect an additional hydraulic system to the machine to increase its functionality. Thanks to the robust multiplier, we are able to increase the revolutions on the power take-off, which guarantees stable and efficient operation of the connected system.
THESET INCLUDES:
 |

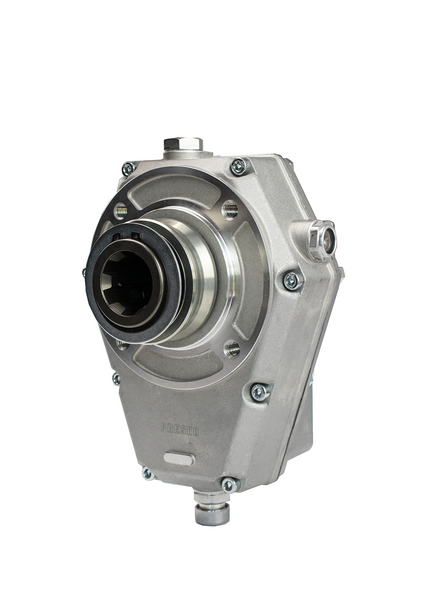

PRESKO MultiplierGearbox that increases the PTO speed, ratio 1:3, input shaft 1 3/8". It is used to increase the speed of the shaft driving the pump of the external hydraulic system. The design and parameters of the speed-increasing gearbox make it a suitable element for installation in small and medium-sized agricultural, forestry and construction machines equipped with a PTO shaft. An undoubted advantage of the device is the small size of the gearbox, so it can also be installed in hard-to-reach places in machine and tractor housings. The gearbox increases the rotation ratio to 1:3.
|
 |

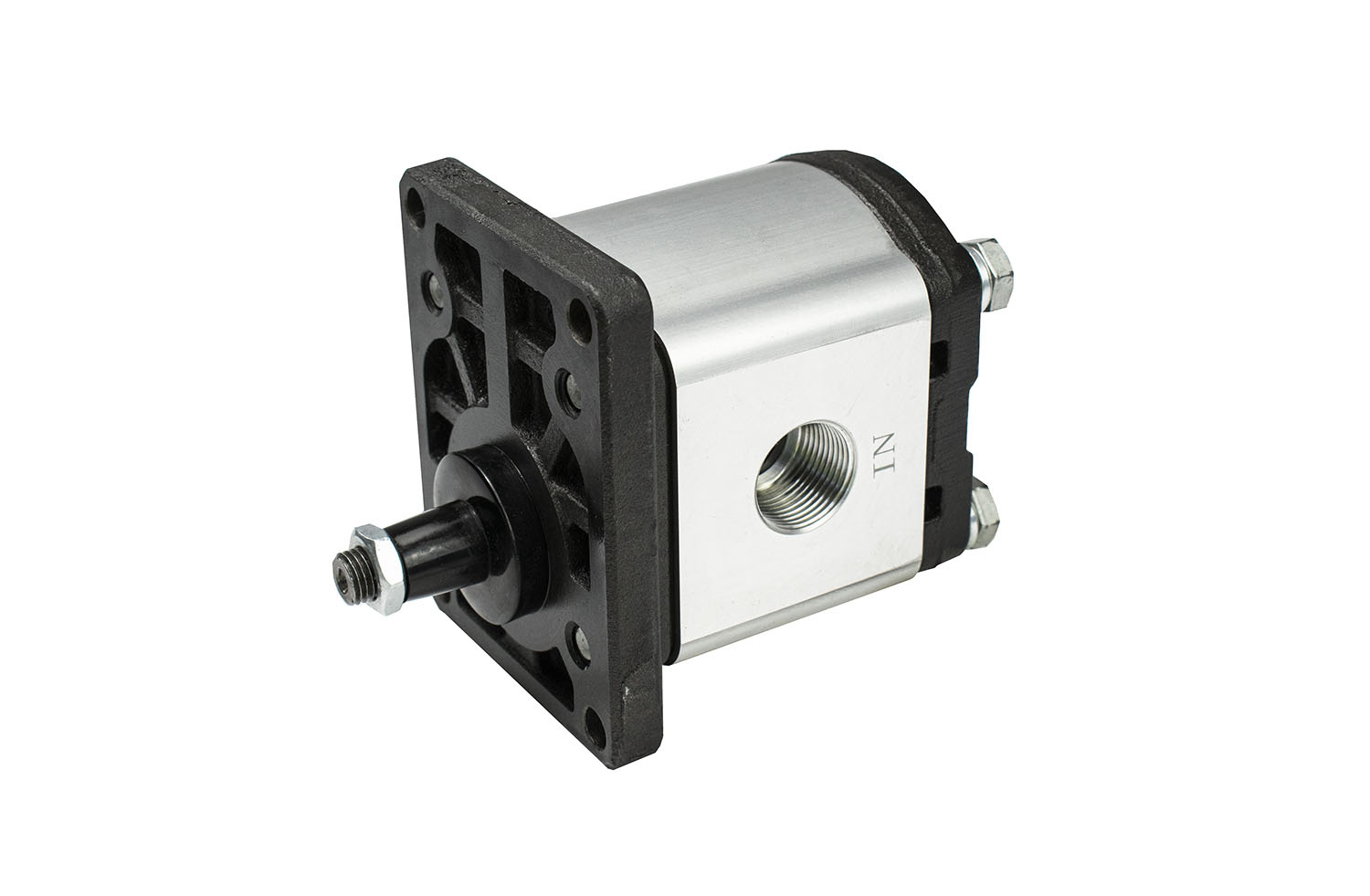

Group 2 hydraulic pump by PRESKORobust gear pump characterized by the high quality of its materials. Technical specifications:
|
Set capacity in liters per minute - based on revolutions on the power take-off shaft
- 220 revolutions per minute on the power take-off = 14.5l/min.
- 320 revolutions per minute on power take-off = 21.1l/min.
- 430 revolutions per minute on the power take-off = 28.3l/min.
- 540 revolutions per minute on the power take-off = 35.6l/min.
TECHNICAL DRAWING
