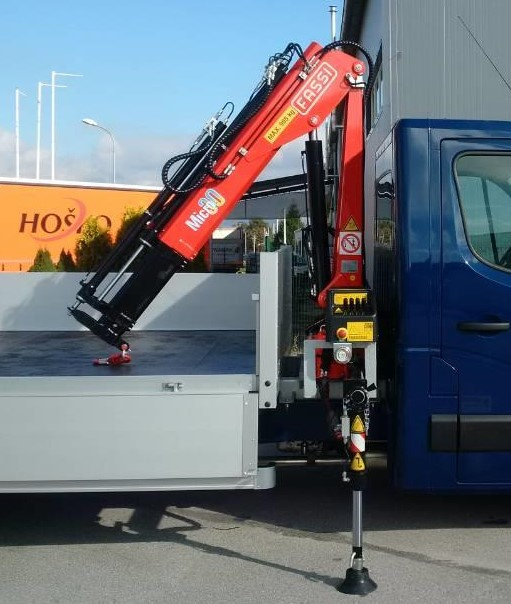

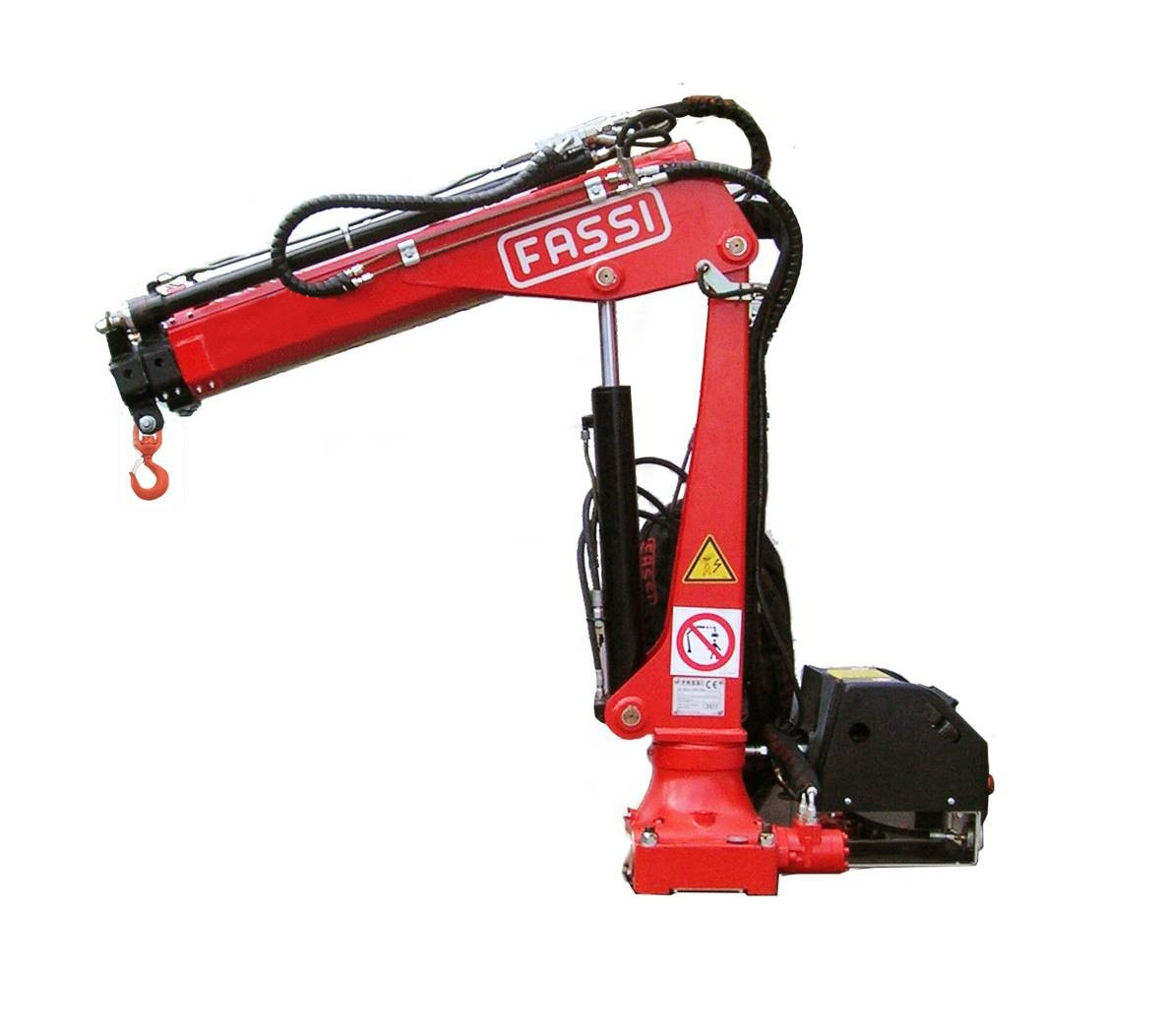

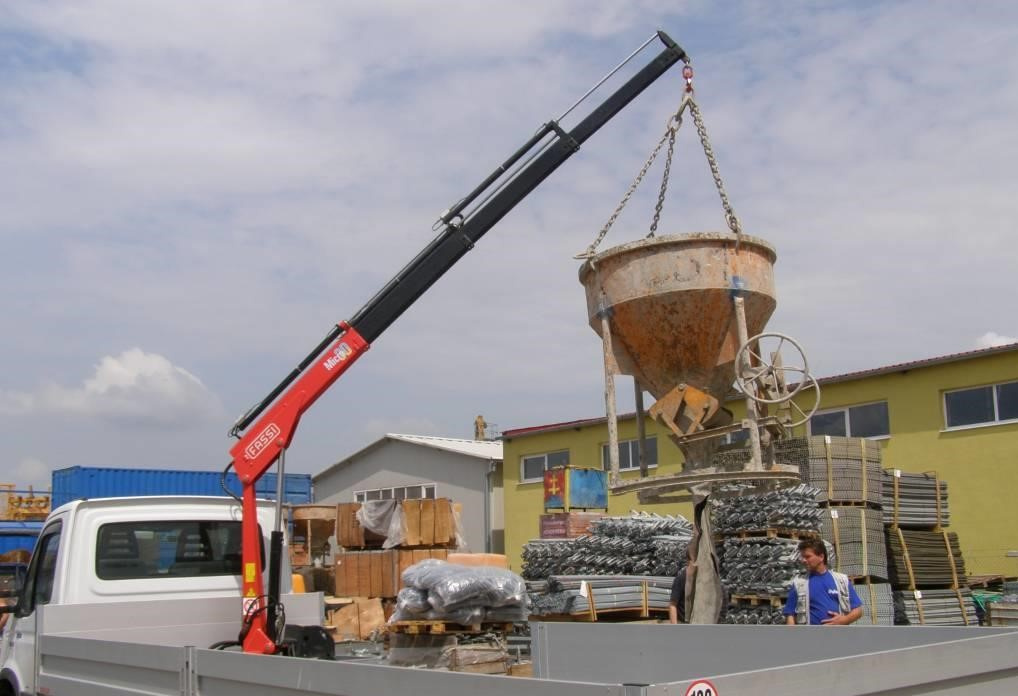

FASSI Articulated Crane M30A.12 Micro
- FASSI Articulated Crane M30A.12 Micro
LIFTING CAPACITY:up to 3,06 tm
up to 4,70 m
l 0,83 m , w 0,34 m , h 1,62 m
Walvoil monobloc distributor bank
Immediate stop device and pressure gauge
rotation with hydraulic motor and pinion mechanically limited to 325°
A security system that detects the engagement of the safety latch of the primarily locking pin of side manually extendable outrigger supports, at rest in the transport position.
Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports.
Fassi Stability Control/Low
System that allows crane operation only when all the outrigger supports are completely extended and all the outrigger rams are placed in working position touching the ground.
Load Limiting Verification
Rated load reader for manual extensions. It is provided in combination with the electronic (for Micro cranes) and HO hydraulic lifting moment limiting devices.
Walvoil Distributor Bank
Parallel monobloc proportional hydraulic distributor bank. It is characterized by strength and simplicity of operation.
Multi Power Extension System
A system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
Ultra High Stregth Steel
Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit.
Fewer Welds Design
Fewer welded joints, the stronger the structure will be.
Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components.
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
