Grab Rozzi R40/100
- Hydraulic attachments for loose materials: - earth, sand, gravel - RDF - silt - cereals, fertilizers - coal - industrial, agricultural wastes

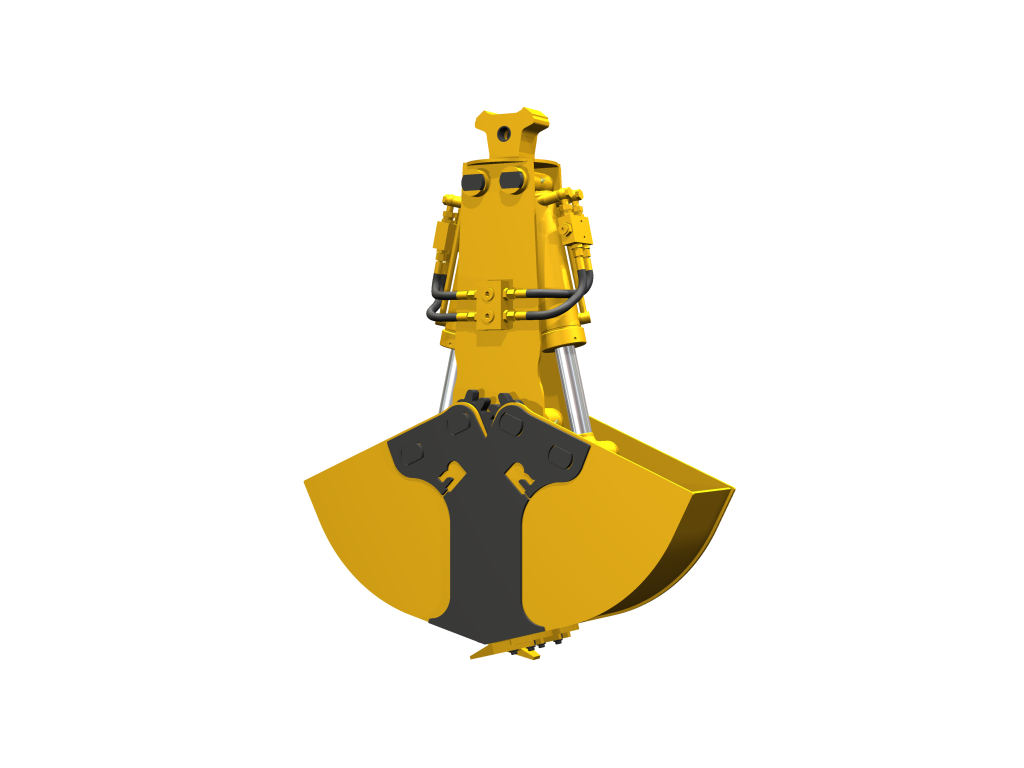

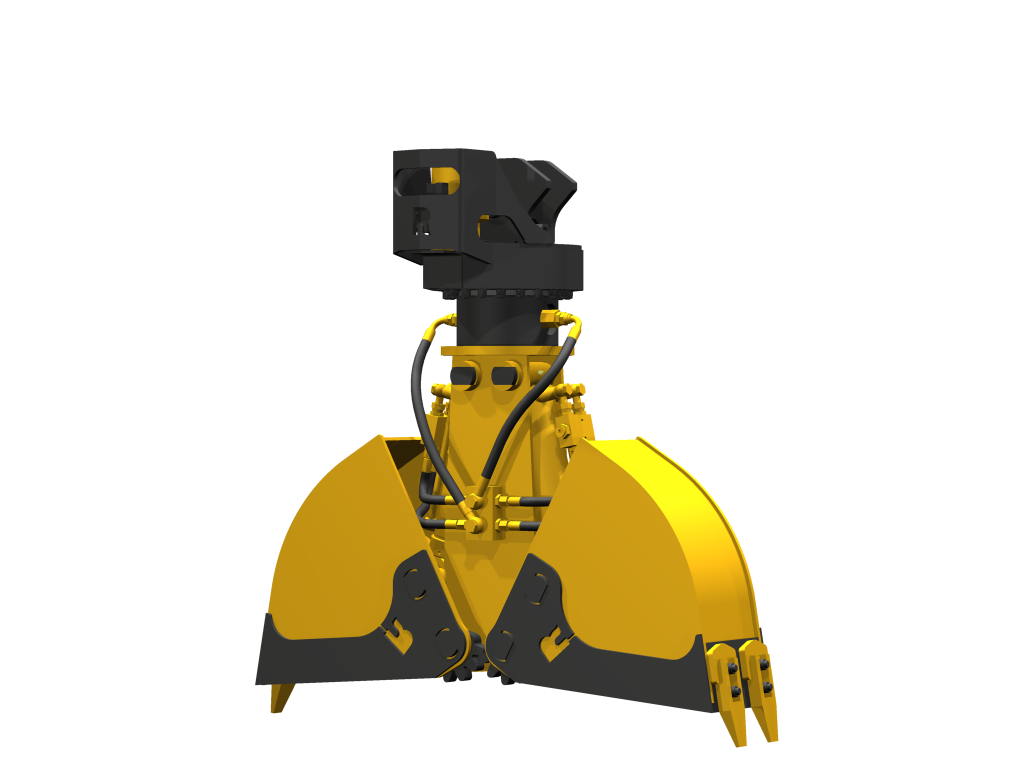

Grab for loose materials R40/100
Graband for bulk materials is hydraulic equipment that is designed for two main tasks - digging, with vertical cylindermi and a tooth profile for high penetration, and loading, with horizontal cylindermi to reduce overall height and a geometric tooth design for maximum filling.
Application:
The loading version is used for handling materials such as:
- earth
- sand
- gravel
- RDF
- silt
- cereals
- coal
- fertilizers
- industrial waste
- agricultural waste
Construction:
The steel structure and cylinderand are made of high quality steel, and the blades, which are subject to abrasion, are made of HB400/500 wear-resistant steel.
Technical specifications:
- Model: R40/100
- Capacity: 100dm3
- Weight: 250 kg
- Working pressure: 250 bar
- Oil demand: 90 l/min
- Clamping force: 4150 kg
Technical drawing:
- A: 1200 mm
- B: 1300 mm
- C: 1100 mm
- D: 1300 mm
- E: 900 mm
- L: 270 mm
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
