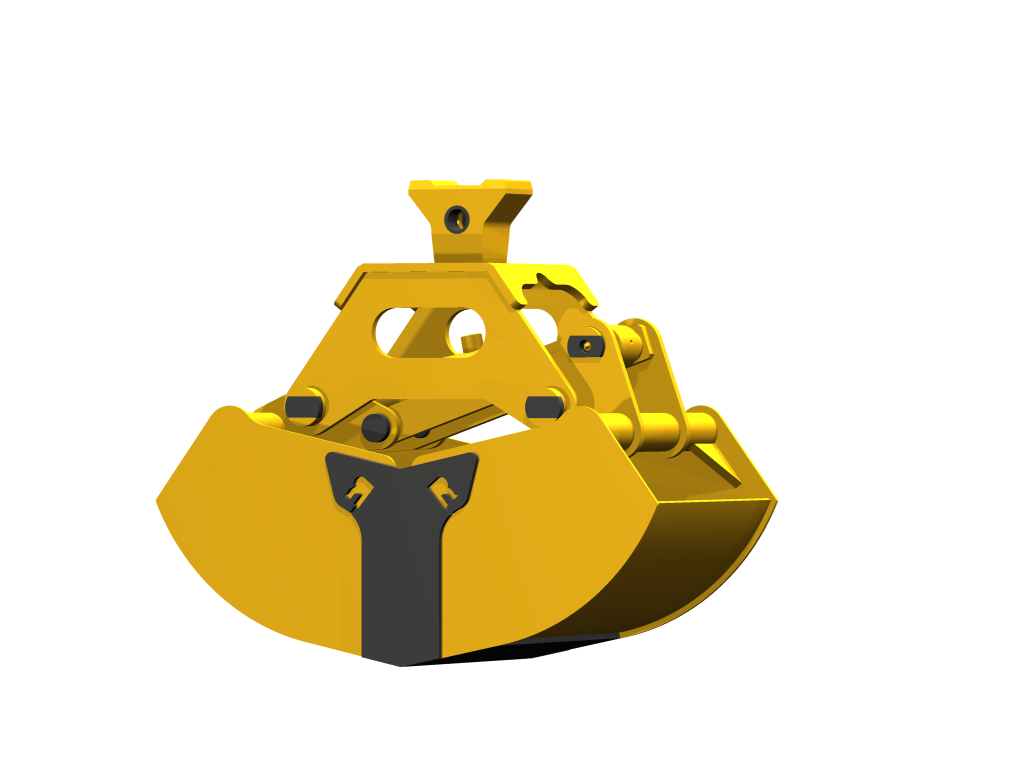

Grab Rozzi R41/155
- Hydraulic attachments for loose materials: - earth, sand, gravel - RDF - silt - cereals, fertilizers - coal - industrial, agricultural wastes
Grab for loose materials R41/155
Graband for bulk materials is hydraulic equipment that is designed for two main tasks - digging, with vertical cylindermi and a tooth profile for high penetration, and loading, with horizontal cylindermi to reduce overall height and a geometric tooth design for maximum filling.
Application:
The loading version is used for handling materials such as:
- earth
- sand
- gravel
- RDF
- silt
- cereals
- coal
- fertilizers
- industrial waste
- agricultural waste
Construction:
The steel structure and cylinderand are made of high quality steel, and the blades, which are subject to abrasion, are made of HB400/500 wear-resistant steel.
Technical specifications:
- Model: R41/155
- Capacity: 95dm3
- Weight: 130 kg
- Working pressure: 280 bar
- Oil demand: 20 l/min
- Clamping force: 930kg
Technical drawing:
- A: 990 mm
- C: 780 mm
- D: 630 mm
- E: 530 mm
- L: 610 mm
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
