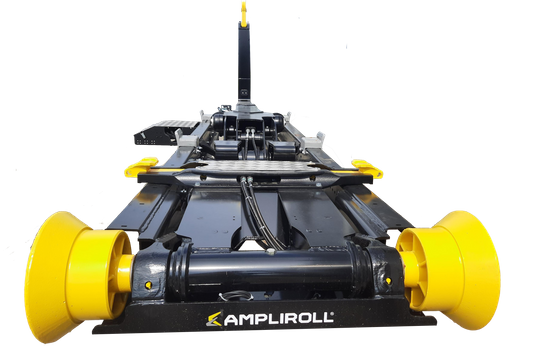

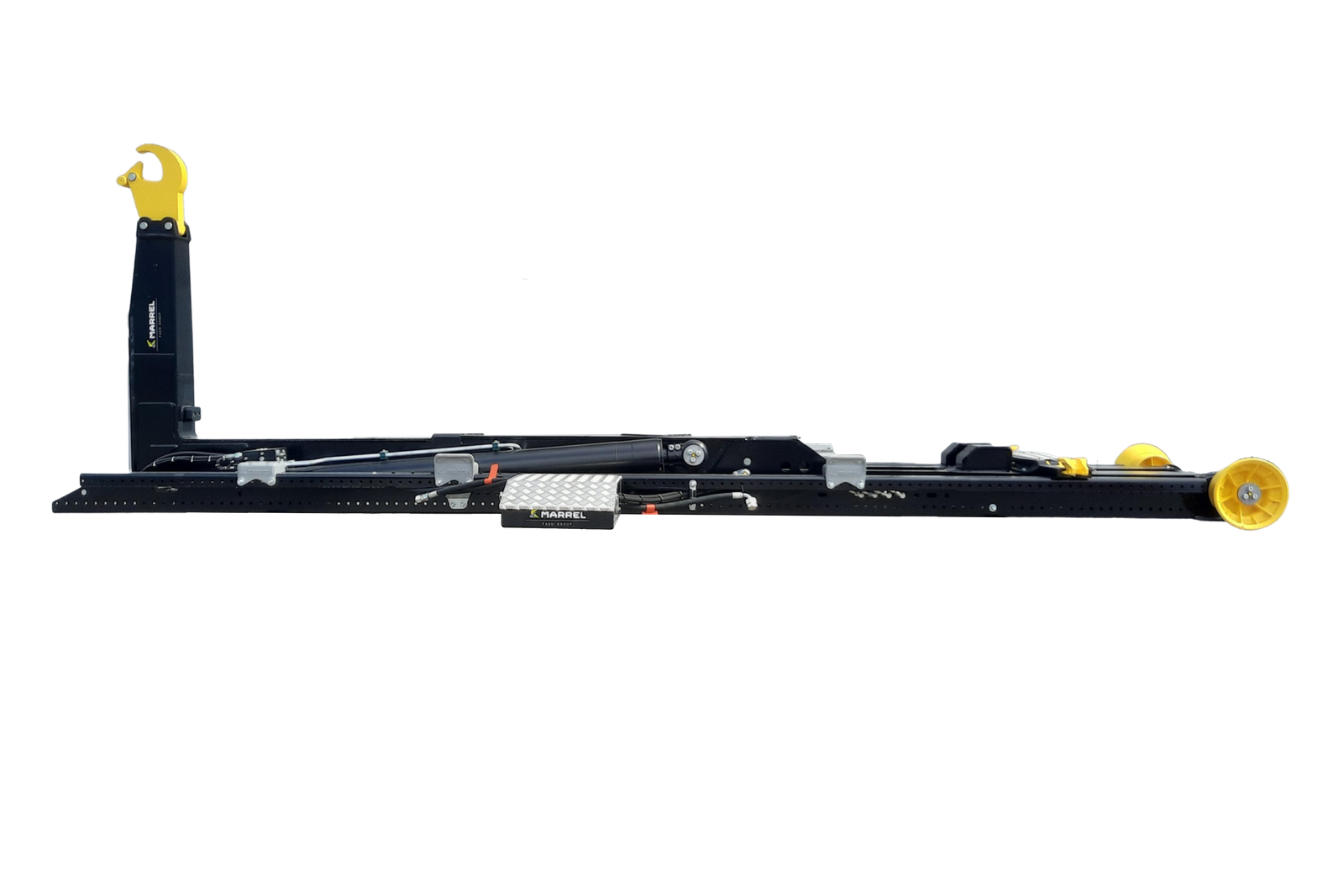

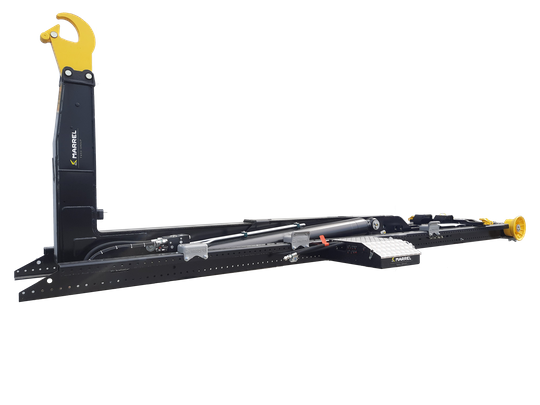

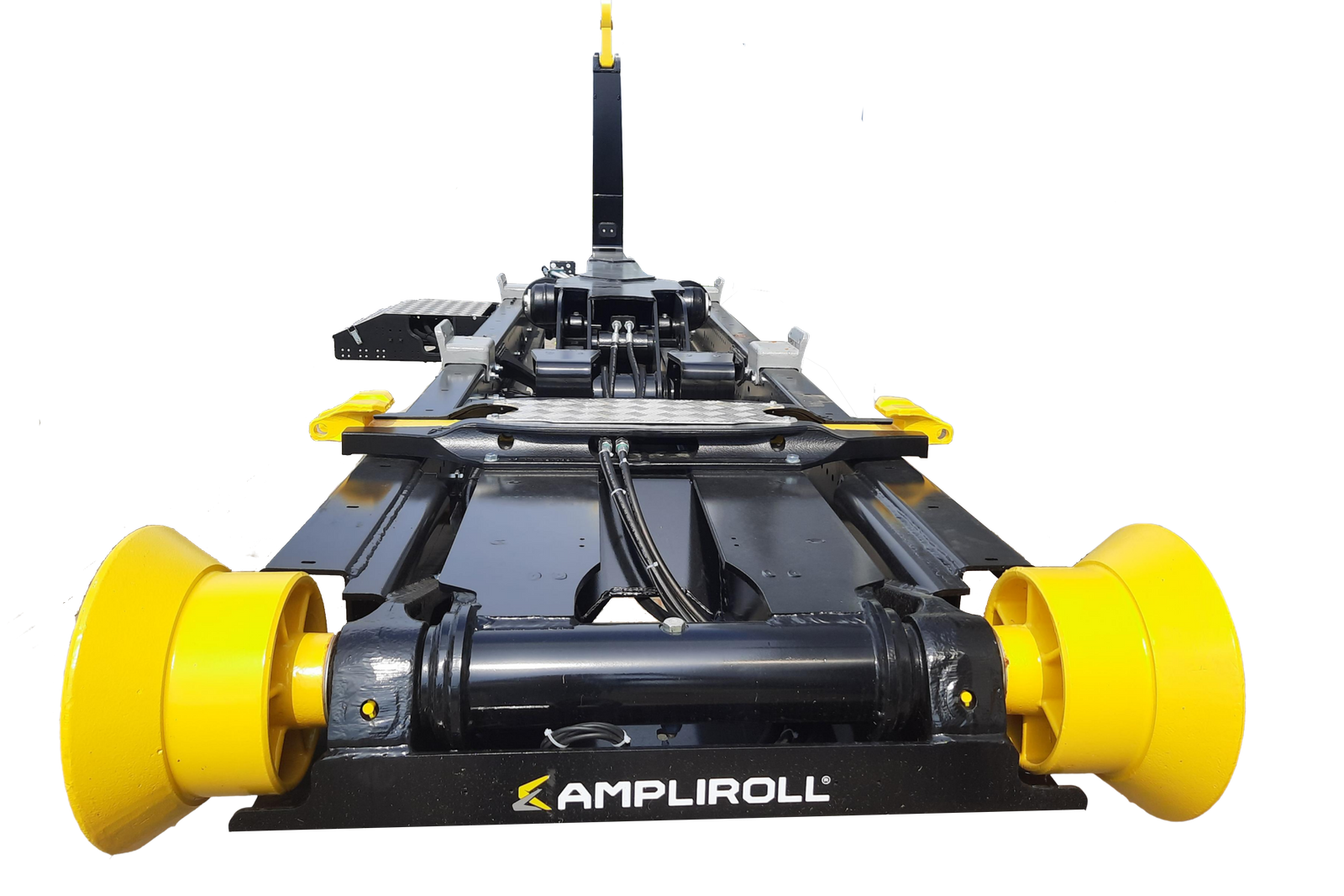

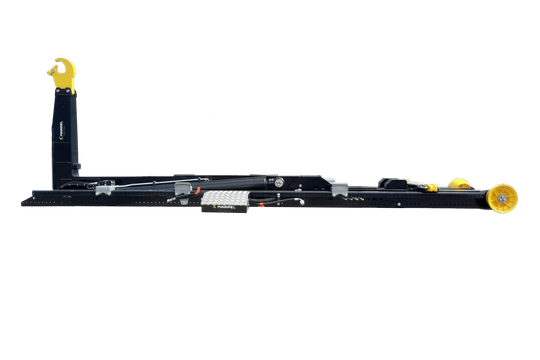

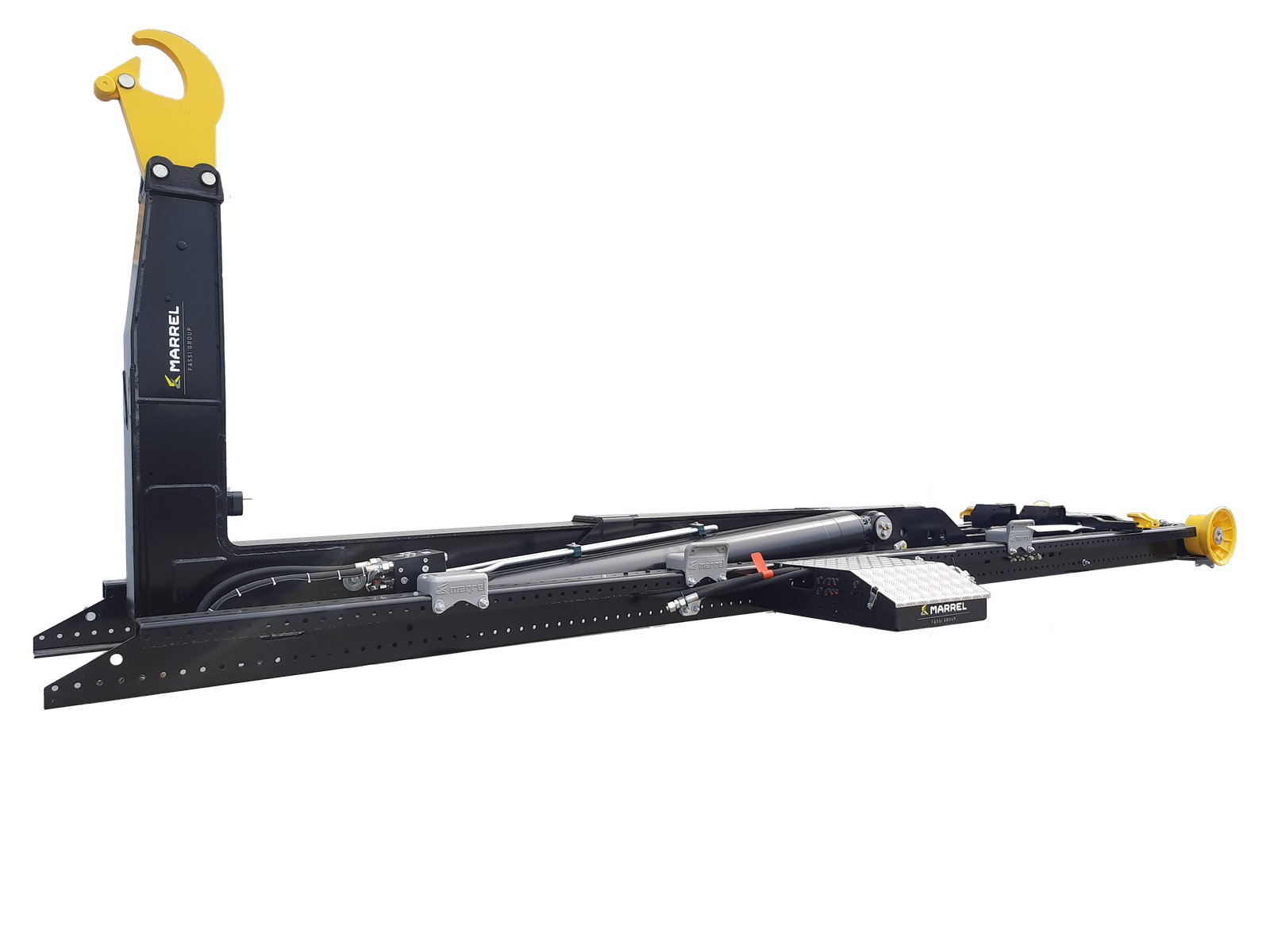

MARREL hooklift AL24 S60 capacity 24 t

MARREL hooklift  AL24 S60 capacity 24 t

ARGUMENTS

• Marrel manufactured cylinders
• Integrated safety to prevent miss-use
• Cast parts for high- stress areas
• High tensile steel

HIGHLIGHTS

• Removable hook or with safety latch
• The Marrel tilting frame provides unmatched lifting capacity
• Shot blasting and painting before assembly
• Customization: color on demand and wide range of accessories
• Optimized equipment height
• End-of-stroke damper integrated into the arm cylinders

OPTIONS

• Available controls: electrical, radio control
• Front hydraulic locks
• PANTO rear underrun protection adjustable or fixed
• Additional hydraulic lines (for cranes, rear tipper trailer...)
• High speed
• Hook with mechanical or pneumatic safety latch
• Vehicle stability systems
• Attachments brackets suited for various truck models

TECHNICAL DETAILS

• Intended for vehicles with min. GVW 26 t
• Capacity: 24 t
• Works with containers with an internal length of: 4800–6500 mm (z dodatkowym zderzakiem 7 200 mm)
• Containers DIN 30722
• Weight: 2350 kg
• Hook height: 1 570 mm
• Hooklift length: 6 000 mm
• Telescopic boom: 1 530 mm
• Working pressure in the hydraulic system: 350 bar
• Hooklift control: pneumatic – in cabin, it's also possible to control outside the cabin
• Container grip protection: mechanical latch
• Protection during transport: hydraulic lock
• Complies with the Machinery Directive 2006/42/CE

The hooklift and be presented and tested at our headquarters: Byków, ul. Przemysłowa 1, 55-095 Mirków
We can send a catalog card, technical specification, etc.
We offer various financing options
We provide warranty and post-warranty service.

Do not hesitate to contact us if you have questions

  Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
