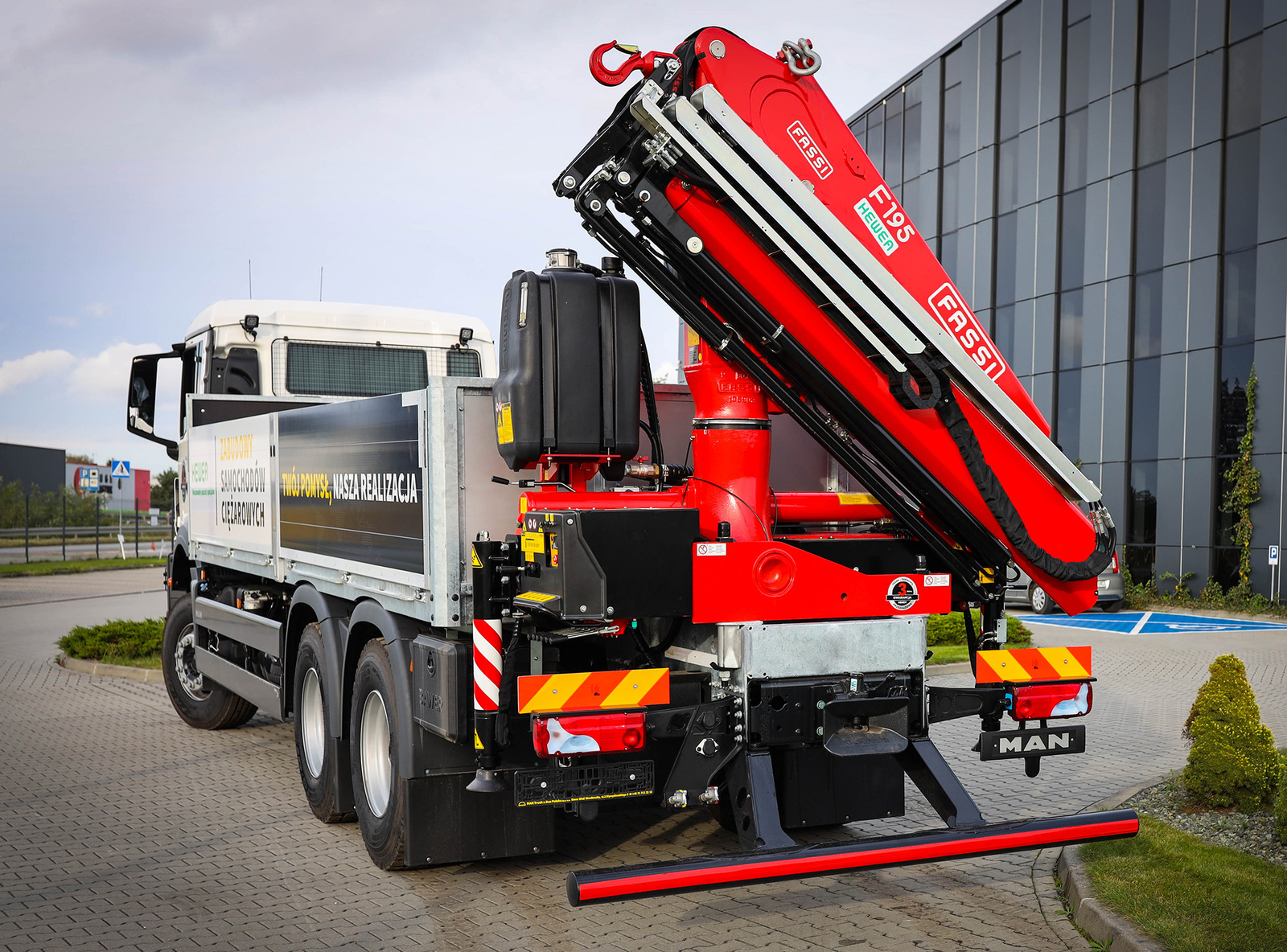

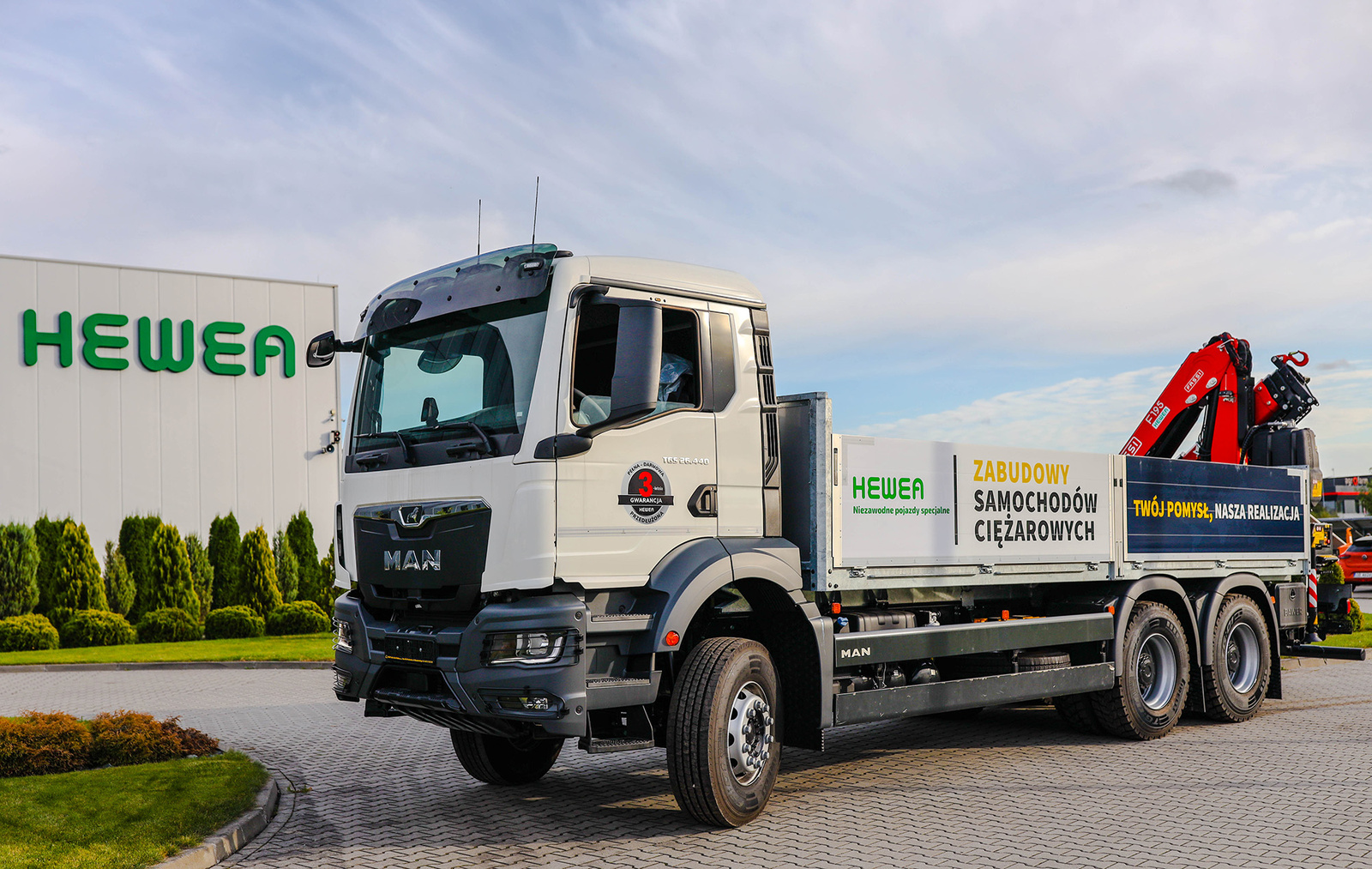

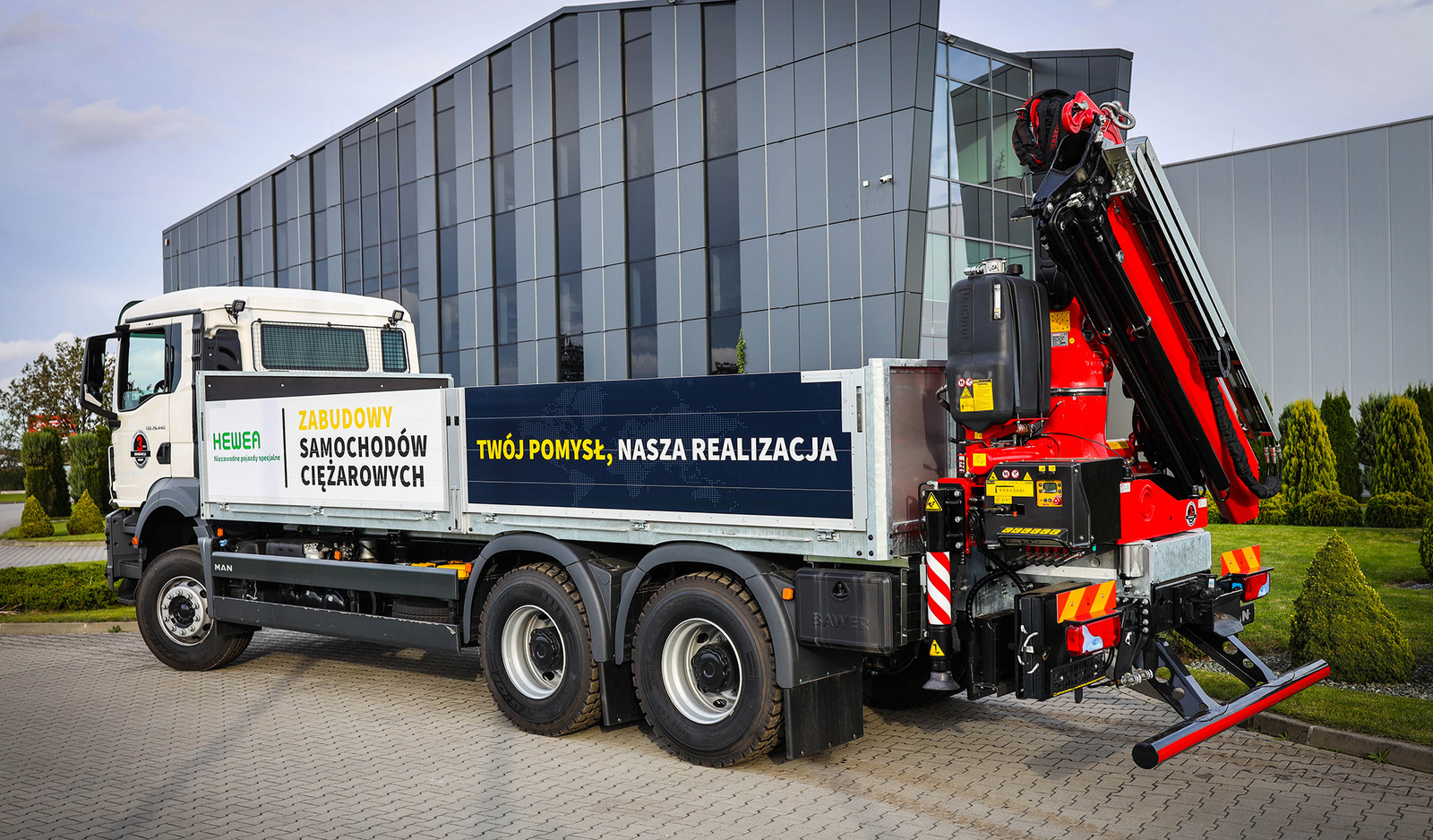

MAN TGS 26.440 6×4 with HDS crane FASSI F195A.1.23 and box body

MAN TGS 26.440 6×4 chassis with FASSI F195A.1.23 HDS crane and box body, with full 3-year warranty on the entire kit and components.

Technical Details:

Chassis Specification:

• Model: MAN TGS 26.440 6×4 BL CH
• Exhaust emissions standard: EURO6
• Hydraulic Motord26, power: 324 kW (440 hp)
• Cab: NN, narrow, medium long, normal height
• Wheelbase: 4500 mm, rear overhang: 2500 mm

Specifications of FASSI F195A.1.23 HDS crane:

• Type: radio-controlled hydraulic crane
• Max. lifting moment: 18.76 tm
• Max. hydraulic outreach: 14.75 m
• Max. lifting capacity: 1.7 tm with an outreach of 10 m
• Column rotation: 416°
• Technologies: FX 500 (overload protection), Danfoss D850 (multifunction hydraulic Directional Valve), RCS FASSI (radio proportional control), Flow Sharing, MPES and PROLINK

Supports: hydraulic, spread width 6620 mm, controlled from both sides of the vehicle

Box Body:

• Body type: fixed box body, interior length 6500 mm, width 2500 mm
• Floor: waterproof plywood with a thickness of 27 mm
• Sides: aluminum, anodized, height 600 mm, opening downwards
• Walls and frame: steel, with plywood filling, 800 mm high
• Additional equipment: cargo fasteners (7 pieces per side), center stanchions (1 per side), rear and side safety devices, fenders with splash guards, marker lights and lighting in accordance with regulations.

Frame:

• Material: high-grade S335 steel
• Intermediate frame: reinforced for crane mounting
• Finish: hot-dip galvanizing

Warranty and Additional Information:

• Warranty: 36 months for complete vehicle, crane and body.
• Presentation: possibility to see the vehicle in Bykowo near Wroclaw

MAN vehicle with HDS crane ready on the spot.
