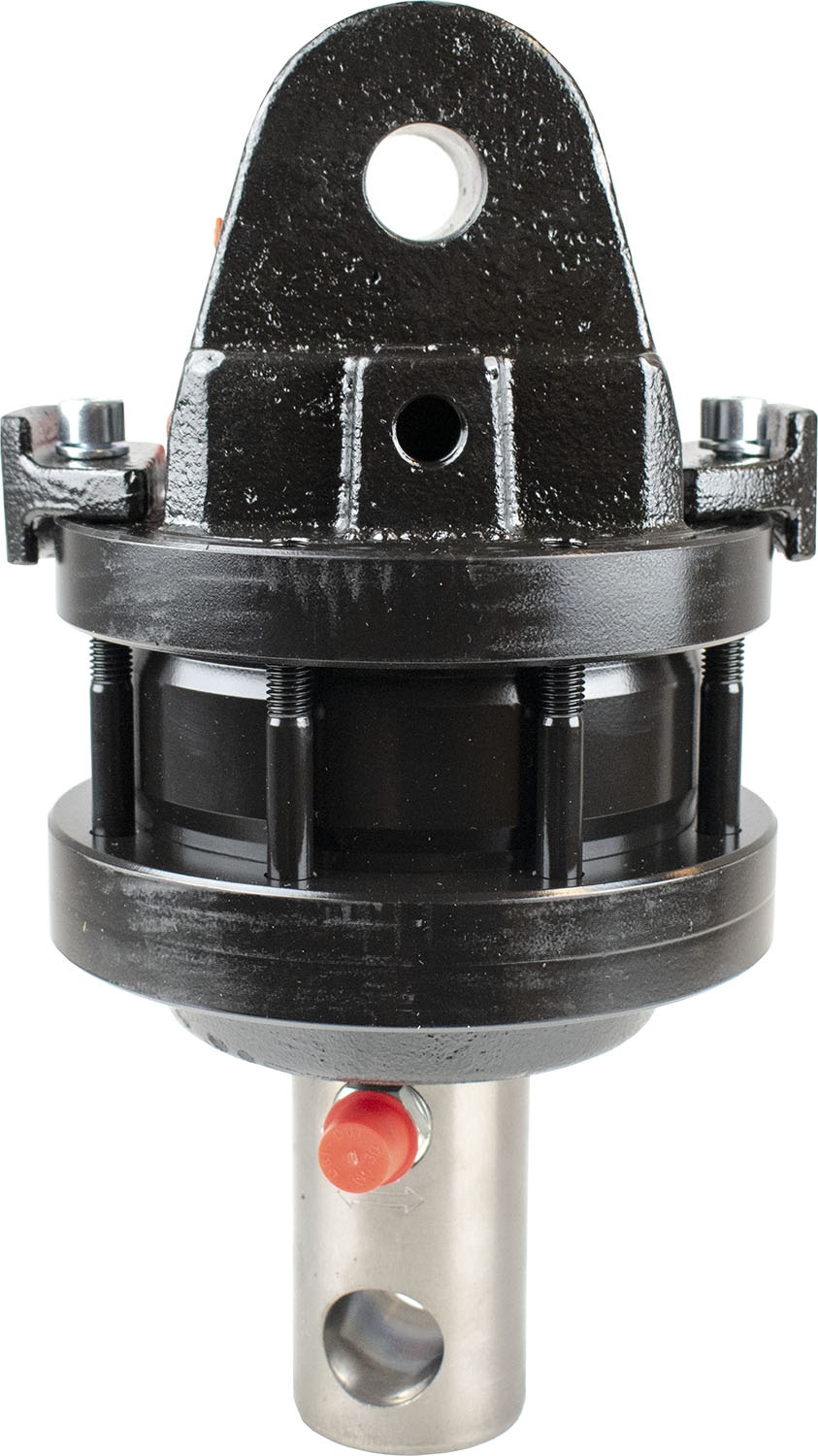

Rotator Baltrotors GR 46
- Rotator (rotary head) Baltrotors, type GR 46, with a lifting capacity of 4 T.
BALTROTORS ROTATOR GR46 4.5 TONS
The rotator of the renowned brand Baltrotors model GR46 has a maximum static lifting capacity of 4.5 tons and unlimited rotation. The rotating head features standardized dimensions to fit most cranes and attachments. Baltrotors products enjoy an extremely good reputation in the market due to their failure-free performance even when used in harsh working conditions. The rotator is designed to work with a truck crane and attachments such as grab for wood, bucket or pallet fork.
TECHNICAL SPECIFICATIONS
- Rotation: unlimited
- Maximum axial load capacity (static): 45 kN
- Maximum axial load capacity (dynamic): 25 kN
- Torque (at 25 MPa): 1100 Nm
- Recommended oil flow: 20 l/min
- Deadweight: 24 kg
- Upper mount (under the fastener): width - 73 mm, hole diameter - ø 25 mm
- Lower mount (attachment): pin diameter - ø 59 mm, hole diameter - ø 30 mm
MAXIMUM OPERATING PRESSURE
- Rotator <- R ->: maximum 25 MPa (G 3/8 inch)
- Opening graba/equipment<- G ->: maximum 20 MPa (G 3/8 inch)
- Closing graba/equipment-> G <-: maximum 30 MPa (G 3/8 inch)
TECHNICAL DRAWING
Similar to:
Formiko FHR 4.500 L, FHR 4.500 / L68, FHR 4.500 SF, FHR 4.500F68
Indexator GV 4
Kinshofer KM 04 S59-30, KM 04 S, KM 04 S63-30, KM 04 S68-30, KM 04 S68-30US, KM 04 S69-30, KM 04 F, KM 04 F140-30US, KM 04 F140-30V
Note: The technical and operational parameters of the product listed above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
