Multifunctional vehicle with a mono-segment snow plow, sand spreader and sweeper

ENGINE

- VM turbo diesel Euro 6
- 80 Kw/109 Km at 2,600 rpm, 420 Nm at 1,100 rpm
- fuel tank - 65 l

DRIVE

- all-wheel drive (4x4)
- hydrostatic drive system
- working speed (0-20 km/h)
- transport speed (0-50 km/h)
- rear differential lock
- all-wheel servo control system (4WS)
- 2 speed gearbox
- electronic regulation of engine operating speed
- 15" winter wheels on both axles

CABIN

- air suspension in driver's seat
- mechanical suspension in passenger seat
- heating
- air conditioning integrated with heating
- MP3 radio with Bluetooth, 2 speakers, wiring, antenna
- electric windshield heating
- heated exterior mirrors (2 pcs.)
- reversing camera
- phone holder and cup holder

HYDRAULIC SYSTEM

1.  hydraulic system 0-15 L/min
• Front plate connection, double acting with float function (750 kg)
• Two pairs of double-acting couplings in the front (ISO 16028-DN 10)
• One pair of connectors with floating function front or rear (ISO 16028-DN 10)
• One pair of connectors with rear float function (ISO 16028-DN 10)
• Single-acting tipping function (ISO 16028-DN 10)
• Single-acting front or rear coupling with float function (ISO 16028-
DN 10)  - for blocking the front axle suspension
• Quick connector "leaks front"  (ISO 16028-DN 12.5)
• Quick connector "leaks rear" (ISO 16028-DN 10)

2. hydraulic system 0-115 rpm
• Independent flow control 0-65 lpm front (ISO 16028-DN19
• Independent flow regulation 0-65 lpm rear (ISO 16028-DN12.5 )
• One pair of front connectors (maximum flow 0-115 lpm)
• Hydraulic oil tank capacity: 45 l

- standard hydraulics (gear pumps)
- "dry" type hydraulic connections (ISO 16028)

OTHER DETAILS

-- main battery ground switch (250A)
- cabin color RAL 2011
- working lighting
- permissible total weight: 5,500 kg
- gross load on each axle: 2,800 kg
- warranty 24 months or 2000 mth

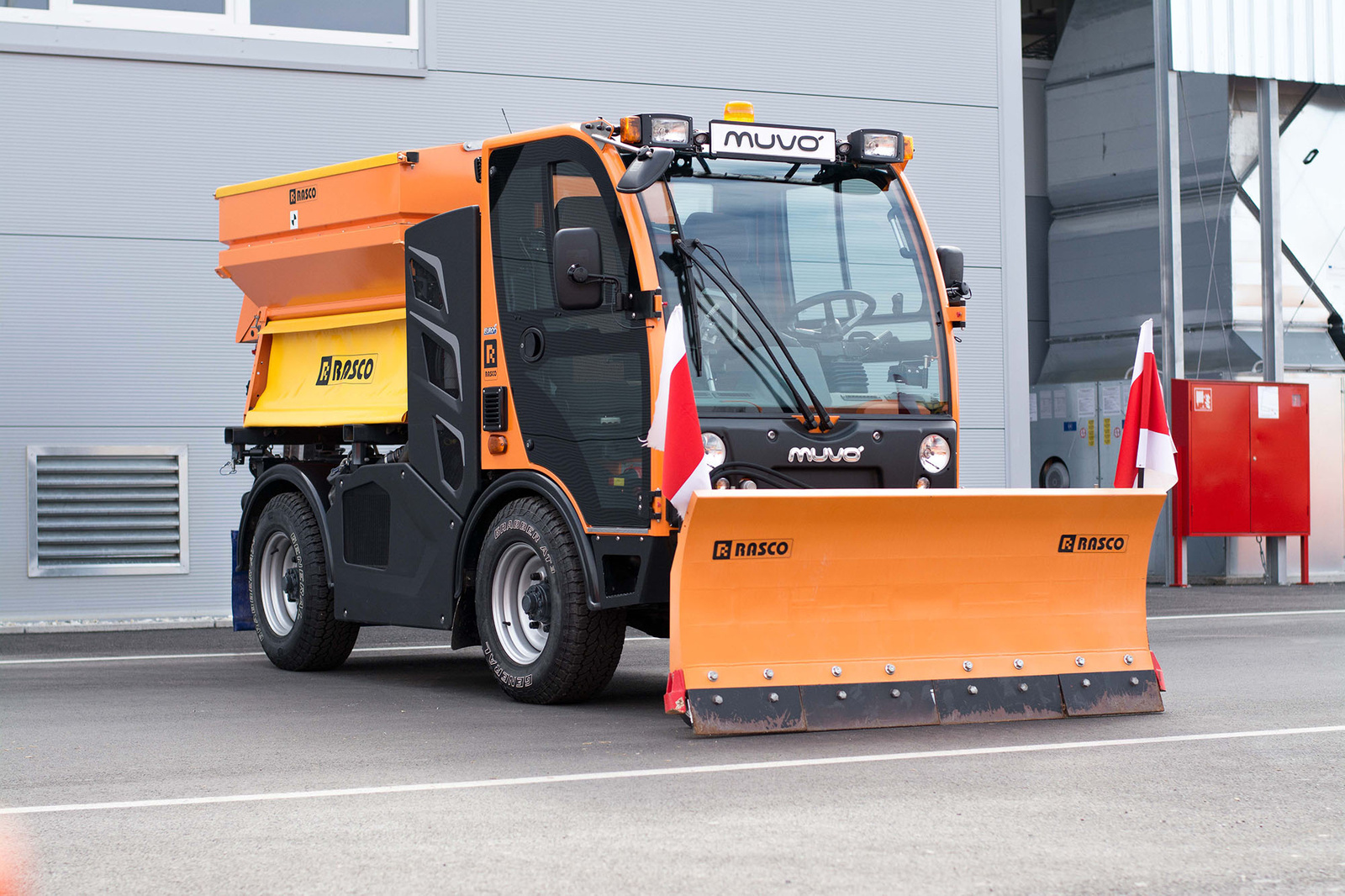

SNOW PLOW Bilo 1.6
-mono-segment plow wing 1600 mm
- hydraulic plow rotation left or right ± 30
- CE declaration of conformity, GS mark, safety mark and proof of product testing for compliance with statutory health and safety requirements

Solid X Spreader

- steel container
- durable construction
- tank capacity 1.2 m3
- dry material conveyor system
- dry material distribution system (distribution chute and stainless steel spinner)
-  spreading spinner1 - 6 m
- mechanism for manual adjustment of the spreading pattern
- EPOS 5 control unit
- CE certificate, declaration of conformity

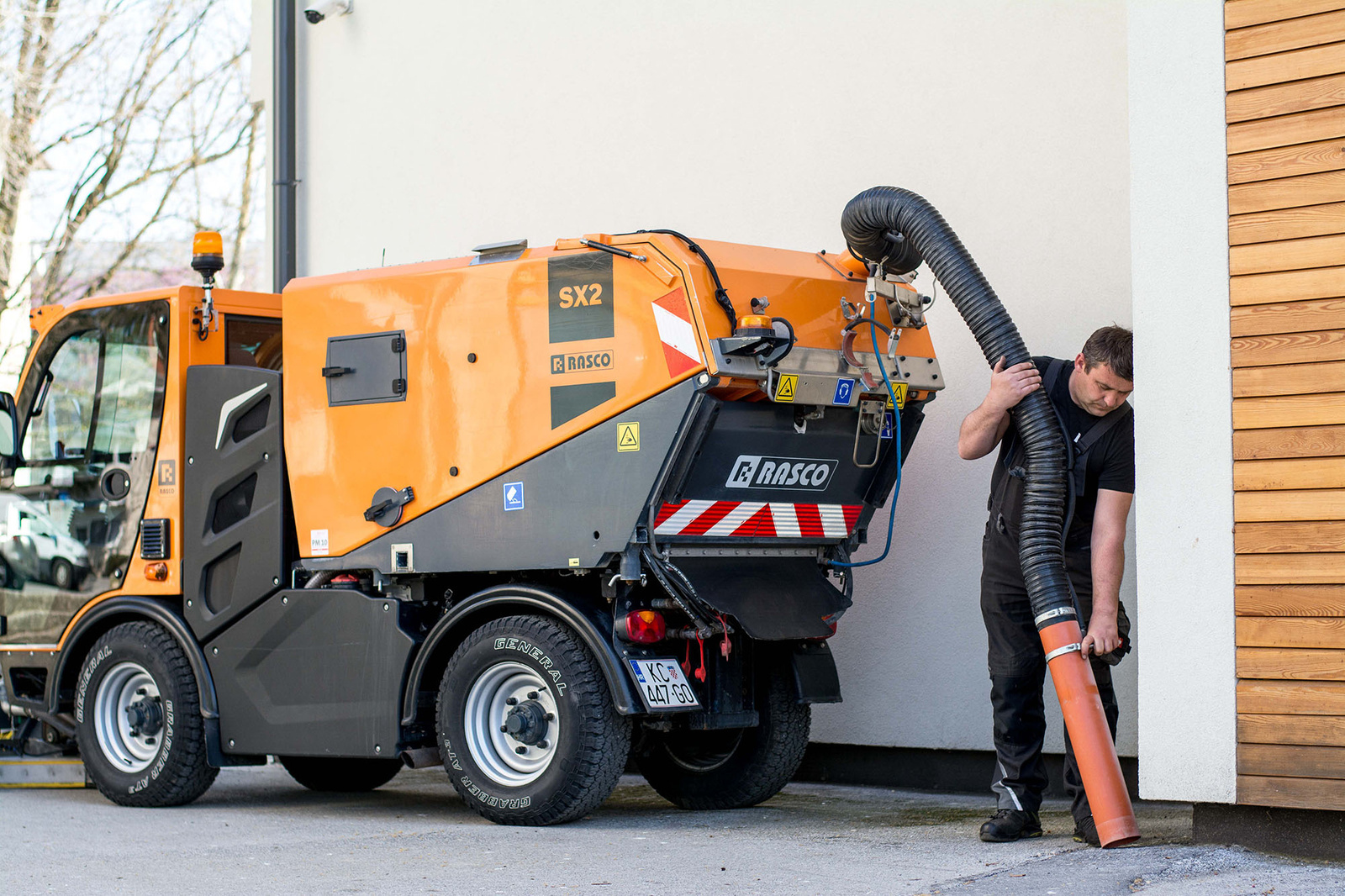

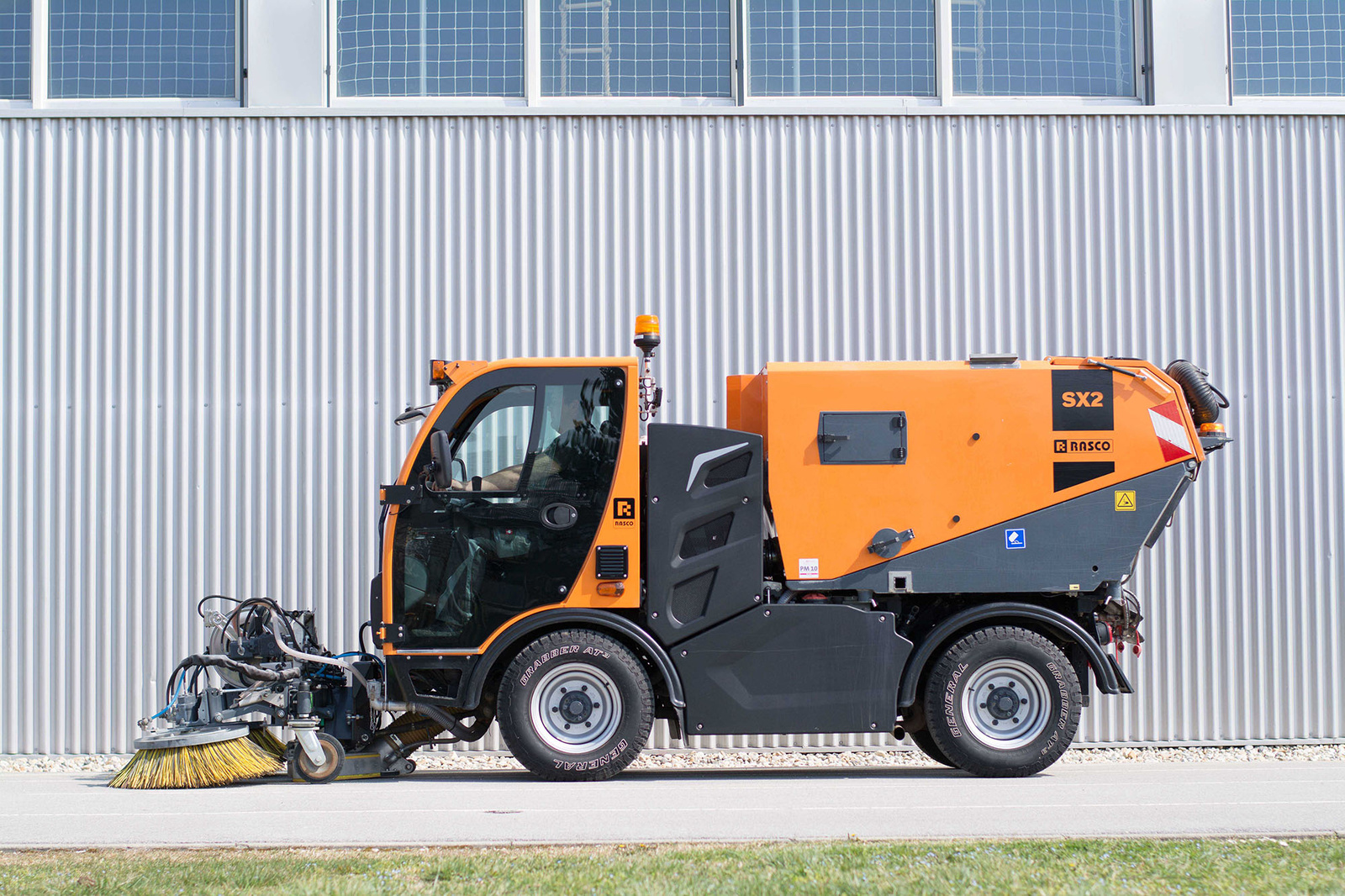

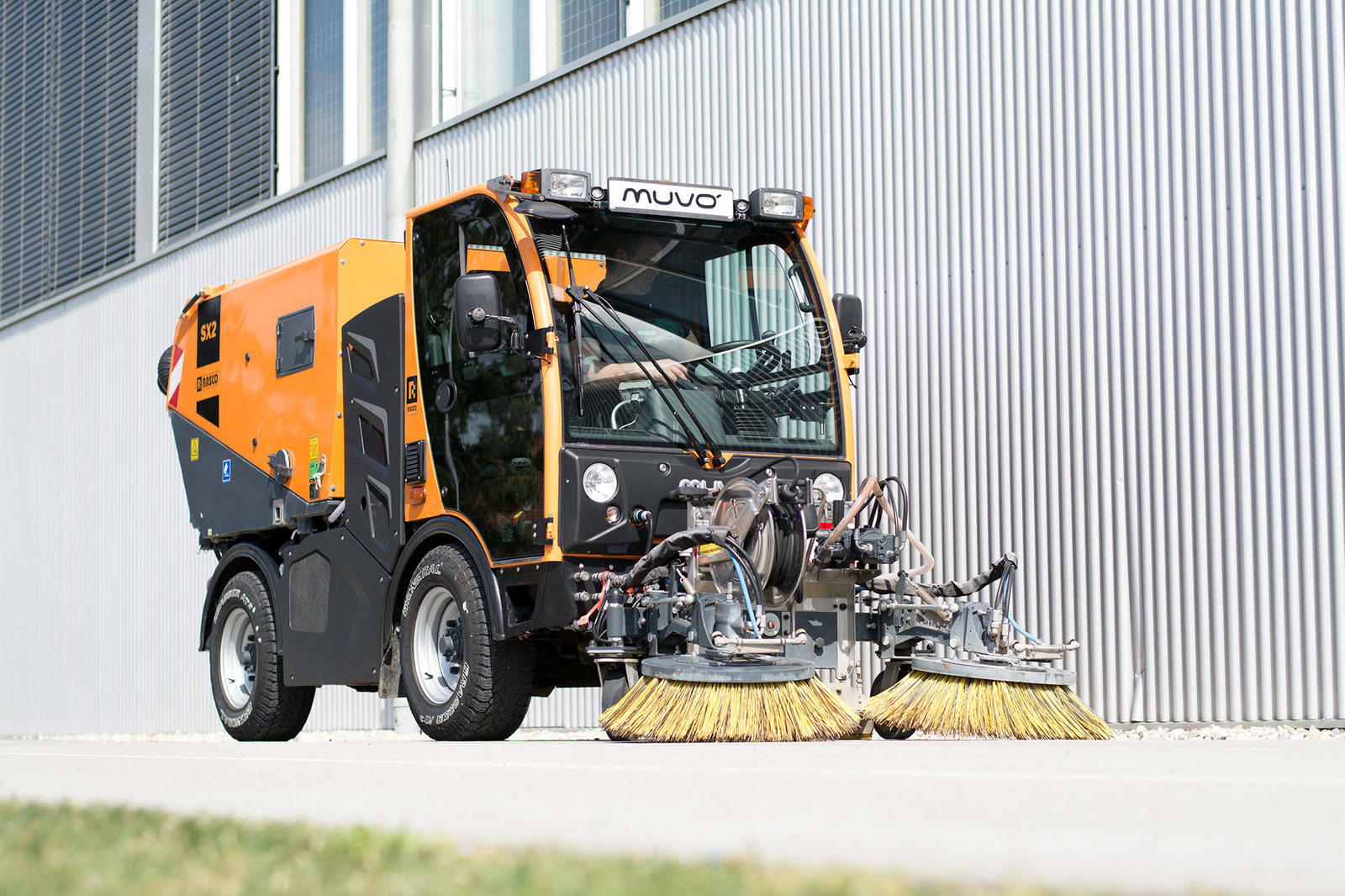

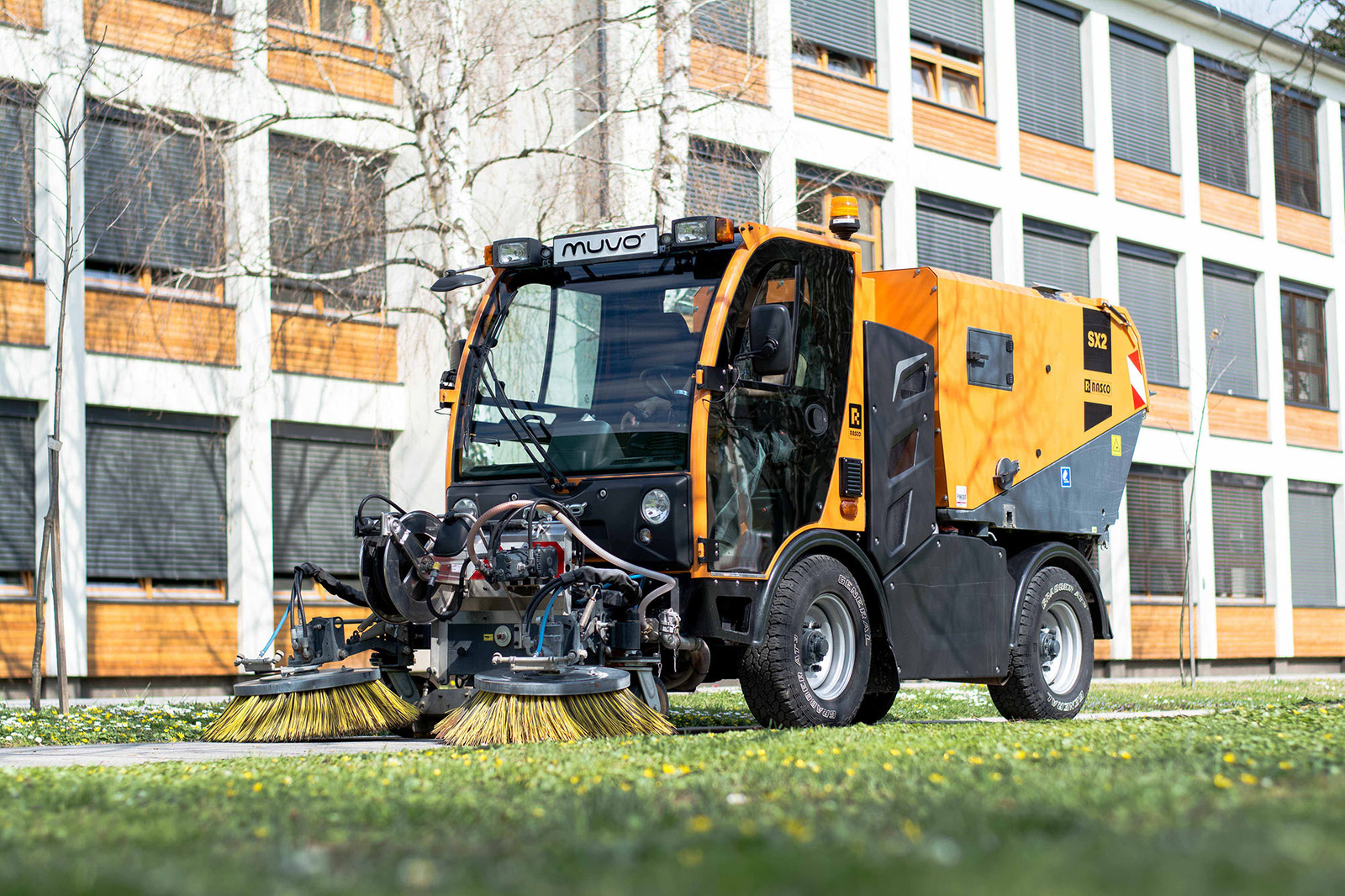

SX2 STREET SWEEPER

• Waste tank 1.6 m³
• drop height 1,450 mm
• front sweeping device with 2 brushes
• suction turbine
• control console in the vehicle cabin
• dirty water recirculation system
• leaf pipe
