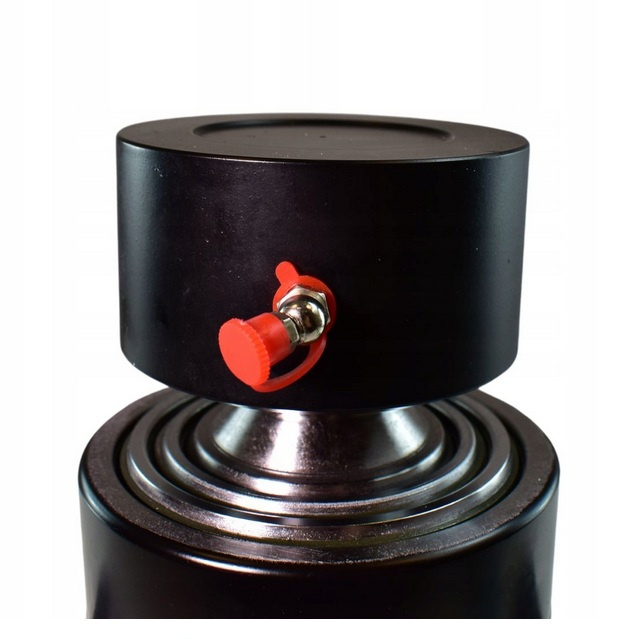

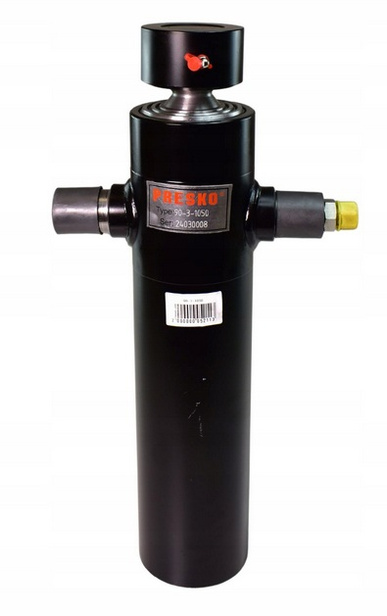

Cylinder PRESKO 9031050 under-chassis hydraulic cylinder with a stroke of 1050 mm, three-section, 6-metric-ton lifting capacity, chrome-plated sections.

PRESKO 1050mm hydraulic cylinder, three-section, 6-metric-ton lifting capacity, chrome-plated sections. 753700-1" width="800" height="1274">

HIGH-QUALITY PRESKO Cylinder.

Cylinder Telescopic, three-section. Each section is chrome-plated. Cylinder is ideal for installation in dump trucks and agricultural trailers.

PRESKO under-body cylinder with a stroke of 1726mm, 6-stages, lifting capacity of 10 metric tons, chrome-plated sections. 753700-1" width="600" height="597">

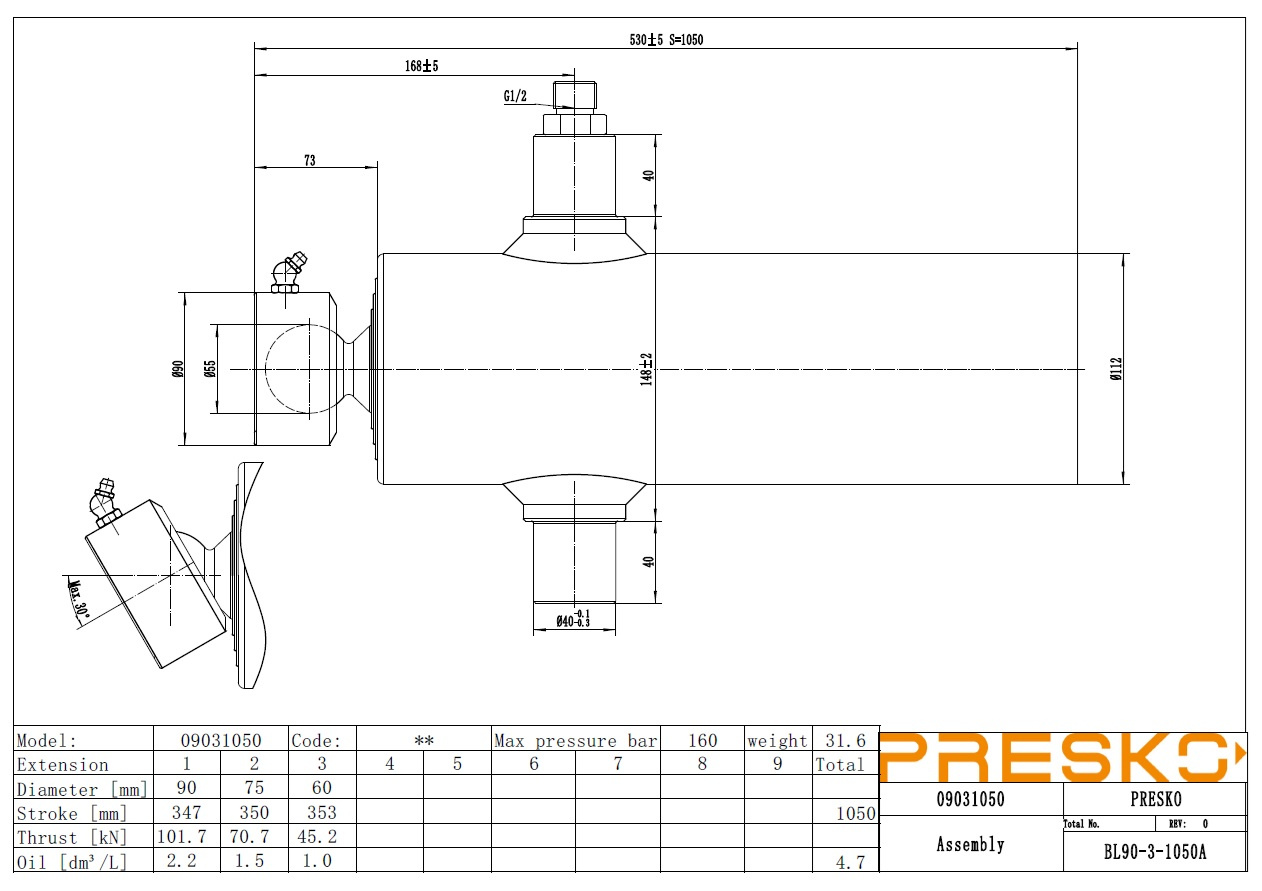

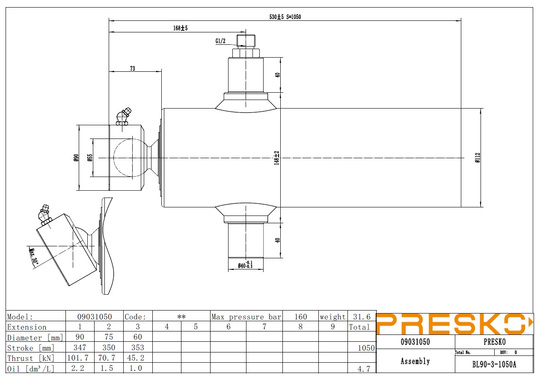

BASIC SPECIFICATIONS Tipping lifting capacity: 6 T Maximum operating pressure: 160 bar Stroke: 1050 mm Number of sections: 3 Operating oil front loader (permissible range): -40–100°C Outer diameter: 112 mm Collapsed height: 530 mm Spacing between mounting pins: 148 mm Typical application: dump truck Telescope finish: Chrome Mounting compatible withcylinders: A70040001 A60040001 Cradle compatible withcylinder: A5L060001 Similar to: 3104250903001

Note: The technical and performance specifications of the product listed above are for informational purposes only. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the specifications of the product supplied by the manufacturer. The source data is included in the manufacturer’s brochure, which can be downloaded from the “Downloads” tab (below).
