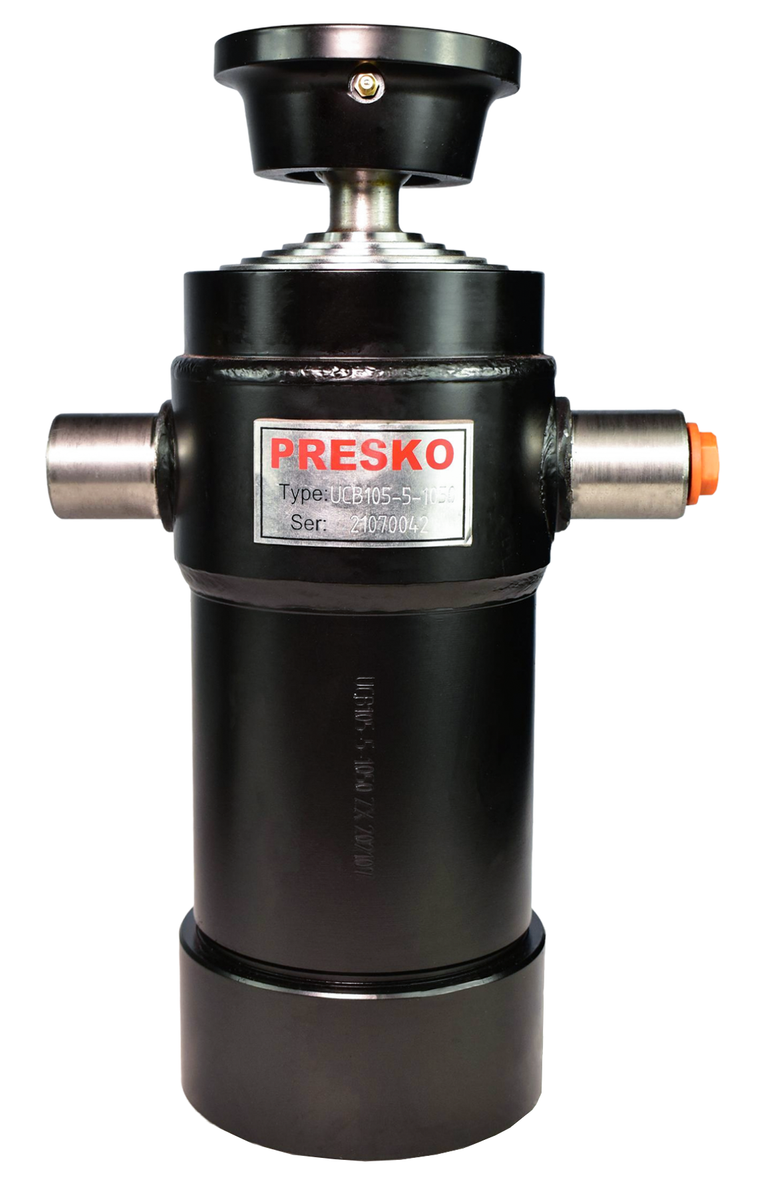

PRESKO Hydraulic Cylinder 1050 mm
- PRESKO Hydraulic Cylinder, underbody, stroke 1050 mm, 5 stages, with mounting brackets
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Underbody cylinder, type L-105, 5 stages
TECHNICAL DETAILS
- Tipper load 5-11 T
- Max. pressure 180 bar
- Stroke: 1050 mm
- Stages: 5
- Weight 29,26 kg
- Oil temperature: -40÷100° C
- Diameter: 130 mm
- Outer diameter of the base: 140 mm
- Folded height: 383 mm
- Spacing of fastening pins: 148 mm
- Application: tipper
- Telescope finish: Chrome plating
- Mounting: included

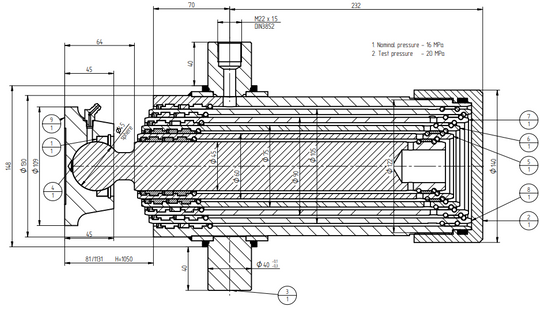

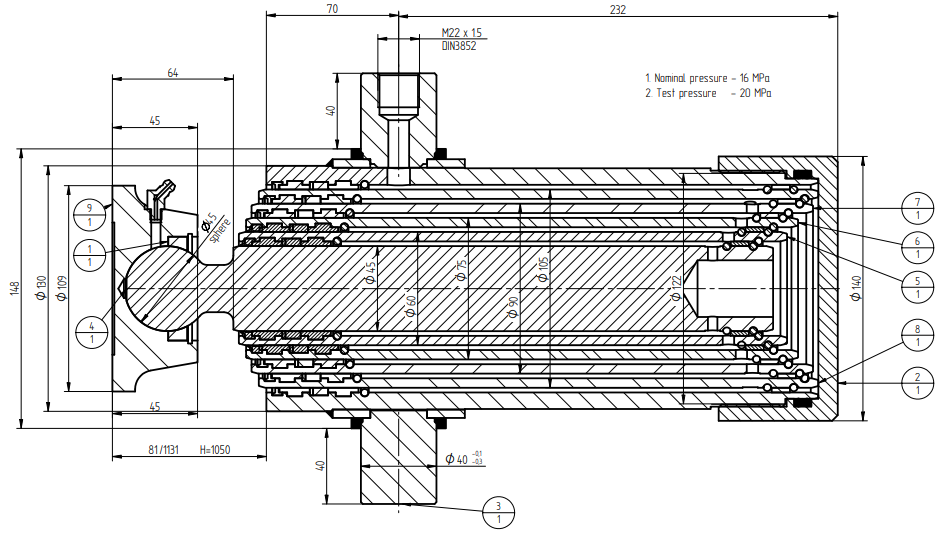

TECHNICAL DRAWING
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
To download
Zasoby dotyczące bezpieczeństwa i produktów
Brand
Entity responsible for this product in the EU
HEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄMore
ProducerHeweaSp. z o.o.Address:
Przemysłowa 1Postal code: 55-095City: MirkówCountry: PolskaPhone number: 71 345 60 00E-mail: info@hewea.com
Responsible entityHEWEA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄAddress:
Przemysłowa 1Postal code: 55-095City: BykówCountry: Polska
Symbol
10551050
Producer code
5904726847299
