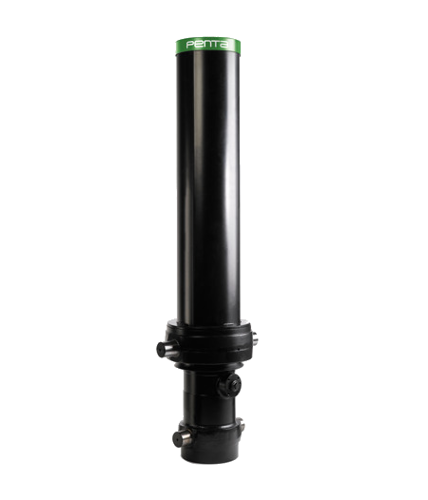

Cylinder Penta PFC1870 8126 174 5
- Penta front cylinder, type PFC1870 8126 174 5, five-member.
Penta tipping front cylinder, type PFC 1870 8126 174 5, five-member.
BASIC DATA
| Tipping capacity |
42÷79T |
| Maximum working pressure |
200 bar |
| Stroke | 8126 mm |
| Number of members |
5 |
| Own weight |
454 kg |
| Temperafront loader oil operation (permissible range) |
-40÷100° C |
| Absorption | 121,3 l |
| Outer diameter | 244.5 mm |
| Height after folding | 2007±5 mm |
| Arbor spacing | 328 mm |
| Typical application | semitrailer-trailer |
| Country of origin | Italy |
| Manufacturer's website | www.hspenta.it |
Important note: The cylinder can be used interchangeably instead of:
- Hyva, type FV 169-5-8130
- Binotto, type MFC 165 5 8050
Note: The technical and operational parameters of the product listed above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
