Cylinder telescopic hydraulic trailer tipping 1050mm 5 tons 5 sections
- Cylinder telescopic hydraulic trailer tipping 1050mm 5 tons 5 sections
Cylinder telescopic hydraulic trailer tipping 1050mm 5 tons 5 sections

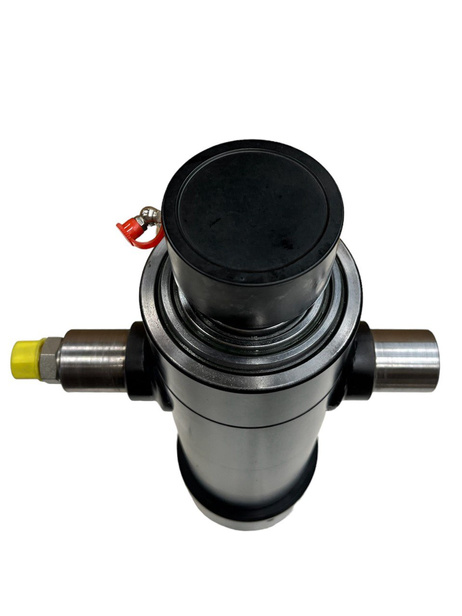

Cylinder PRESKO 1050mm CHROMINATED TELESCOPE
Cylinder telescopic, 5 sections. Each section covered with a layer of chrome. Cylinder ideally suited for installation in small 3.5dmc dump trucks as well as farm trailers and kipper car trailers.
|
TECHNICAL SPECIFICATIONS
- Tipping capacity: 5 T
- Maximum working pressure: 180 bar
- Stroke: 1050 mm
- Number of members: 5
- Diameter of first section: 90 mm
- Temperafront loader oil operation (permissible range): -40÷100° C
- Absorption capacity: 3.6 l
- Outer diameter: 110 mm
- Height when folded: 373 mm
- Spacing of fixing pins: 148 mm
- Typical application: dump truck
- Telescope finish: Chrome
Mounting suitable for cylinder:
A70040001
A60040001
Cradle matching cylinder:
A5L060001
|
|
Advantages of Cylinders PRESKO:
- chrome-plated weatherproof sections;
- best price/quality ratio;
- proven in harsh working conditions;
Application cylinder:
- Tippers in trucks types 3.5 DMC
- Agricultural trailers
- Unloading boxes
- Loading platforms
|
